Talk to an EngineerTechnical Specifications
| Cell Type | Monocrystalline PERC (half-cut, 9 busbar) |
|---|---|
| Max Power (Pmax) | 200W |
| Voltage at Pmax (Vmp) | 20.4V |
| Current at Pmax (Imp) | 9.8A |
| Open Circuit Voltage (Voc) | 24.3V |
| Short Circuit Current (Isc) | 10.4A |
| Module Efficiency | 18.1% |
| Max System Voltage | 600V DC |
| Connector Type | MC4 |
|---|---|
| Dimensions | 1650 x 670 x 35 mm (64.96 x 26.38 x 1.38 in) |
| Weight | 12.0 kg (26.5 lbs) |
| Wind / Snow Load | 2,400 Pa (50 psf) / 5,400 Pa (113 psf) |

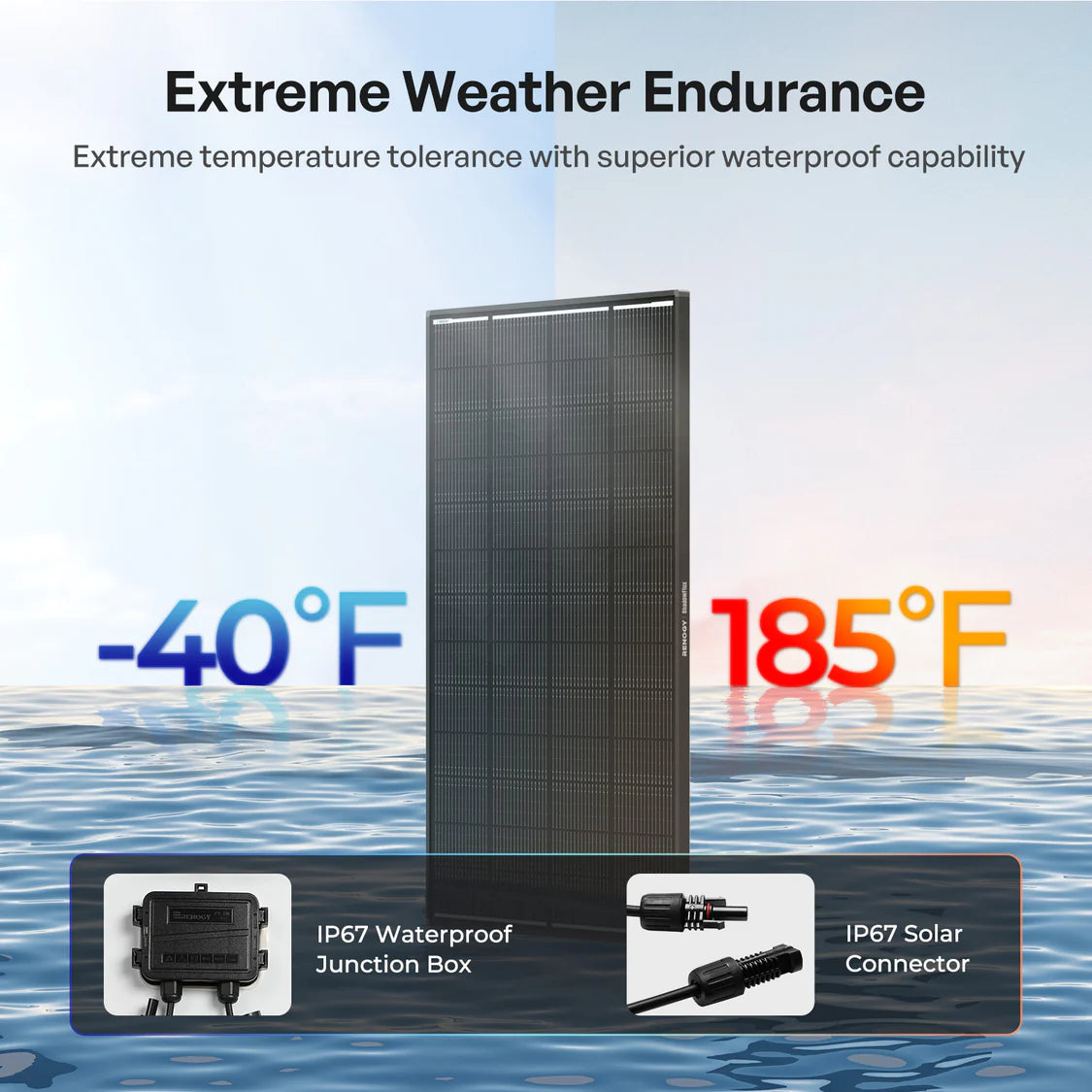

| Operating Temp | -40°C to +85°C |
| Certifications | UL 1703 |
| Warranty | 10-year workmanship, 25-year 80% output |

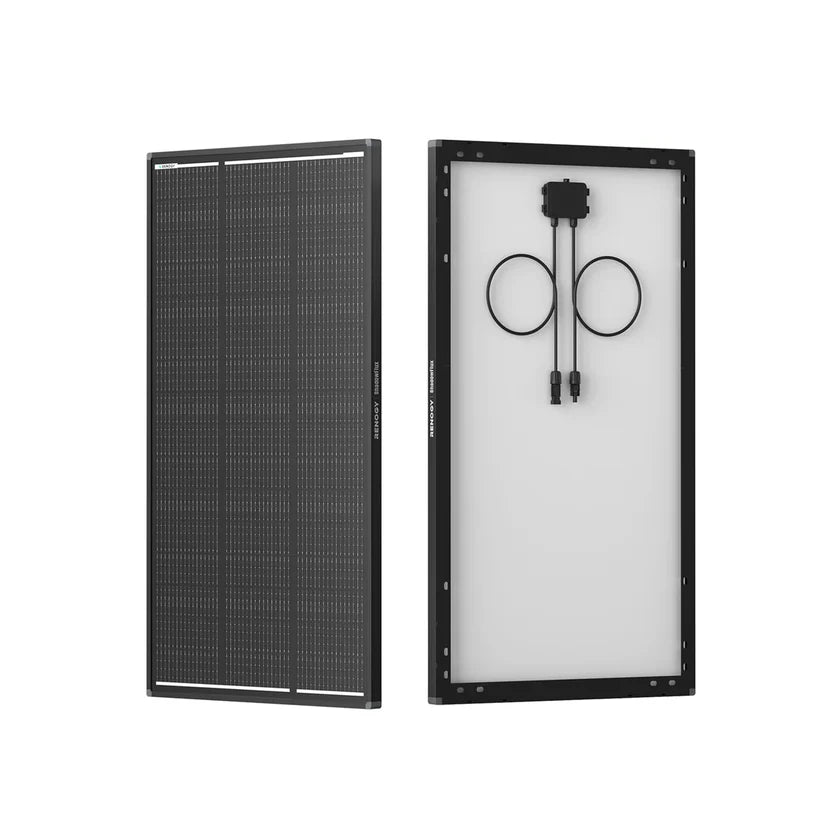

200W monocrystalline PERC solar panel with MC4 connectors, 18.1% efficiency, and 600V DC max system voltage.

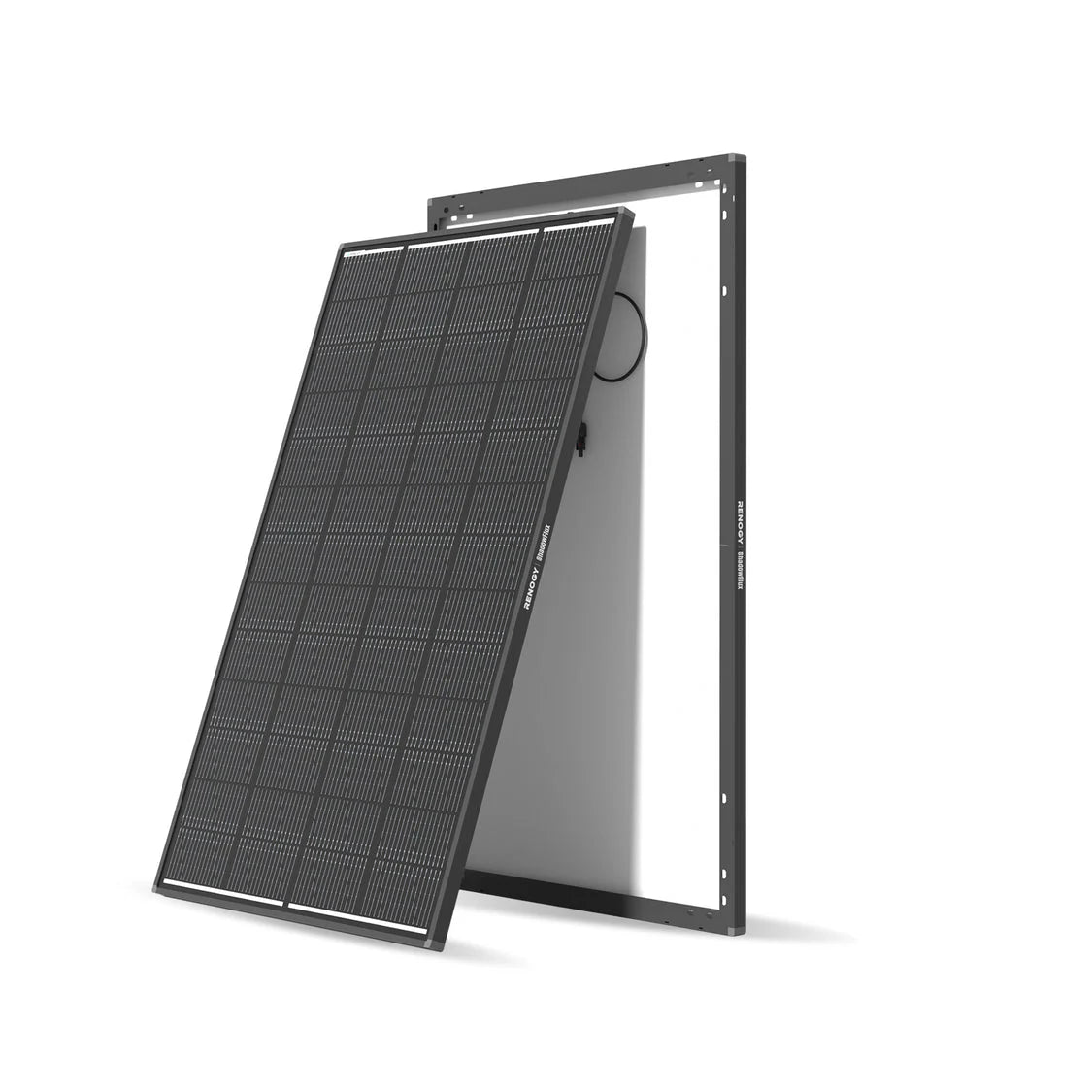

The Renogy 200W 12V monocrystalline solar panel uses half-cut PERC cells with 9-busbar technology to deliver 200W peak power at 18.1% module efficiency. The 20.4V Vmp output is optimized for 12V battery charging through MPPT or PWM charge controllers. MC4 connectors provide weatherproof, tool-free series and parallel connections.

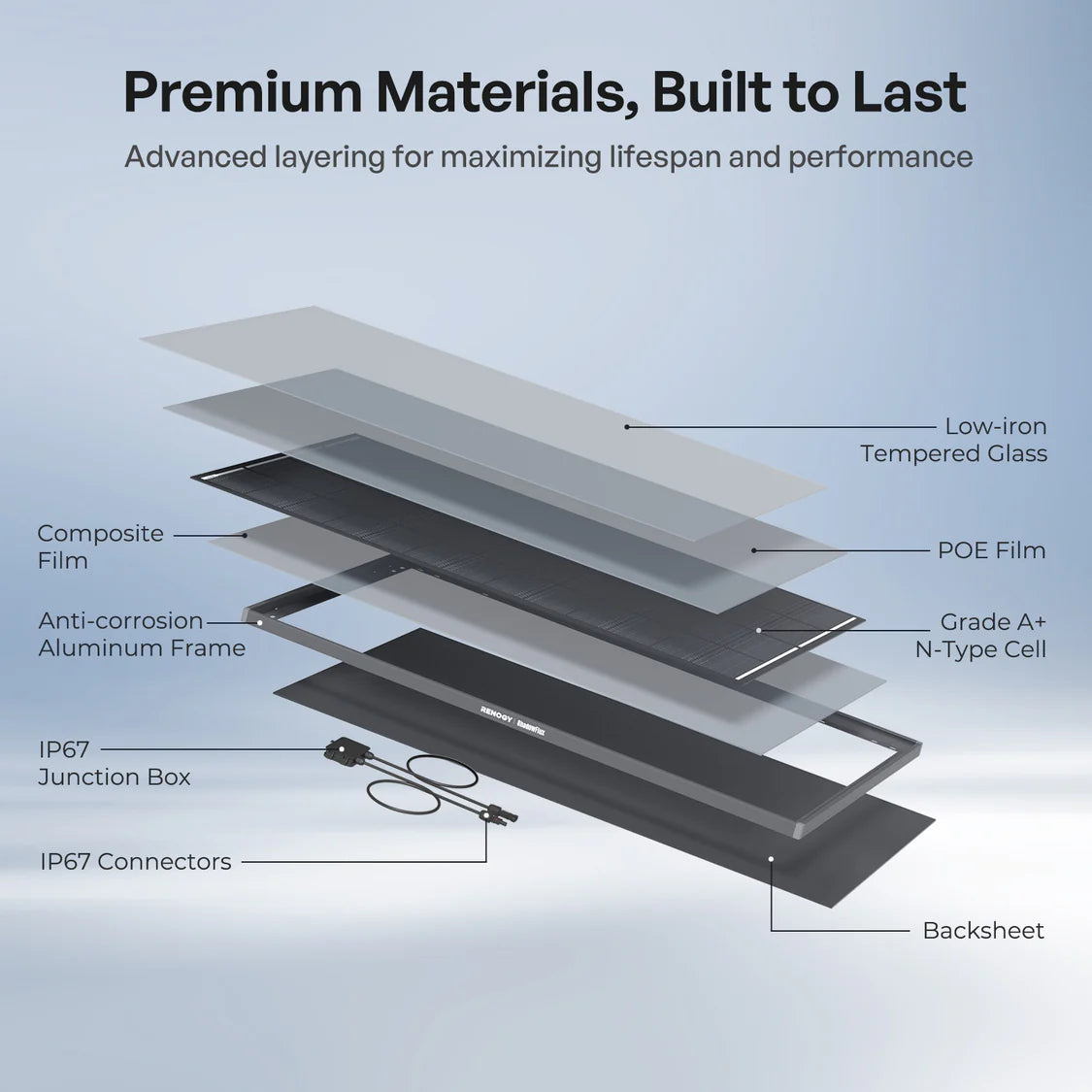

3.2mm tempered glass front, anodized aluminum frame, and IP65-rated junction box withstand 2,400 Pa wind loads and 5,400 Pa snow loads. Operating temperature range of -40°C to +85°C. 600V DC maximum system voltage allows series stringing for higher-voltage MPPT controllers.
UL 1703 certified. 10-year workmanship warranty with 25-year 80% output performance guarantee. Compatible with all Victron SmartSolar MPPT charge controllers in Alchemy power systems.
