Talk to an EngineerTechnical Specifications
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
|---|---|
| Cell Model | EVE MB31 - Grade A (8S) |
| Capacity | 314Ah / 8.04 kWh |
| Nominal Voltage | 25.6V |
| Charge Voltage | 28.4 - 29.2V (CC/CV) |
| Max Continuous Discharge | 200A (160A recommended) |
| Max Continuous Charge | 100A (60A recommended) |
| Discharge Cutoff Voltage | ~20.0V |
| Low Temp Charge Protection | Yes (BMS + Heater) |
| BMS | Daly Smart BMS (8S/24V) |
| Active Balancing | Yes (Daly Active Balancer) |
|---|---|
| Parallel Support | Yes (Daly Parallel Module) |
| Protections | OV, UV, OC, SC, OT, LT |
| Weight | 115 lbs |
| Dimensions (L x W x H) | 20.55 x 14.37 x 9.13 in |
| Enclosure | Plastic |
| Power Connection | M8 (threaded inserts and bolts) |
| Intended Applications | Off-Grid, Cold-Weather, Lightweight |
| Manufactured In | USA |
| Serviceability | Yes (Bolted Enclosure) |
Heated • Active Balancing • CAN/RS485 • Assembled in Houston, TX

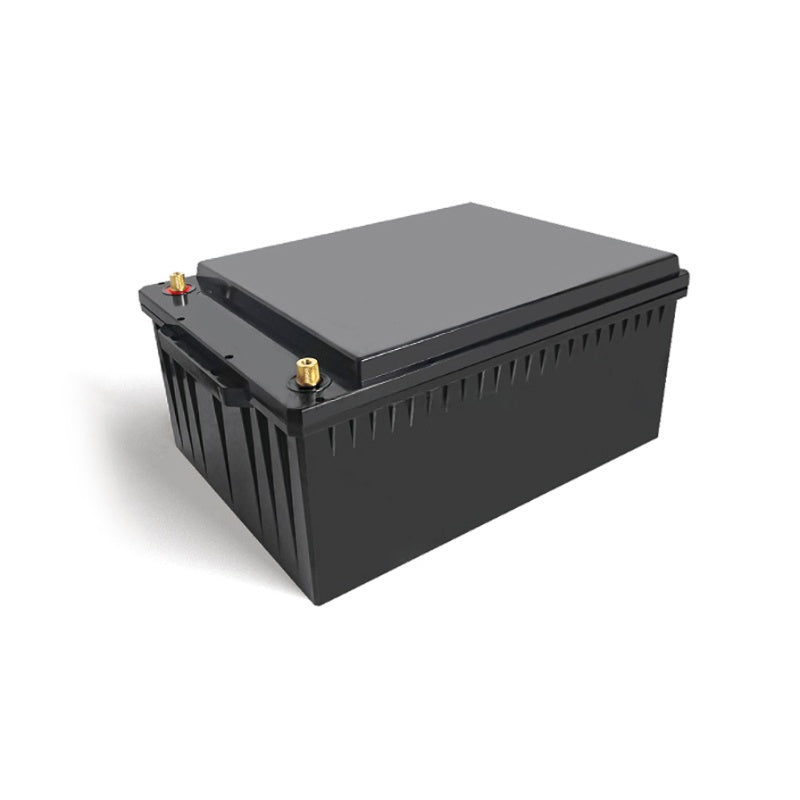

The Alchemy 24V 314Ah LiFePO₄ battery is a high-capacity energy storage system engineered for off-grid, mobile, and backup power applications. Built with Grade-A prismatic cells, an advanced BMS, and an integrated cold-weather heating system, it delivers dependable performance in demanding real-world environments.
Key Features
- ~8.0kWh usable energy (314Ah at 25.6V nominal)
- Automated internal heating for safe charging below freezing
- Active-balancing BMS for improved efficiency and long cycle life
- 3,000+ cycles at 80% depth of discharge
- Full protection suite: over-charge, over-discharge, over-current, short-circuit, and temperature protection
- RS485 and CANBus communication for monitoring and system integration
Assembled and Tested by Alchemy Industrial
Each battery is assembled and tested at our Houston, TX facility. This includes:
- Full electrical inspection
- Capacity and balance verification
- BMS protection and communication testing
- Heating system activation testing
Every unit must meet our performance and reliability standards before shipping.
Cold-Weather Heating System
Lithium batteries cannot safely charge below freezing. This battery includes a built-in thermal management system to enable reliable cold-weather operation.
- Heating automatically activates as cell temperatures approach 0°C
- Prevents lithium plating and cold-temperature charge damage
- Brings the pack to a safe charging temperature before accepting current
Ideal for winter climates, year-round mobile systems, cabins, trailers, and outdoor off-grid installations.
Safety and Construction
- Lightweight plastic enclosure
- Isolated wiring and busbar layout
- Vibration-resistant design for mobile and industrial applications
Intended Use
Designed for:
- Off-grid power systems
- Mobile applications (RVs, vans, trailers, work vehicles)
- Cold-weather deployments
- Backup and standalone energy storage
Not intended for grid-tied residential ESS applications requiring UL-listed certification. Installers are responsible for meeting local electrical codes.
Warranty
2-year limited warranty covering defects in materials, assembly, BMS performance, heating system operation, and overall battery function under normal use.
