Talk to an EngineerTechnical Specifications
| Type | Battery ON/OFF disconnect switch |
|---|---|
| Continuous Current | 275 A |
| 60-min Rating | 455 A |
| Cranking Current | 1,250 A |
| Max Voltage | 60 V |
| Terminals | M10 (9.53 mm) tin-plated copper |
|---|---|
| Ignition Protection | ISO 8846 / SAE J1171 |
| Weight | 0.2 kg |
| Warranty | 5 years |
| Certifications | CE |

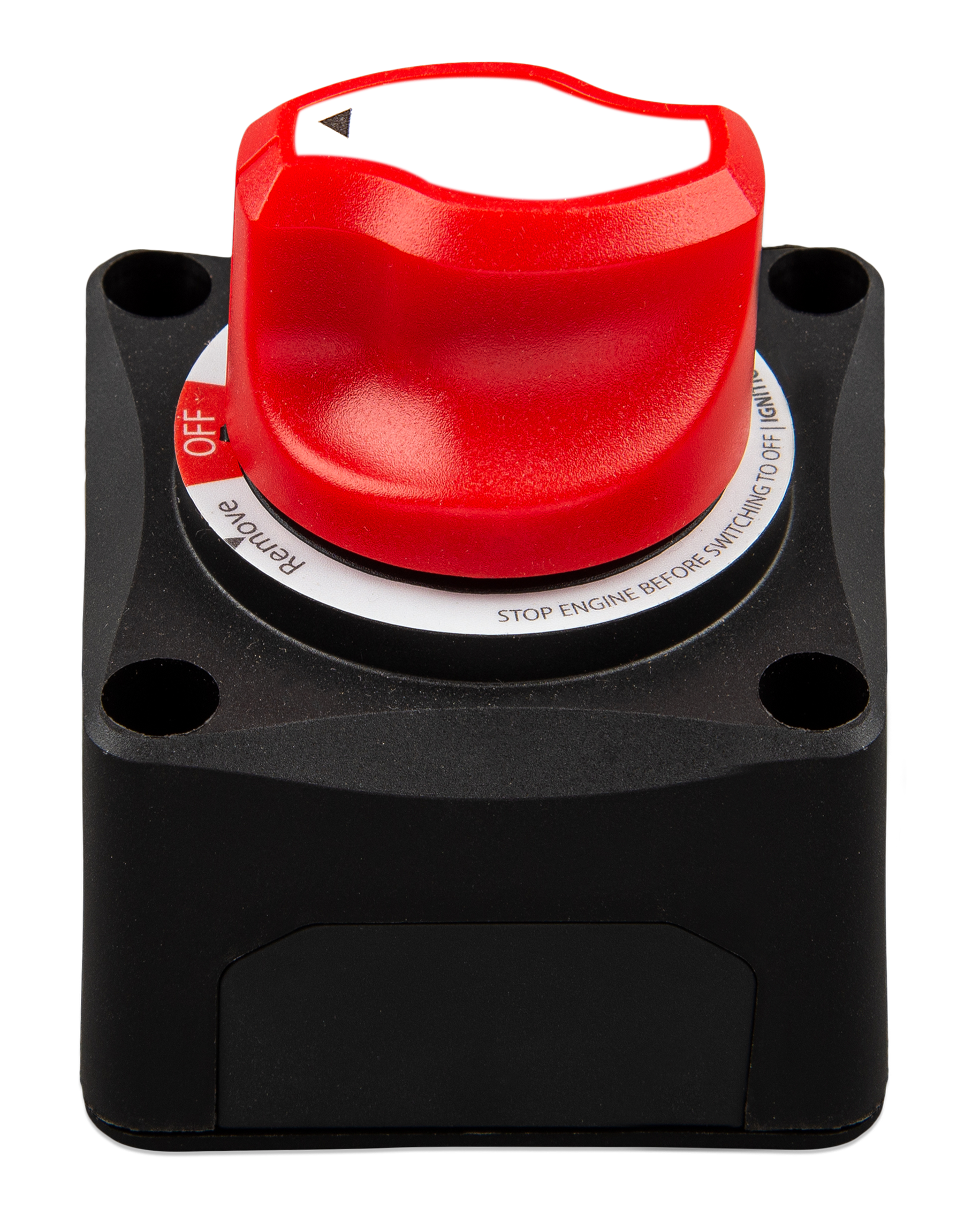

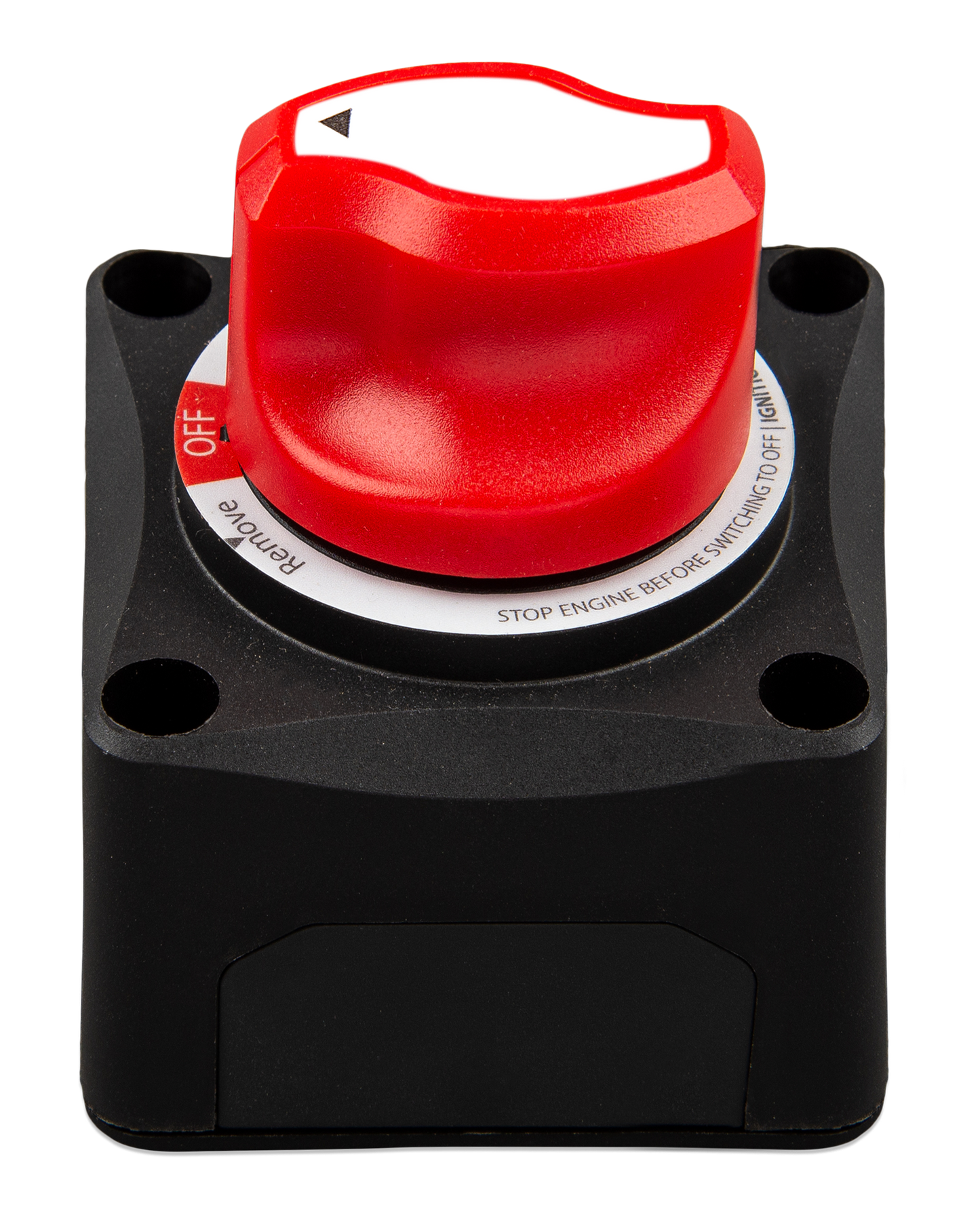

Heavy-duty ON/OFF battery switch rated for 275A continuous.
The Victron Battery Switch lets you manually disconnect the battery from the DC system for maintenance or safety.
Rated for 275A continuous operation with a simple ON/OFF action.
Used in Alchemy industrial power systems for safe battery isolation and disconnection.
