Talk to an EngineerTechnical Specifications
| Type | MPPT solar charge controller |
|---|---|
| Battery Voltage | 12V / 24V auto-select (48V on larger models) |
| Rated Charge Current | 10A to 100A (model dependent) |
| Max PV Voltage | 75V to 250V (model dependent) |
| Max Efficiency | 98–99% |
| PV Connection | MC4 or screw terminals (model dependent) |
| Communication | VE.Direct (VE.Can on larger models) |
|---|---|
| Protection Rating | IP43 electronics / IP22 connections |
| Weight | 0.5 kg to 4.5 kg (model dependent) |
| Warranty | 5 years |
| Certifications | UL 1741, CSA C22.2, EN/IEC 62109, CE |
Efficient, budget-friendly MPPT solar charge control from Victron Energy.

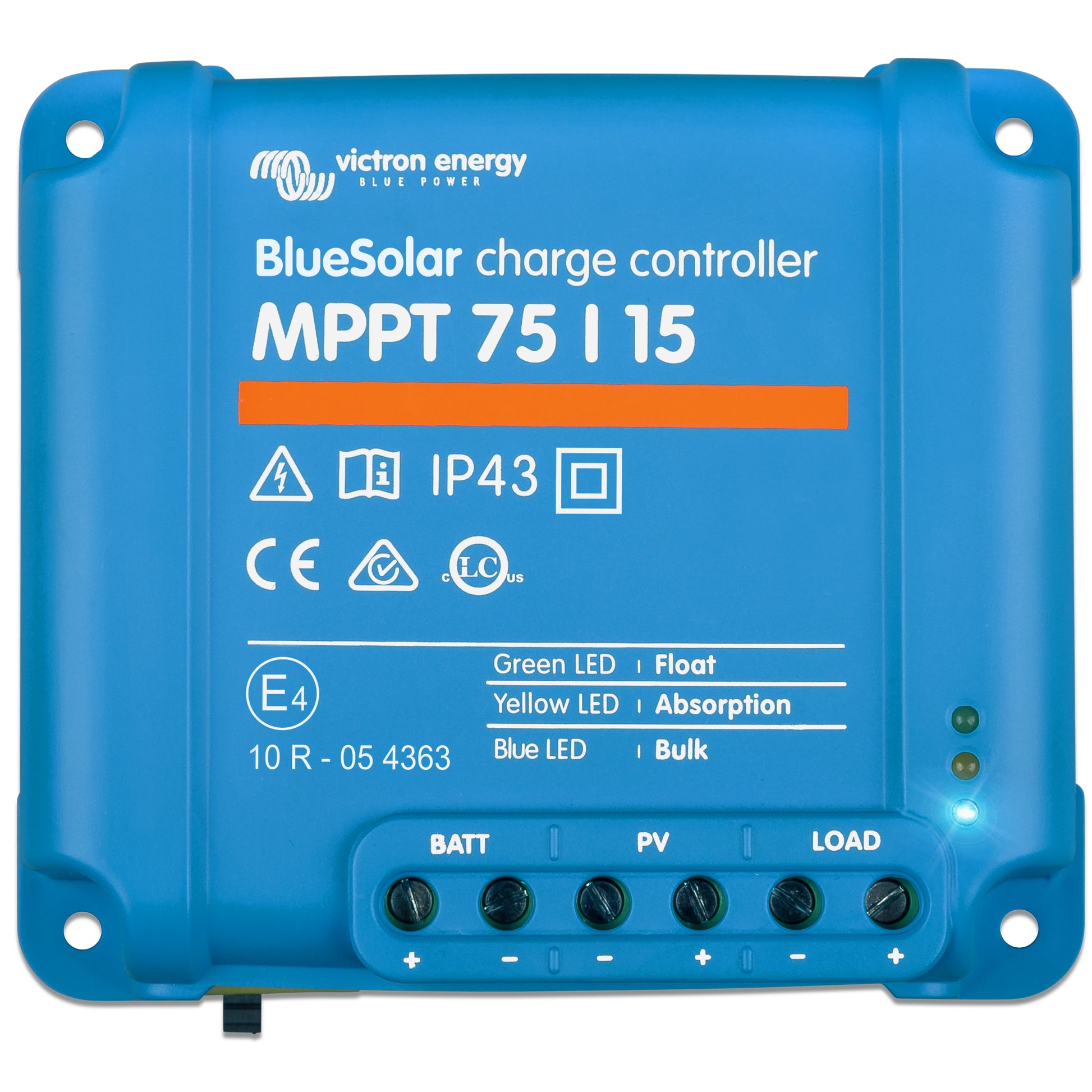

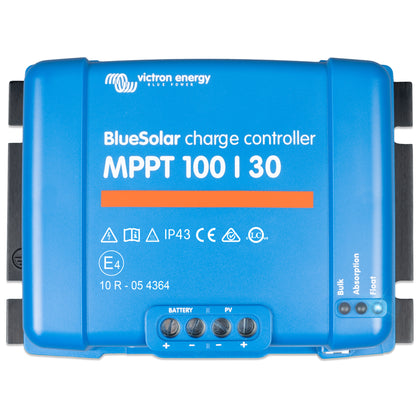

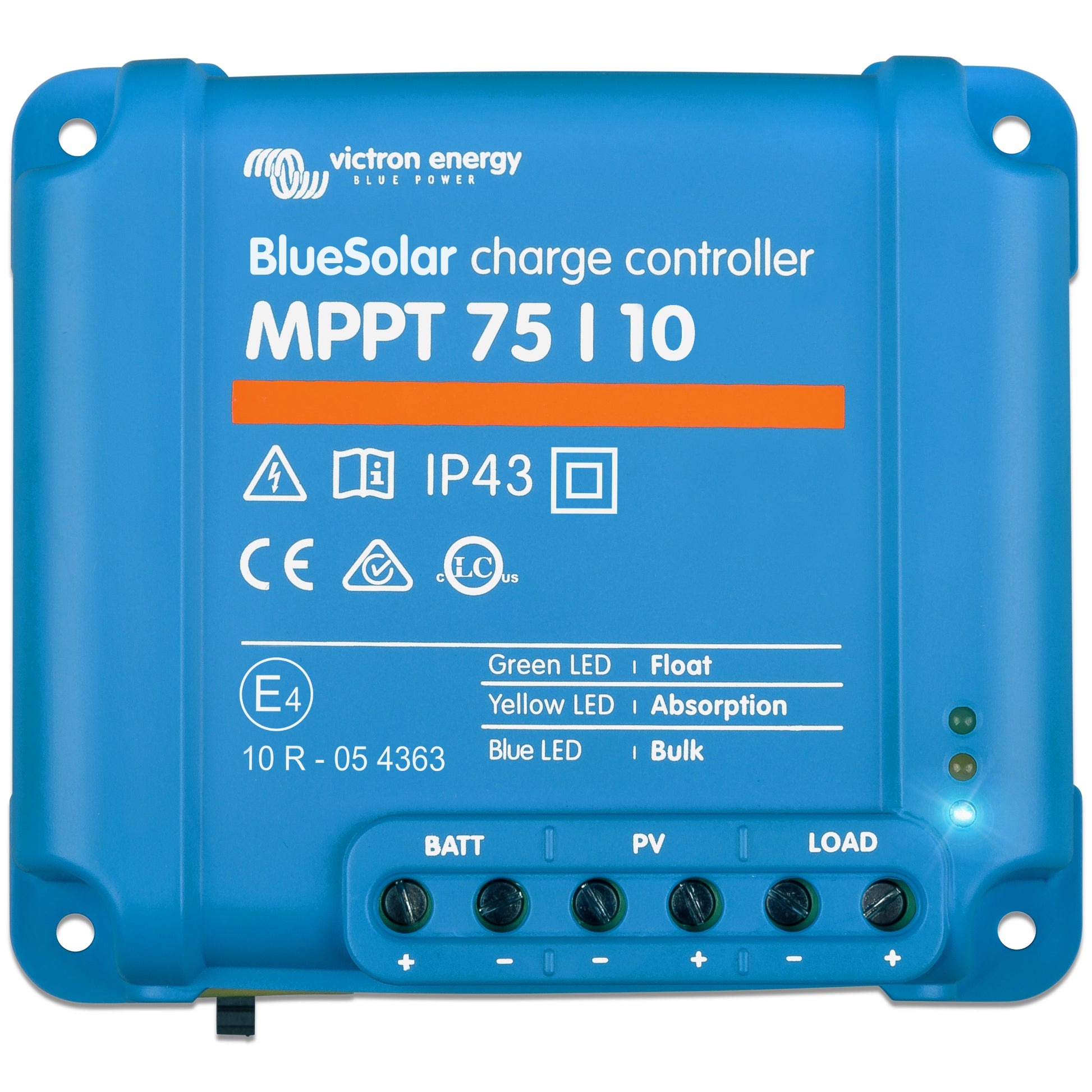

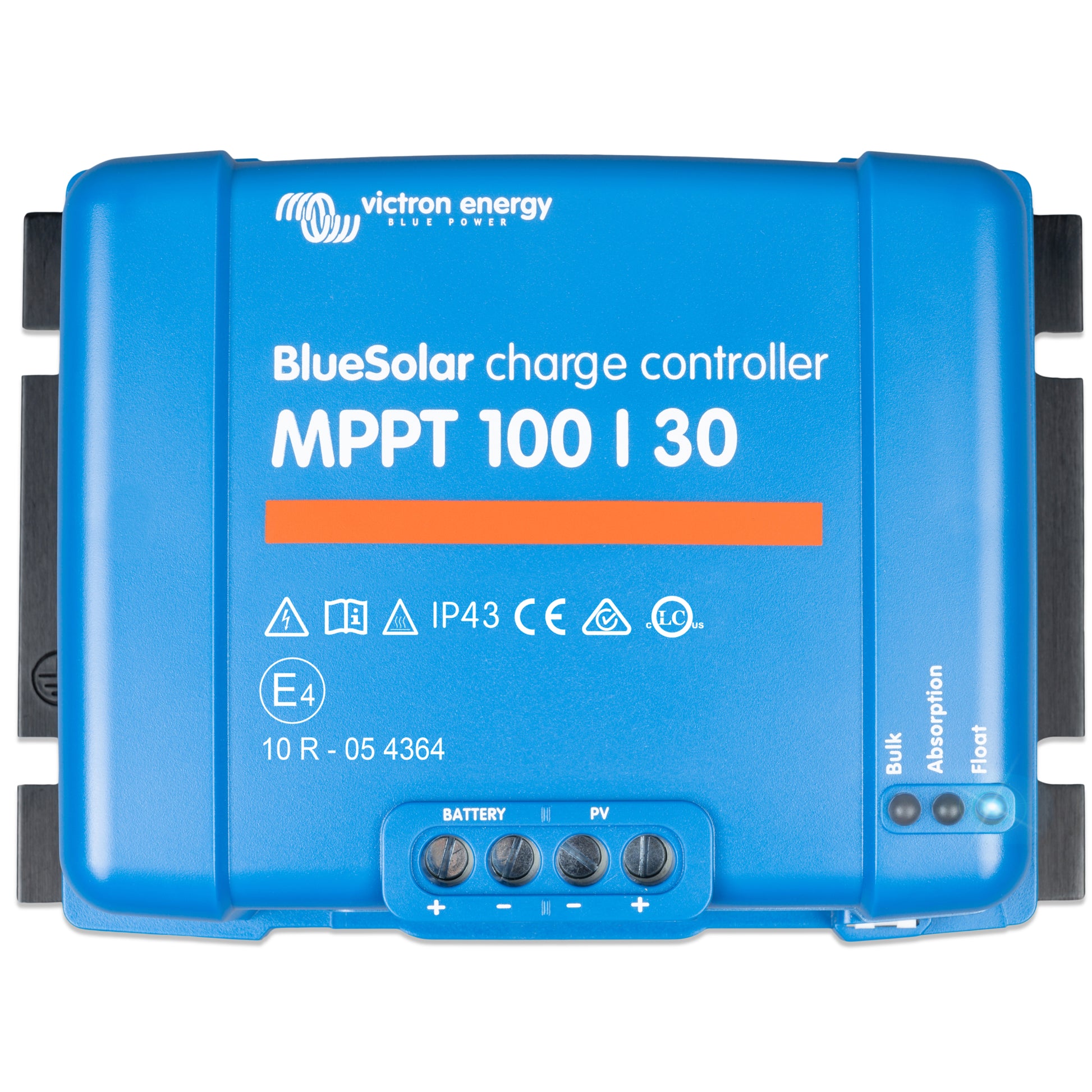

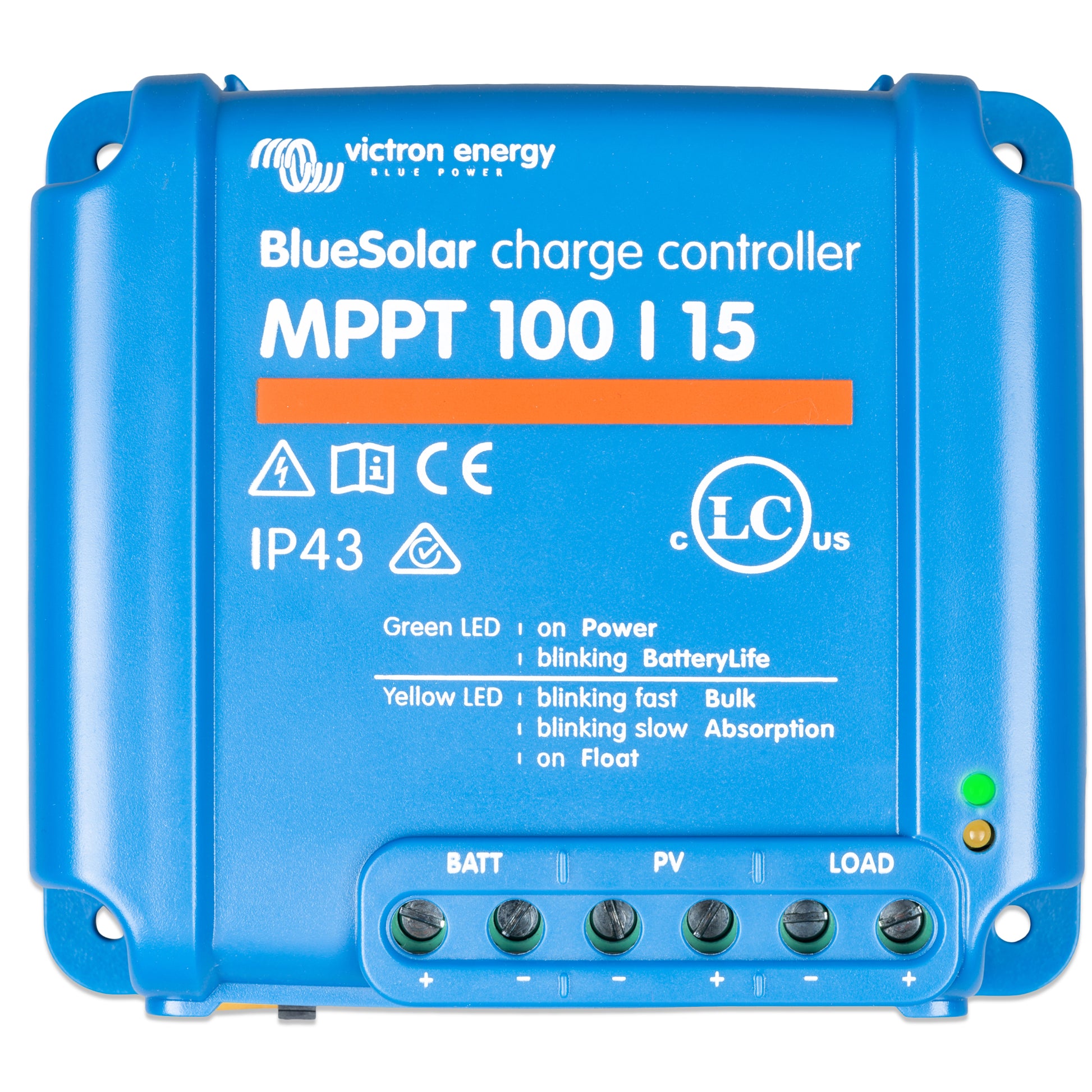

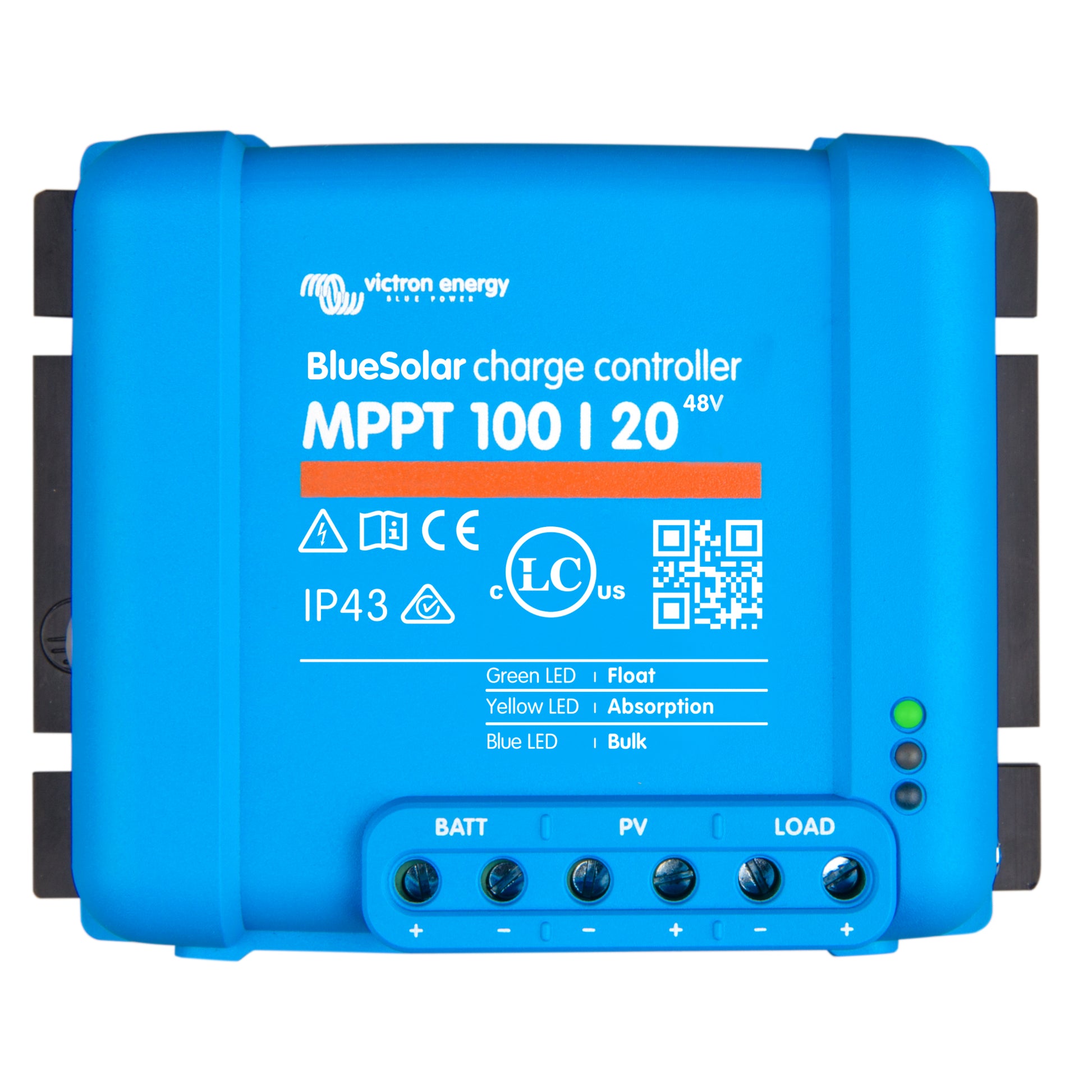

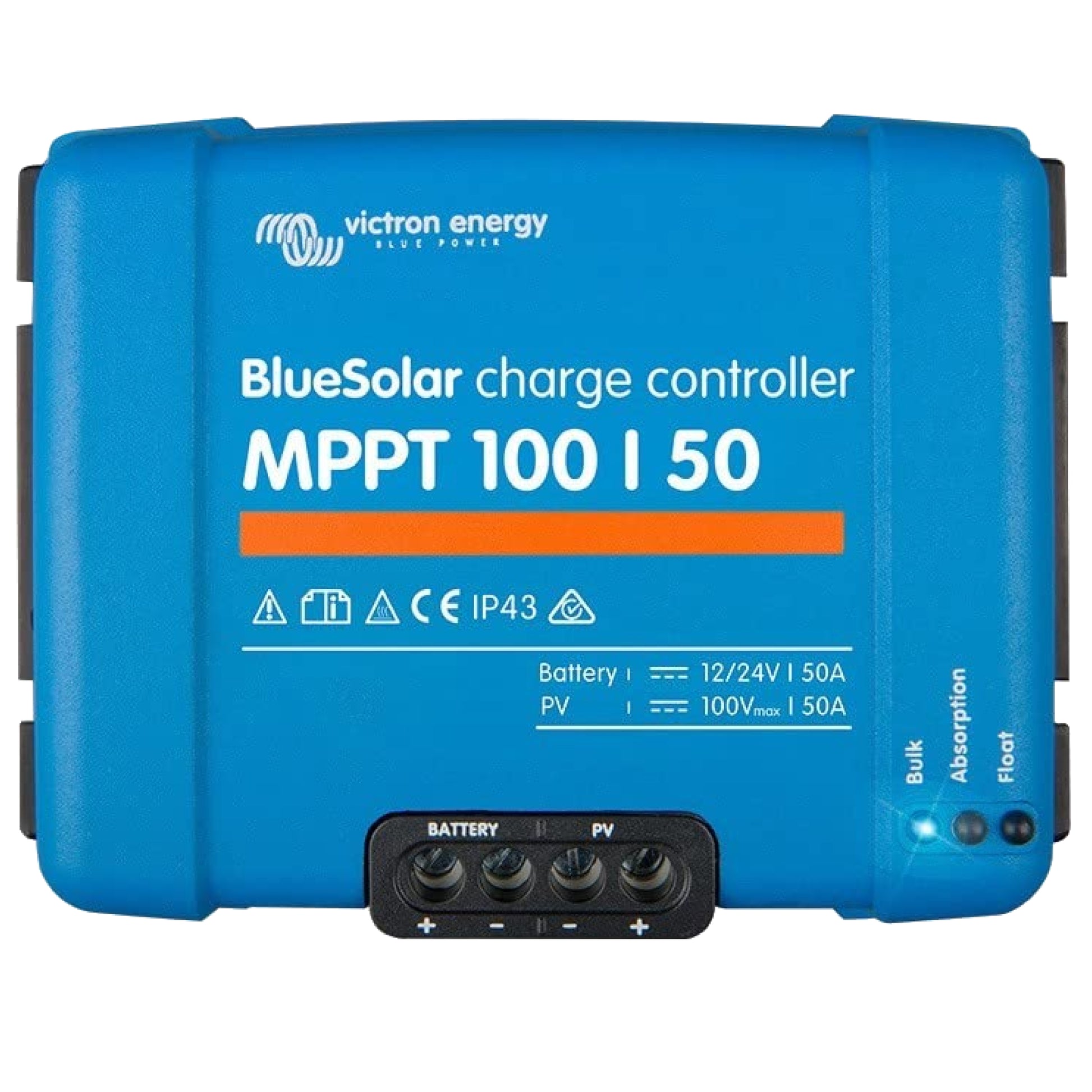

The BlueSolar MPPT range uses maximum power point tracking to draw the highest available power from your solar array, delivering more charge than a PWM controller across changing light and temperature conditions.
The line spans 75V to 250V maximum PV input voltage and 10A to 100A charge current for 12V, 24V and 48V battery systems, with configuration and monitoring over VE.Direct or VE.Can depending on model.
Used in Alchemy off-grid and mobile power systems for solar battery charging across a wide range of array and battery-bank sizes.
