Talk to an EngineerTechnical Specifications
| Type | Precision battery monitor |
|---|---|
| Shunt Rating | 500 A |
| Voltage Range | 6.5-95 VDC |
| Capacity Range | 1-9,999 Ah |
| Current Accuracy | +/-0.4% |
| Communication | VE.Direct |
|---|---|
| Second Input (BMV-702) | 2nd battery bank or temperature |
| Protection | IP55 (indoor use) |
| Warranty | 5 years |
| Certifications | CE, FCC |
Precision battery monitors with 500A shunt for accurate state-of-charge tracking.

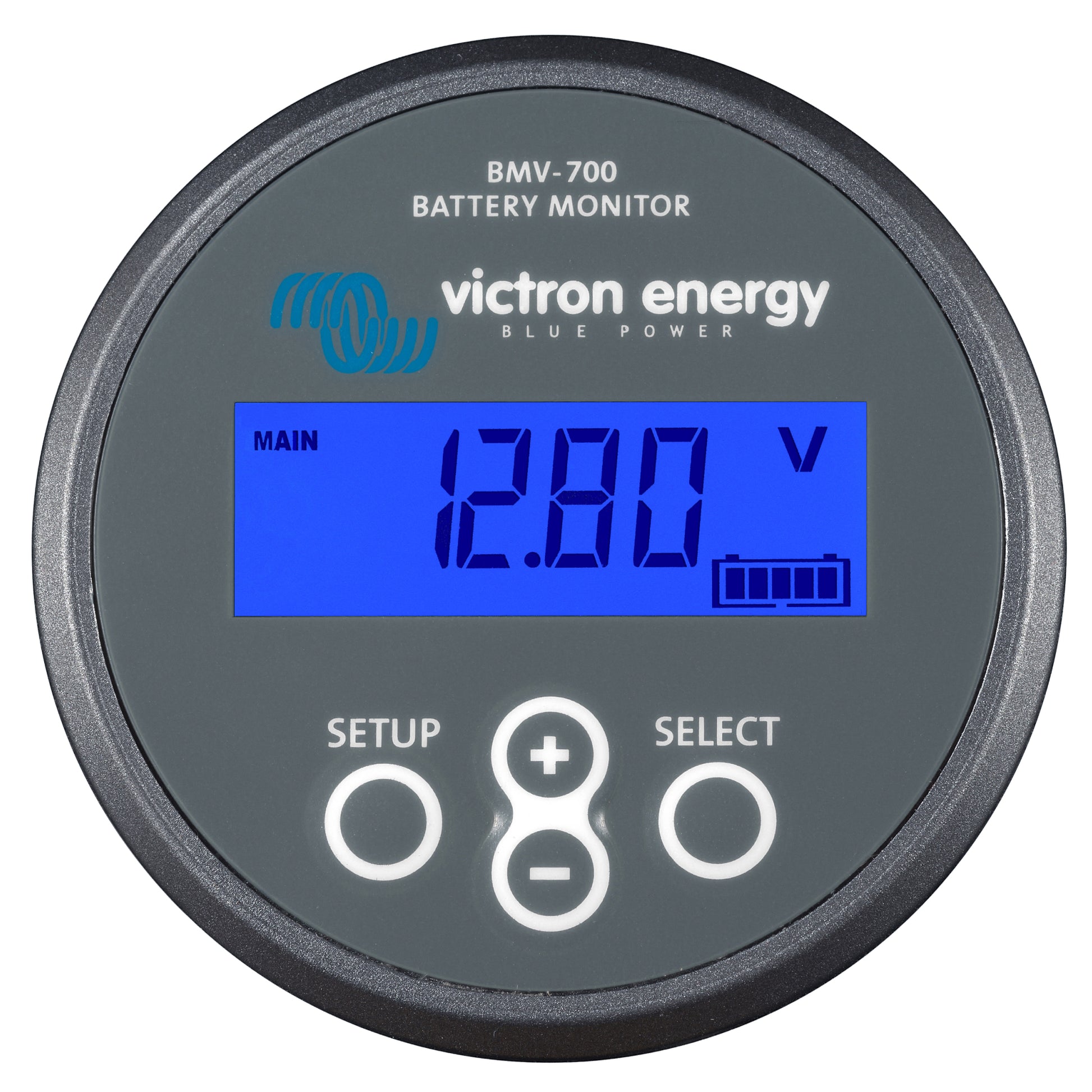

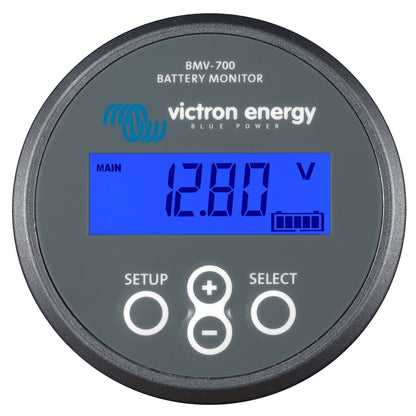

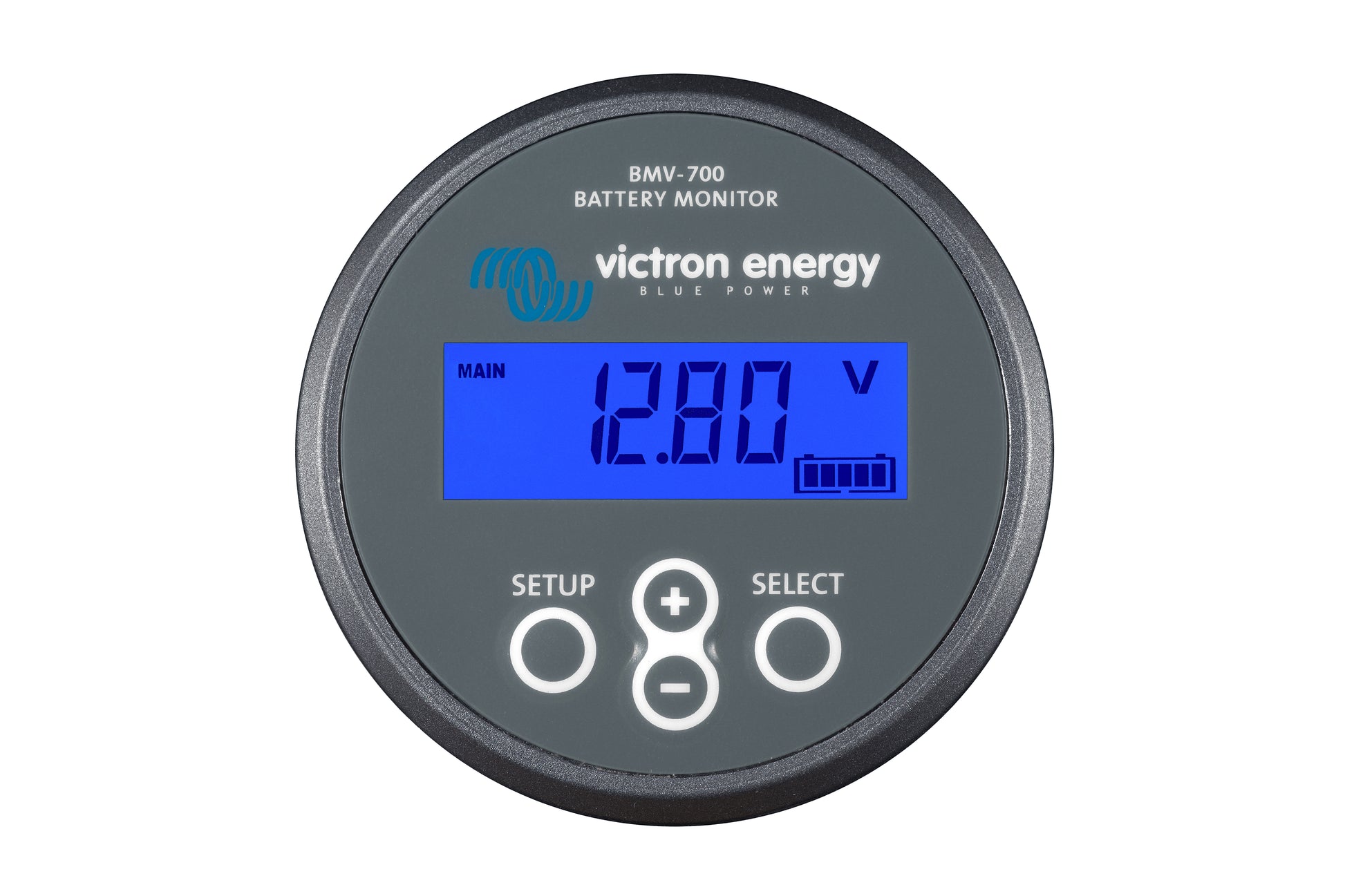

The Victron BMV-700 series measures battery voltage, current, consumed amp-hours, and state of charge with a precision 500A shunt, shown on a clear front-panel display. The BMV-702 adds a second measurement input for a second battery bank or battery temperature. VE.Direct connectivity allows monitoring and configuration via a GX device or the VE.Direct-to-USB interface.
Used in Alchemy off-grid, RV, and marine power systems for reliable battery-bank monitoring. (For built-in Bluetooth, see the BMV-712 Smart.)
