BMV-712 Smart

$158.95 USD

Sale Sold out

Shipping calculated at checkout.

Victron Energy

SKU:BAM030712200R

CE FCC NDAA RoHS

Ships from Houston, TX. In-stock items ship within 1-2 business days.

Authorized Victron Energy dealer. Full manufacturer warranty.

View full details

Need help designing a system?

Our engineers spec complete Victron power systems for your application: batteries, inverters, MPPT, and monitoring.

Talk to an Engineer

Technical Specifications

Shunt Rating	500A / 50 mV (included)
Voltage Range	6.5-70V DC
Voltage Accuracy	+/- 0.3%
Current Accuracy	+/- 0.4%
Battery Capacity Range	1 - 9,999 Ah
Display	Built-in LCD on head unit

Communication	VE.Direct, Bluetooth built-in, VE.Smart Networking
Power Consumption	< 1 mA
Operating Temp	-40°C to +50°C
IP Rating	IP55 (head unit)
Certifications	EN 60335-1, EN 55014-1, ECE R10-4

Precision battery monitor with built-in LCD, Bluetooth, and 500A shunt for real-time state of charge tracking.

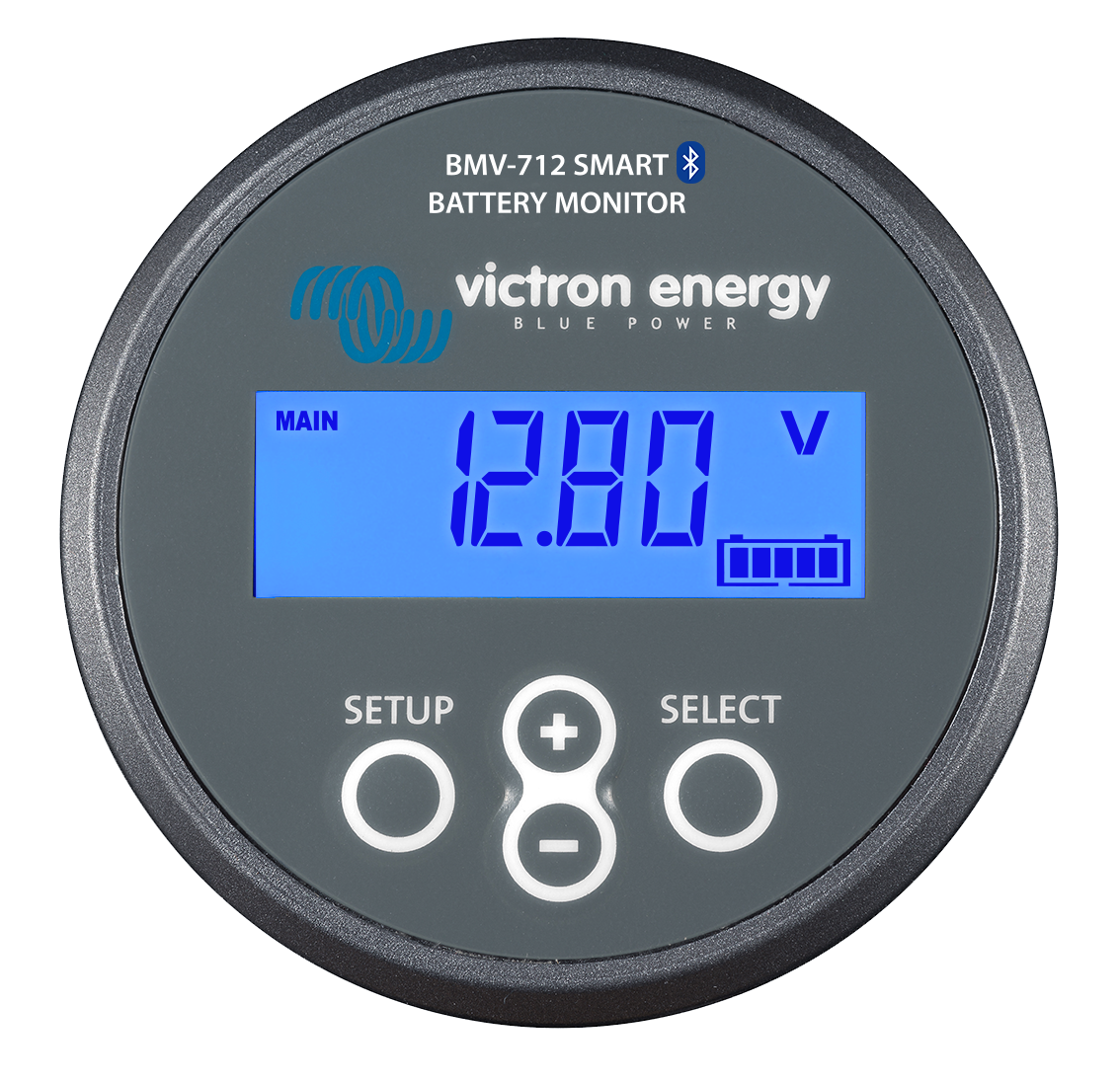

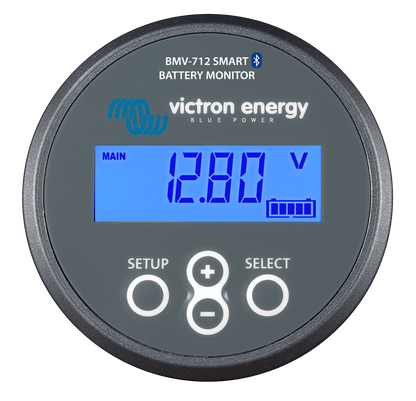

The Victron BMV-712 Smart is a high-precision battery monitor that tracks voltage, current, power, consumed amp-hours, and state of charge in real time. The included 500A/50mV shunt measures current with ±0.4% accuracy across a 6.5-70V DC range, supporting 12V through 48V battery systems. The built-in LCD head unit provides at-a-glance readings without requiring a phone or GX device.

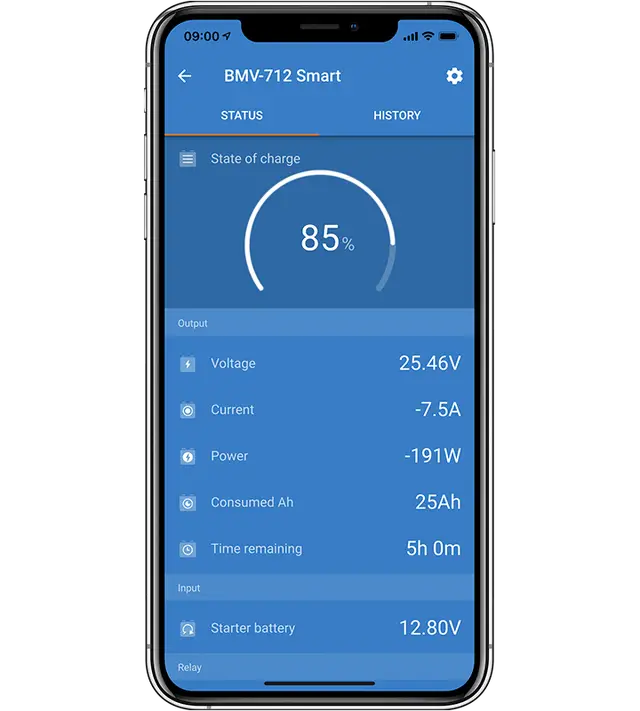

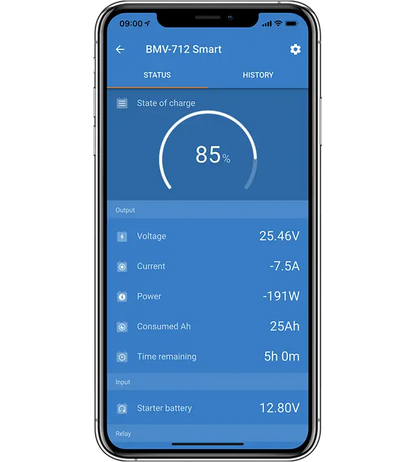

Built-in Bluetooth enables monitoring and configuration through VictronConnect. VE.Direct connectivity allows integration with GX devices for system-wide monitoring and VRM data logging. VE.Smart Networking enables wireless data sharing with compatible charge controllers for voltage and temperature-compensated charging.

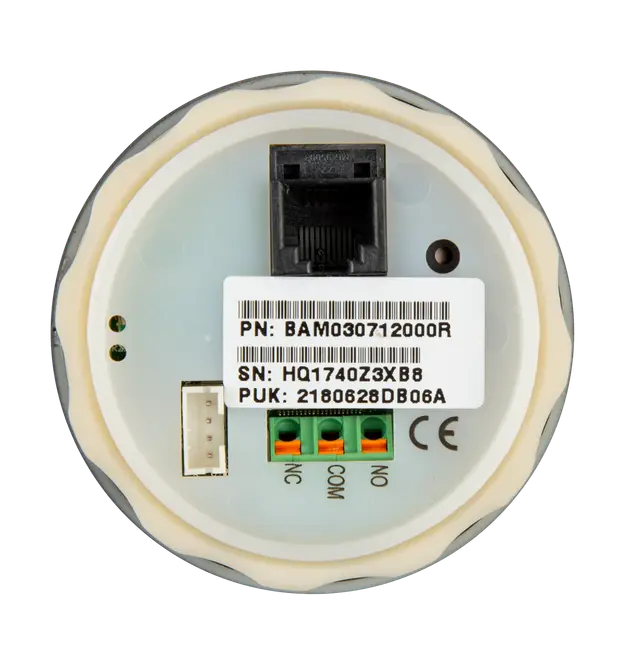

An additional input supports monitoring a second battery (starter battery) or midpoint voltage for series battery strings. Programmable relay output for alarms or load control. Suitable for mobile, marine, and off-grid systems where direct battery state monitoring is needed.
