Talk to an EngineerTechnical Specifications
| Display | 7-inch touchscreen, 1024 x 600, 1000 cd/m2 brightness, ambient light sensor |
|---|---|
| Communication Ports | 3x VE.Direct, 1x VE.Bus, 2x VE.Can, 2x USB, Ethernet, WiFi, Bluetooth |
| Digital/Analog I/O | 3 tank level inputs, 2 temp inputs, 2 digital inputs, 2 relays |
| Remote Monitoring | VRM portal, VictronConnect app, Remote Console |
| Power Supply | 8-70V DC |
| Power Consumption | 6.6W (display on, 24V) / 3.0W (display off, 24V) |
| Processor | Quad-core |
|---|---|
| Operating Temp | -20°C to +50°C |
| Weight | 558 g |
| Dimensions | 124 x 187 x 29.8 mm |
| IP Rating | IP54 (front w/ steel bracket) / IP21 (back) |
| Certifications | IEC 62368-1, EN 301489-1, ECE R10-6 |
All-in-one GX monitoring center with integrated 7-inch touchscreen, IP54 front panel, and full system control.

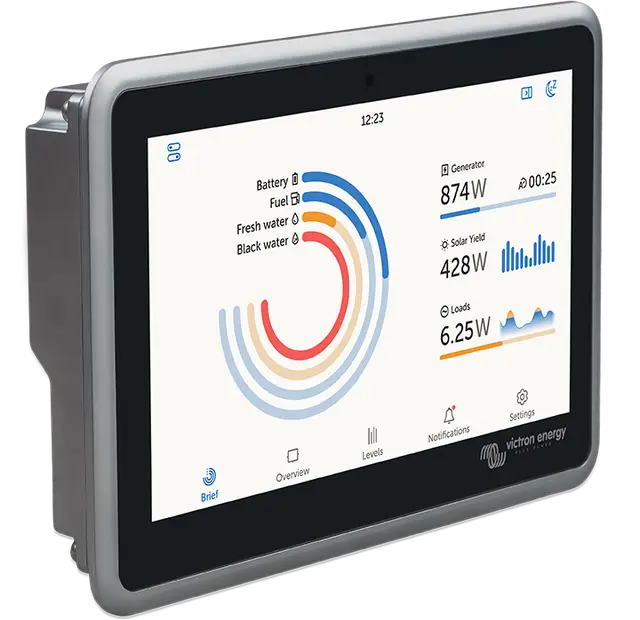

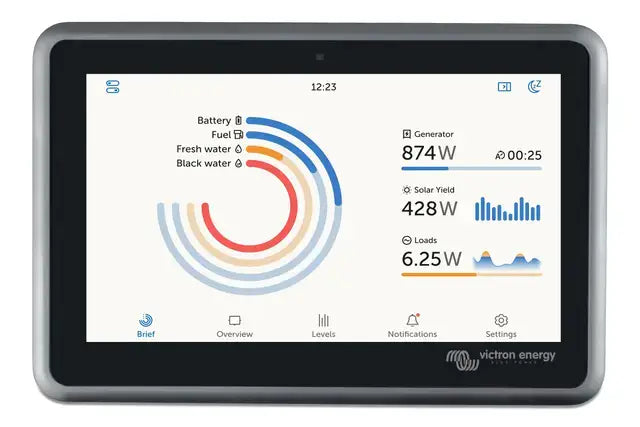

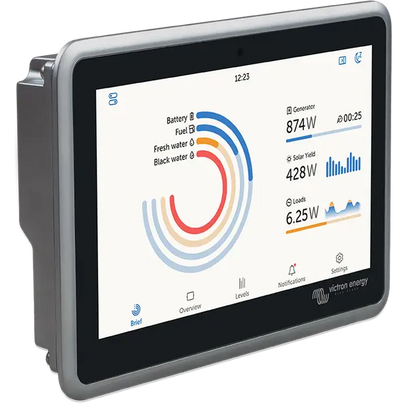

The Victron Ekrano GX combines a Cerbo-class communication center with a high-brightness 7-inch touchscreen display in a single panel-mount unit. The 1024x600 resolution display with 1000 cd/m² brightness and ambient light sensor provides clear visibility in direct sunlight and low-light environments. IP54-rated front panel (with steel bracket) protects against dust and water spray.

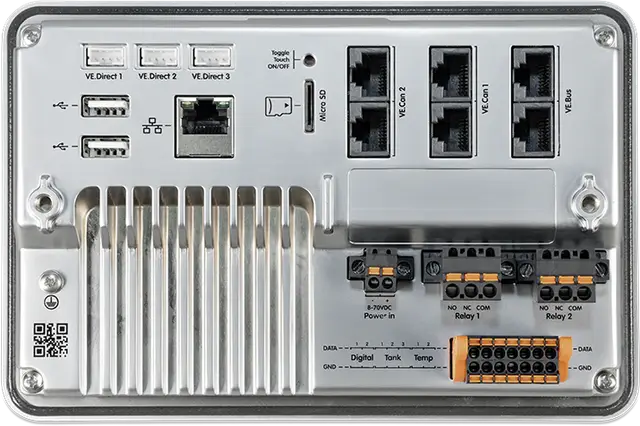

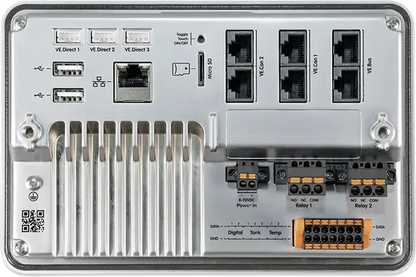

Connectivity includes 3x VE.Direct, 1x VE.Bus, 2x VE.Can, 2x USB, Ethernet, WiFi, and Bluetooth. Three tank level inputs, two temperature sensors, two digital inputs, and two programmable relays support auxiliary monitoring. The quad-core processor handles complex system visualization without lag.
Ideal for permanent installations where a clean, integrated panel display is preferred over a separate Cerbo + GX Touch setup. Used in Alchemy industrial enclosures and control panels where space and aesthetics matter.
