GX Touch

$220.15 USD

Sale Sold out

Shipping calculated at checkout.

Victron Energy

SKU:BPP900455050

CE FCC NDAA RoHS

Ships from Houston, TX. In-stock items ship within 1-2 business days.

Authorized Victron Energy dealer. Full manufacturer warranty.

View full details

Need help designing a system?

Our engineers spec complete Victron power systems for your application: batteries, inverters, MPPT, and monitoring.

Talk to an Engineer

Technical Specifications

Display Sizes	5 inch (GX Touch 50) / 7 inch (GX Touch 70)
Resolution	800 x 480 (Touch 50) / 1024 x 600 (Touch 70)
Touch Type	Capacitive touchscreen
Cable Length	2 m (fixed cable)
Connection	Single cable to Cerbo GX (USB power + data)

Power Source	Powered by Cerbo GX (no separate supply needed)
Operating Temp	-20°C to +50°C
Weight	0.37 kg (Touch 50) / 0.45 kg (Touch 70)
Dimensions (Touch 50 / 70)	87 x 128 x 12.5 mm / 112 x 175 x 12.5 mm
IP Rating	IP54 (standard) / IP65 (flush mount variant)

Capacitive touchscreen displays for the Cerbo GX, available in 5-inch and 7-inch sizes with IP54/IP65 ratings.

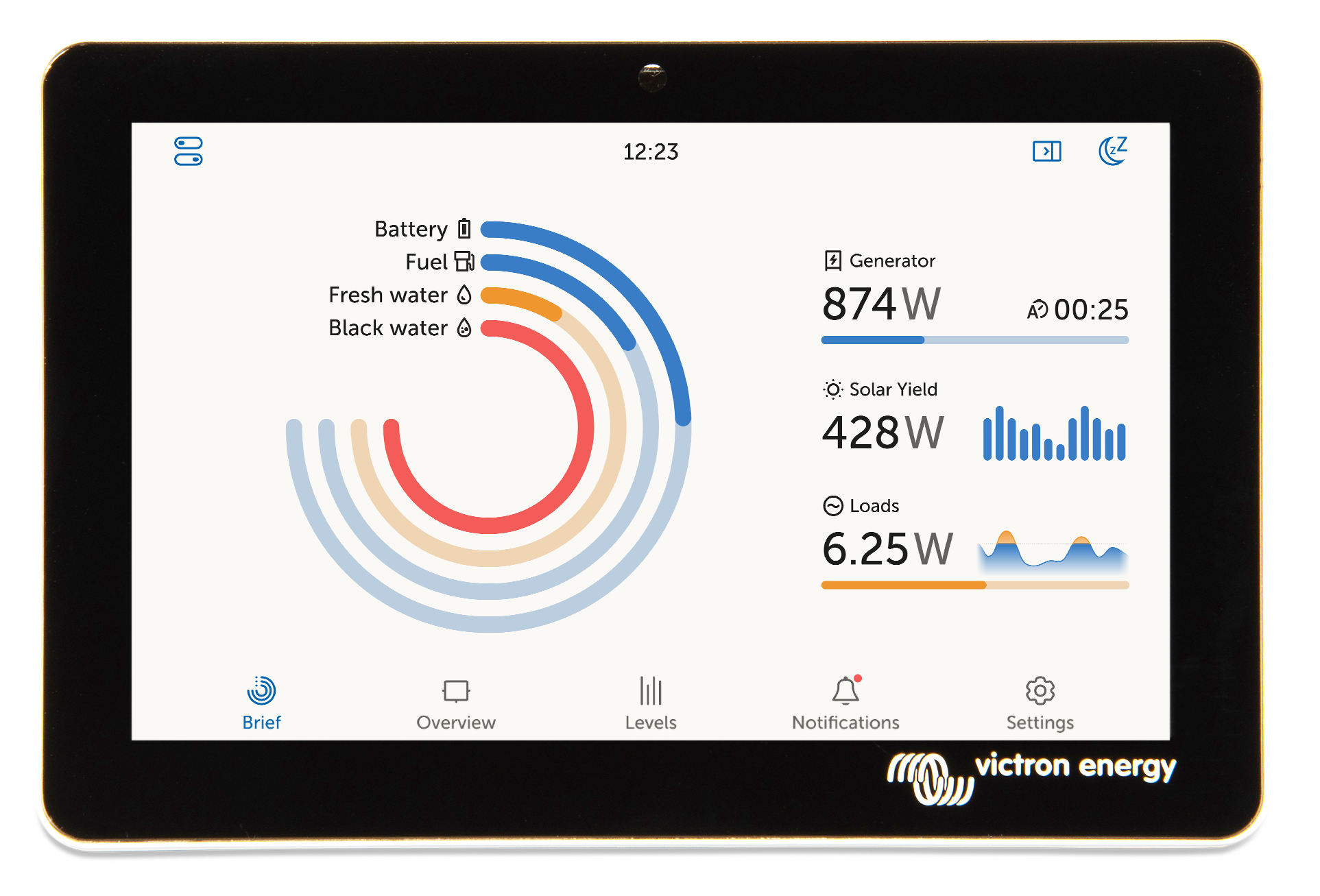

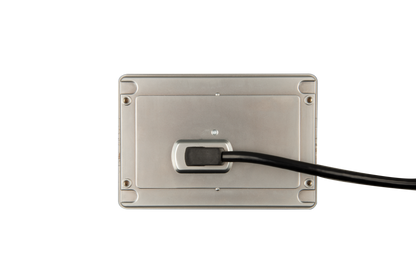

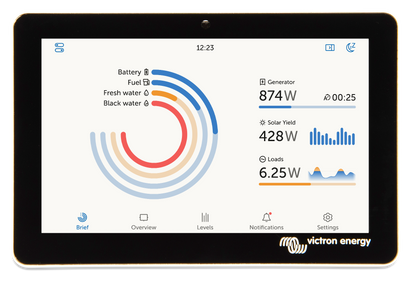

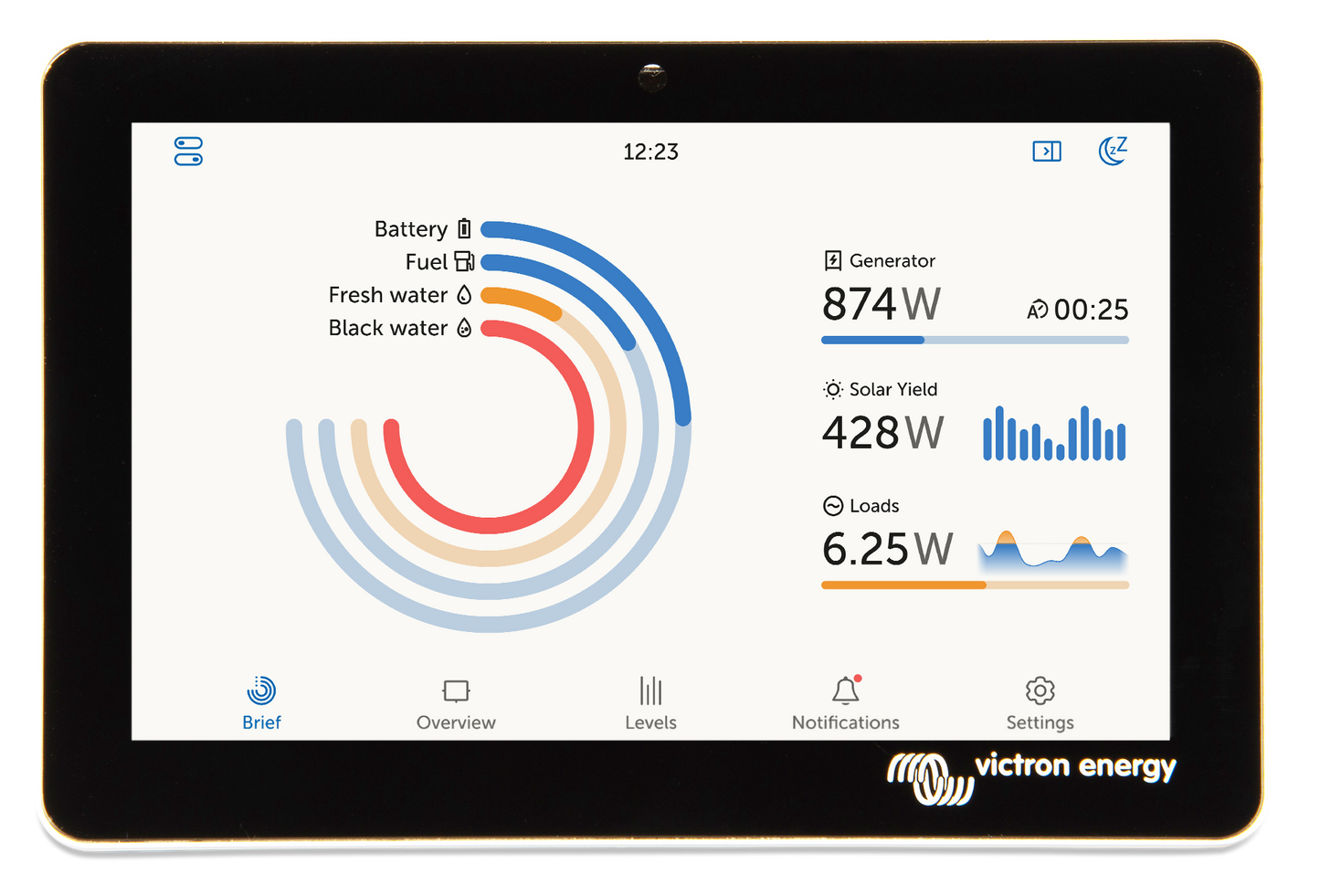

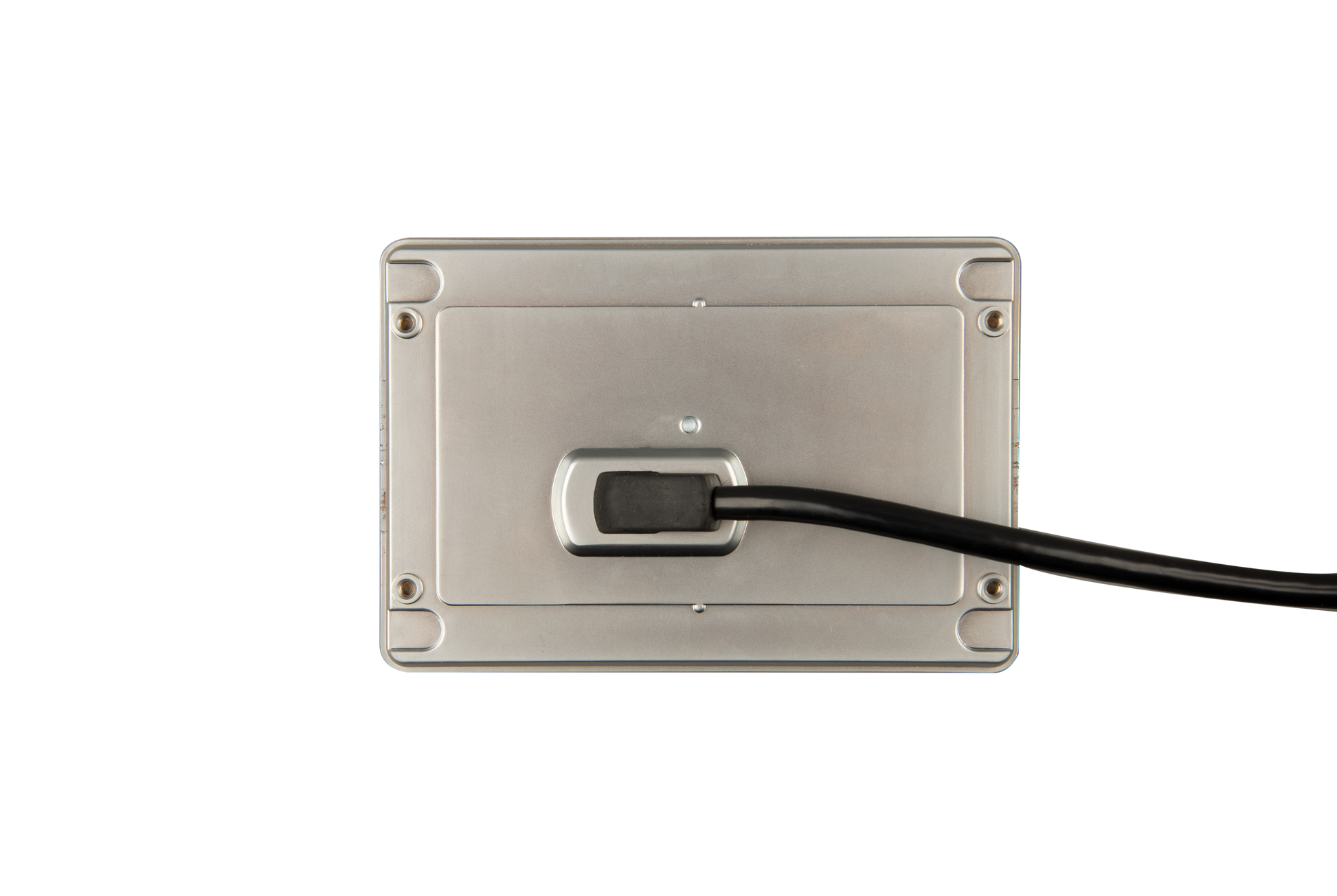

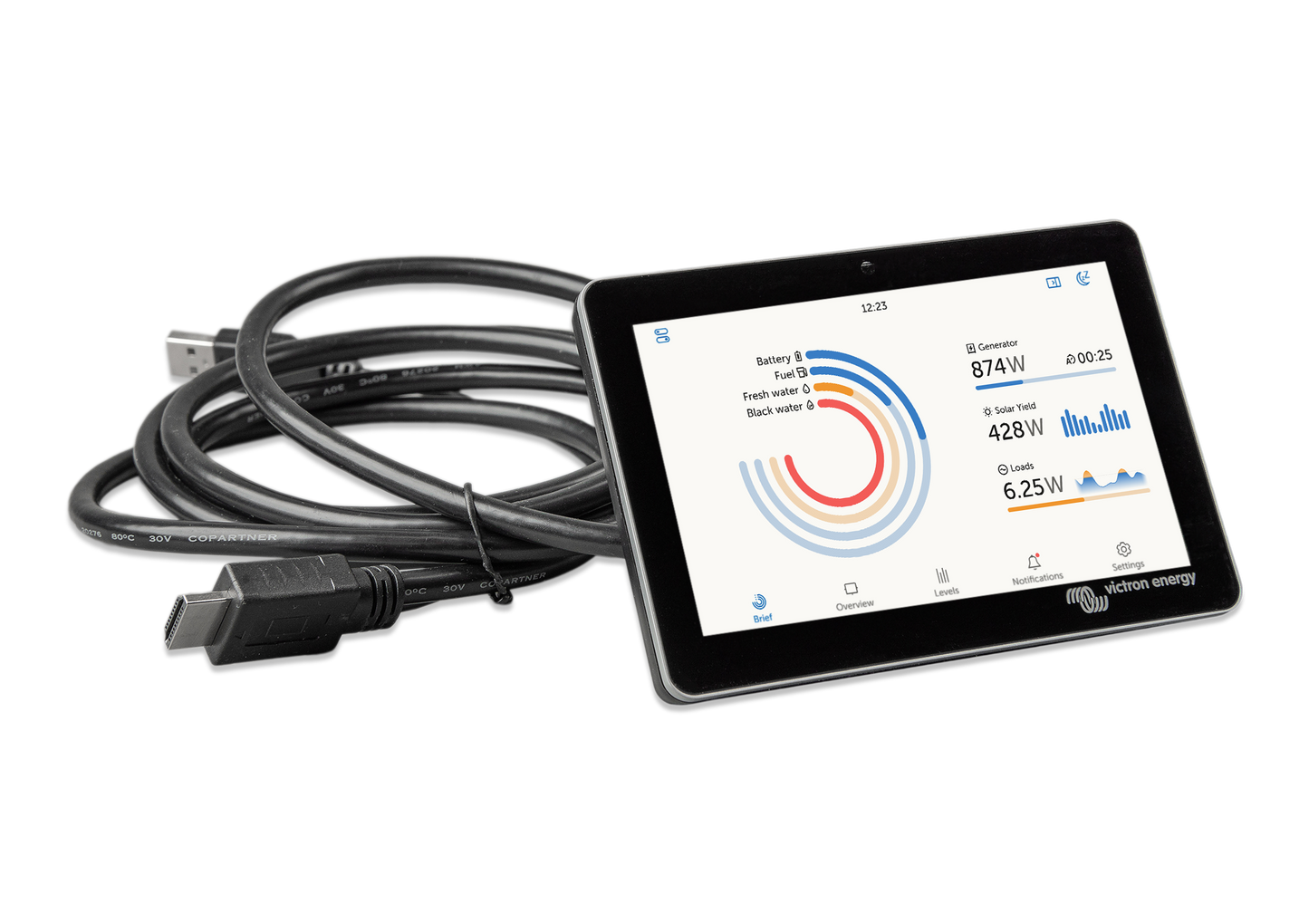

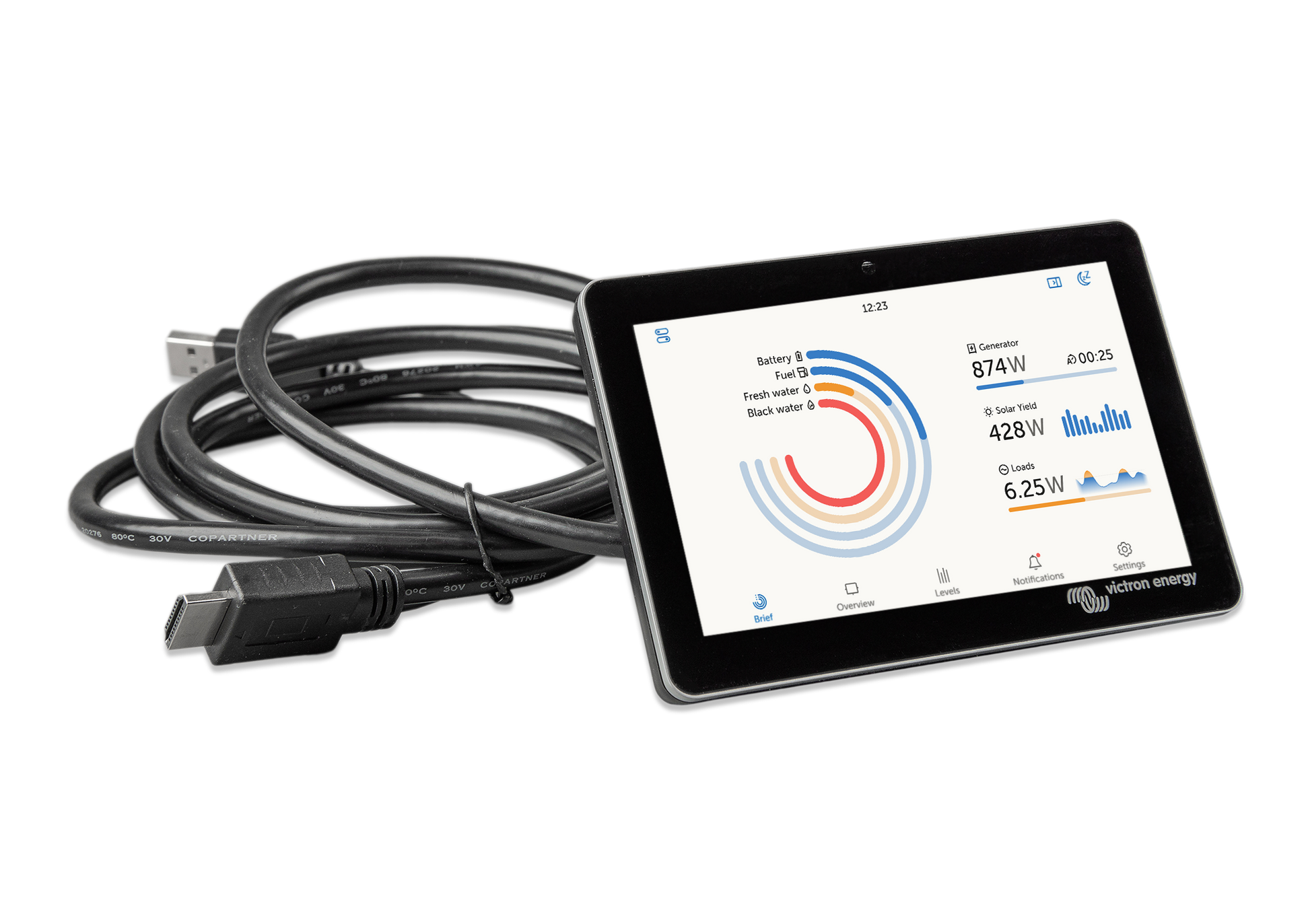

The GX Touch 50 and GX Touch 70 are dedicated display accessories for the Victron Cerbo GX. They connect via a single cable that carries both power and data, requiring no separate power supply. The capacitive touchscreens provide real-time system visualization, settings adjustment, and alarm monitoring through the standard GX interface.

The GX Touch 50 offers 800x480 resolution in a compact 87x128mm form factor. The GX Touch 70 provides 1024x600 resolution in a 112x175mm panel. Both are available in standard (IP54) and flush-mount (IP65) variants. The ultra-slim 12.5mm depth allows panel mounting in tight enclosures.

Pairs exclusively with the Cerbo GX. Used in Alchemy power system enclosures for on-site monitoring and control alongside remote VRM access.
