Talk to an EngineerTechnical Specifications
| Voltage Range | 9-60Vdc |
|---|---|
| Current Rating | Up to 400A continuous |
| Fuse Type | Class-T |
| System Voltages | 12/24/48V |
| Busbar Connections | 4 pos + 4 neg M10 |
| Protection | IP22 |
|---|---|
| Dimensions | 290x170x80mm |
| Weight | 2.3 kg |
| Operating Temp | -40°C to +60°C |
| Warranty | 5 years |

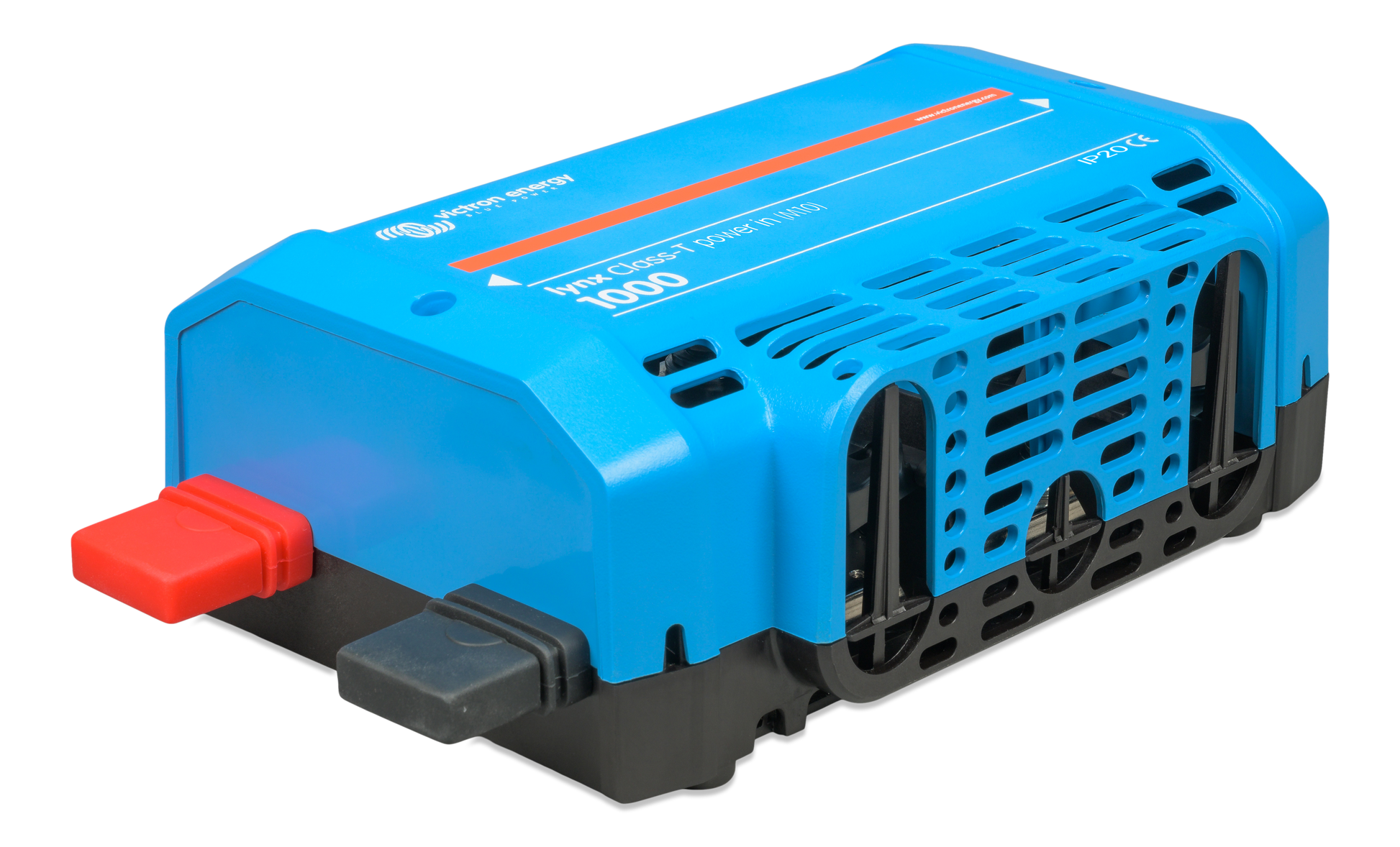

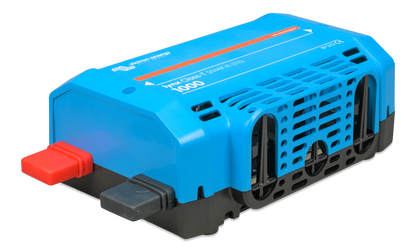

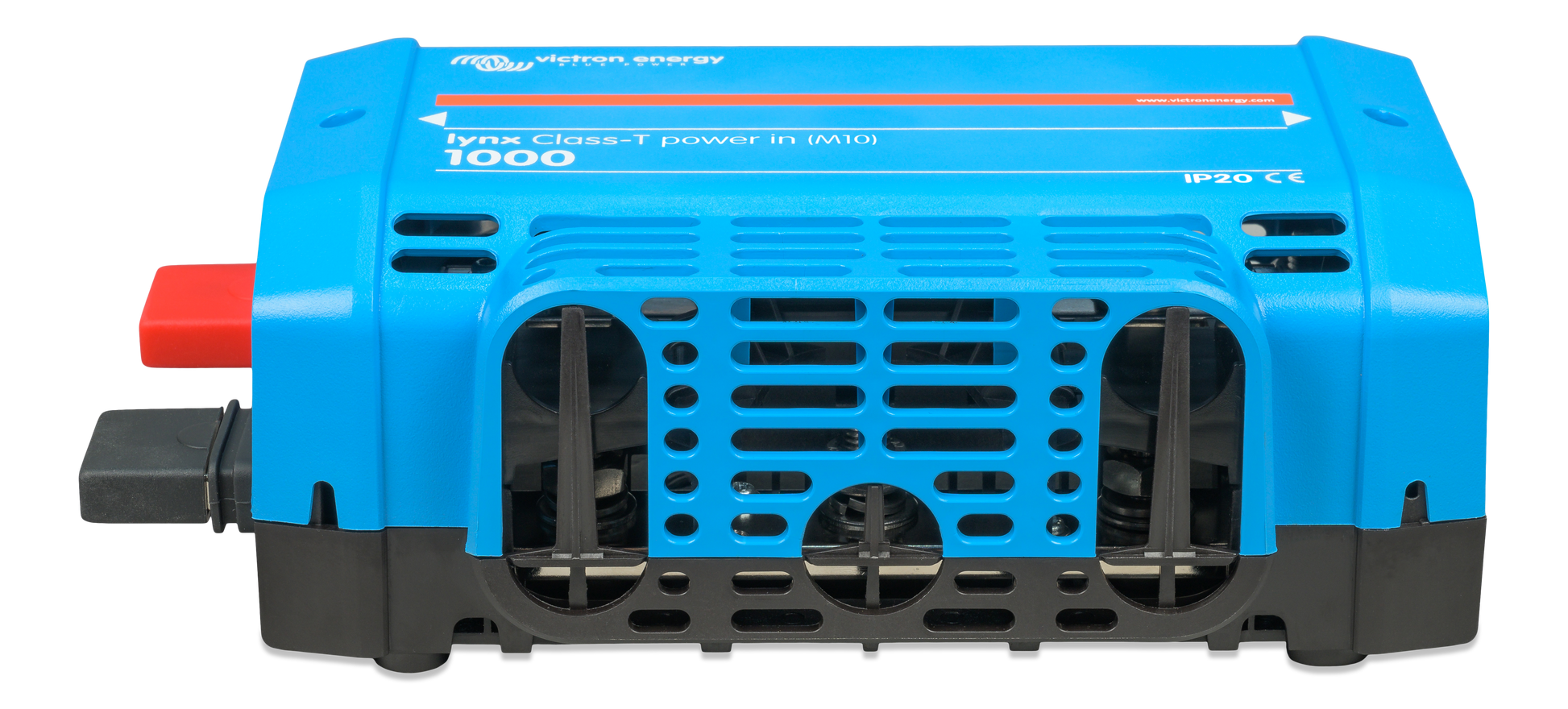

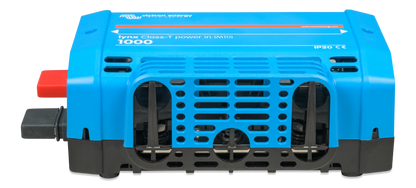

Battery-side entry module with integrated Class-T fuse protection, combining overcurrent safety and DC distribution in a single enclosure.
The Victron Lynx Class-T Power In combines the battery connection function of the standard Lynx Power In with a built-in Class-T fuse holder, providing critical overcurrent protection directly at the battery entry point. This eliminates the need for a separate fuse block between the battery and the Lynx busbar, simplifying wiring and reducing the number of components in the DC cabinet.
Rated for systems up to 400A continuous with a Class-T fuse, the module supports 12V, 24V, and 48V configurations. It maintains full compatibility with the Lynx Distributor, Lynx Shunt, and Lynx BMS modules through the same snap-together busbar architecture. The IP22-rated housing is built to operate from -40°C to +60°C, making it suitable for vehicle-mounted, outdoor, and industrial installations.
Used in Alchemy industrial power systems where battery-side fuse protection must be integrated into the DC distribution backbone for trailer power systems, construction site cabinets, and commercial energy storage builds.
