Talk to an EngineerTechnical Specifications
| Current Rating | 1000A DC continuous |
|---|---|
| Voltage Range | 9-60V DC |
| System Voltage | 12V, 24V, or 48V |
| Fuse Slots | 4x MEGA fuse slots |
| Fuse Type | 36V MEGA (12/24V systems) or 58V MEGA (48V systems) |
| Busbar Connection | M10 busbar (tinned copper, 8 x 30 mm) |
| Monitoring | Fuse status via RJ10 to Lynx Smart BMS |
|---|---|
| Operating Temp | -40°C to +60°C |
| Weight | 2.2 kg |
| Dimensions | 290 x 170 x 80 mm |
| IP Rating | IP22 |
Modular DC busbar with 4 MEGA fuse slots, 1000A continuous rating, and LED fuse status monitoring. M10 busbar connections.

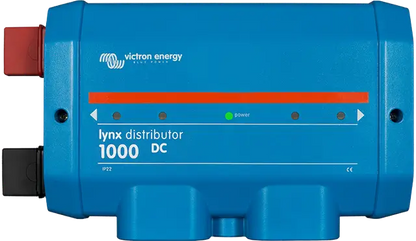

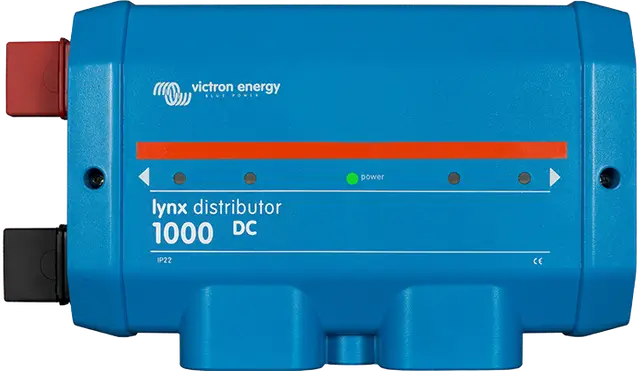

The Victron Lynx Distributor M10 is a modular DC power distribution unit rated for 1000A continuous current on 12V, 24V, or 48V systems. Four MEGA fuse slots accept 36V or 58V fuses for circuit protection of individual loads (inverters, charge controllers, DC-DC chargers). Tinned copper M10 busbars provide low-resistance connections for high-current cables.
LED indicators on each fuse position display fuse status at a glance. RJ10 daisy-chain connectivity to a Lynx Smart BMS enables remote fuse monitoring through GX devices. Multiple Lynx Distributors chain together to expand the number of fused circuits in a system.
Part of the modular Lynx distribution system. Standard in Alchemy industrial power enclosures for organized, fused DC distribution between battery banks, inverters, and charge controllers.
