Talk to an EngineerTechnical Specifications
| Voltage Range | 9-60Vdc |
|---|---|
| Current Rating | 1000A continuous |
| System Voltages | 12/24/48V |
| Busbar Connections | 4 pos + 4 neg M10 |
| Busbar Material | Tinned copper 8x30mm |
| Protection | IP22 |
|---|---|
| Dimensions | 290x170x80mm |
| Weight | 2.1 kg |
| Operating Temp | -40°C to +60°C |
| Warranty | 5 years |
Essential battery-side entry module that anchors the Lynx DC distribution system with high-current busbar connections.

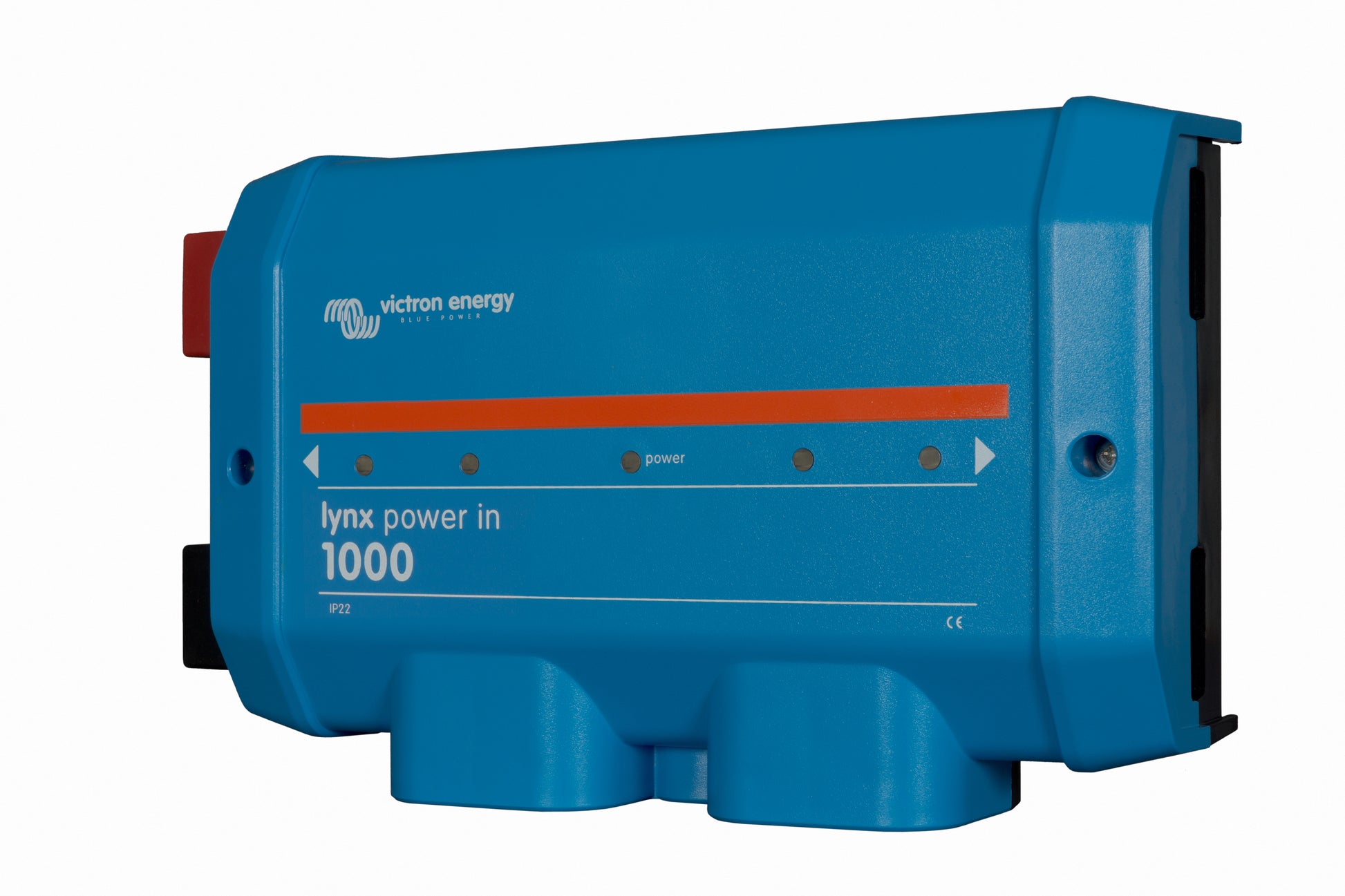

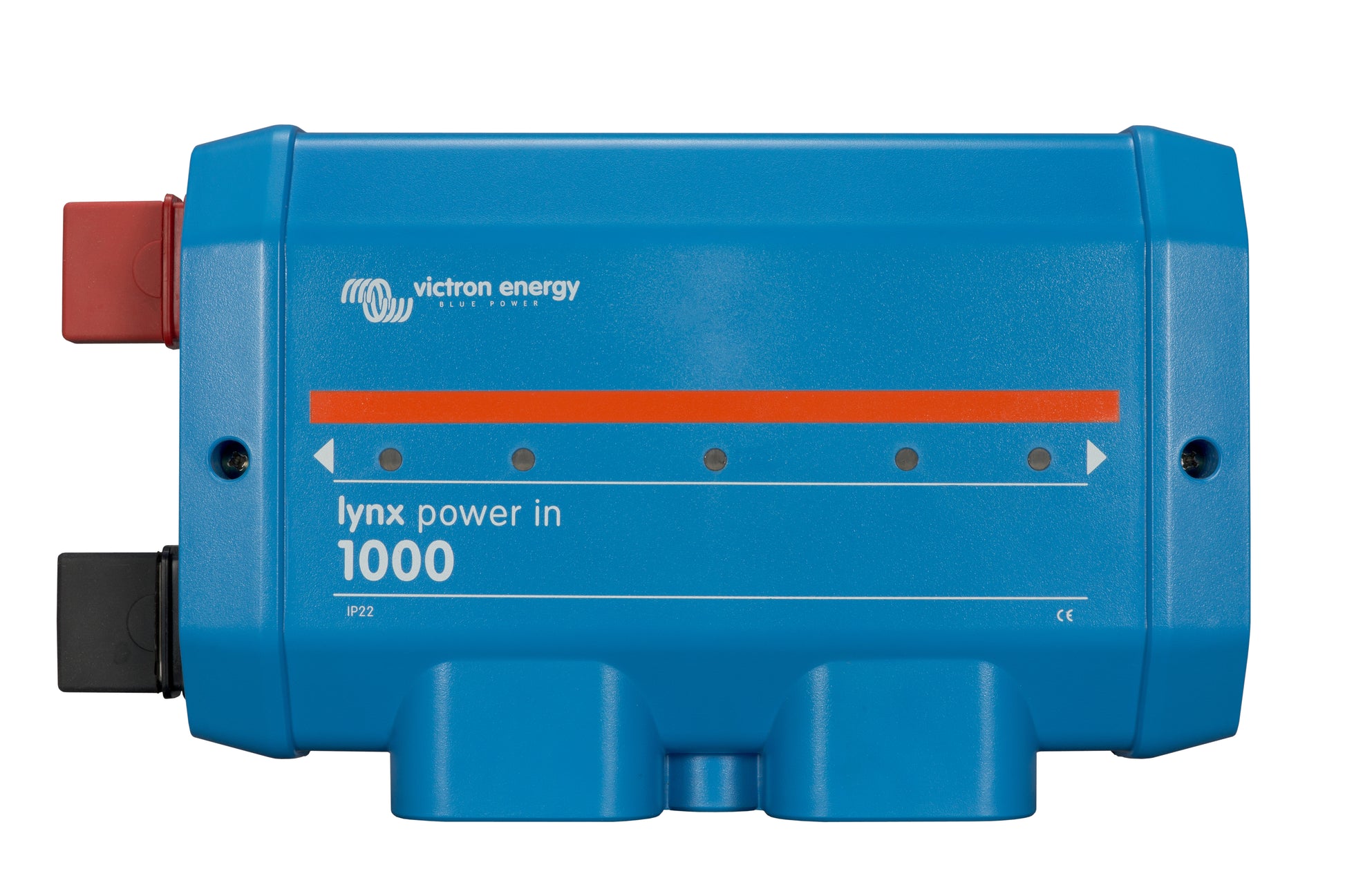

The Victron Lynx Power In serves as the starting point for every Lynx DC distribution system, providing a robust connection between the battery bank and the rest of the DC busbar. Rated for 1,000A continuous across its tinned-copper busbars, it handles the full current demands of large inverter/charger installations without voltage drop concerns. Four positive and four negative M10 stud connections make it straightforward to land heavy-gauge battery cables in a clean, organized layout.
Designed for 12V, 24V, and 48V systems, the Lynx Power In is fully compatible with Lynx Distributor, Lynx Shunt, and Lynx BMS modules, allowing system designers to build a scalable, modular DC backbone. The IP22-rated enclosure operates reliably from -40°C to +60°C, meeting the demands of mobile and stationary installations alike.
Used in Alchemy industrial power systems as the foundational battery connection module for trailer-mounted generators, commercial backup cabinets, and microgrid DC distribution builds.
