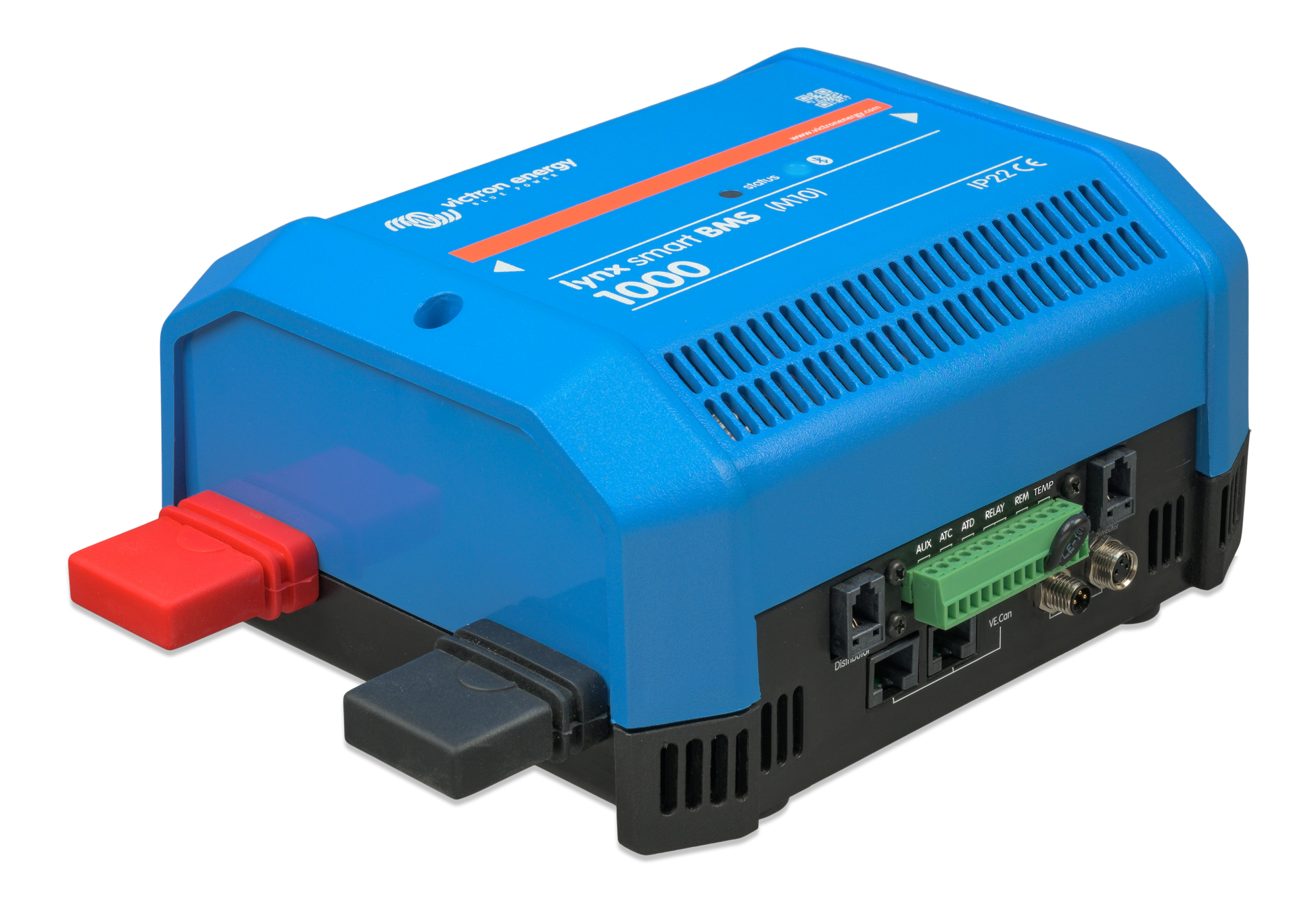

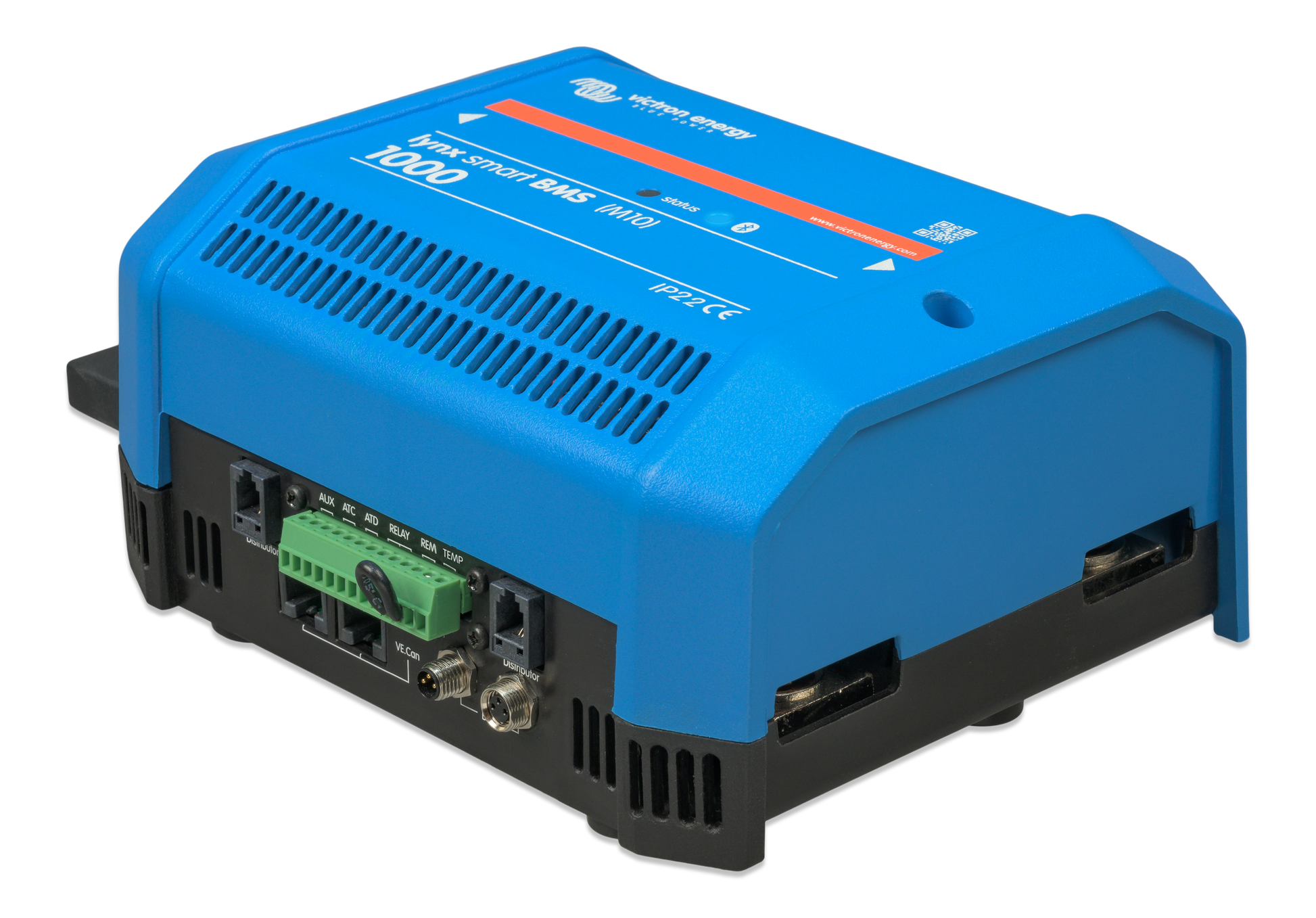

Lynx Smart BMS

$803.25 USD

Sale Sold out

Shipping calculated at checkout.

Victron Energy

SKU:LYN034160210

CE NDAA RoHS

Ships from Houston, TX. In-stock items ship within 1-2 business days.

Authorized Victron Energy dealer. Full manufacturer warranty.

Ordering multiple units? Request volume pricing

View full details

Need help designing a system?

Our engineers spec complete Victron power systems for your application: batteries, inverters, MPPT, and monitoring.

Talk to an Engineer

Technical Specifications

Continuous Current	500A (500 model) / 1000A (1000 model)
Peak Current	600A for 5 min (500 model) / 1200A for 5 min (1000 model)
System Voltage	12V, 24V, or 48V
Supply Voltage Range	9-60V DC
Battery Connections	Up to 20 batteries via M8 3-pole BMS cables
Communication	VE.Can (RJ45), Bluetooth (via VictronConnect)

Relay Output	SPDT programmable relay (2A @ 60V DC)
Operating Temp	-40°C to +60°C
Weight	1.9 kg (500A) / 2.7 kg (1000A)
Dimensions	190 x 180 x 80 mm (500A) / 230 x 180 x 100 mm (1000A)
IP Rating	IP22
Certifications	EN-IEC 63000, EN-IEC 61000-6-3, ISO 9001

Dedicated BMS for Victron Lithium Smart batteries with 500A or 1000A continuous current, VE.Can communication, and pre-alarm management.

The Victron Lynx Smart BMS provides cell-level monitoring and protection for Victron Lithium Smart battery banks. Available in 500A (600A peak for 5 min) and 1000A (1200A peak for 5 min) versions, it connects to up to 20 batteries via M8 3-pole BMS cables. VE.Can communication with GX devices enables real-time cell voltage, temperature, and state of charge monitoring through the VRM portal.

The BMS manages pre-alarm and alarm states, sending charge/discharge enable signals to connected inverters and charge controllers via the GX device. A programmable SPDT relay (2A @ 60V DC) provides auxiliary control for contactors, alarms, or indicator lights. The system supports 12V, 24V, and 48V battery configurations.

Part of the modular Lynx distribution system. Integrates with Lynx Distributors and Lynx Shunt for a complete DC busbar and monitoring backbone in high-power Victron-based installations.
