Talk to an EngineerTechnical Specifications
| Continuous Power | 3,000VA / 2,400W to 5,000VA / 4,000W (model dependent) |
|---|---|
| Peak Power | 5,500W to 9,000W (model dependent) |
| Battery Voltage | 24V nominal (19–33 VDC) |
| Max Charge Current | 70A to 120A (model dependent) |
| AC Output | 120 VAC / 60 Hz |
| AC Input Range | 90–140 VAC, 45–65 Hz |
| Transfer Time | <20 ms |
| Peak Efficiency | 94–95% |
| Communication | VE.Bus; Bluetooth via dongle or GX |
|---|---|
| Protection Rating | IP22 |
| Operating Temp | -40°C to +65°C |
| Weight | 19 kg to 29 kg (model dependent) |
| Dimensions (H×W×D) | 536×277×147 mm to 627×350×150 mm (model dependent) |
| Warranty | 5 years |
| Certifications | UL 458, CSA C22.2, EN/IEC 60335, CE |
Single-output 120V inverter/charger with PowerAssist and PowerControl for North American systems.

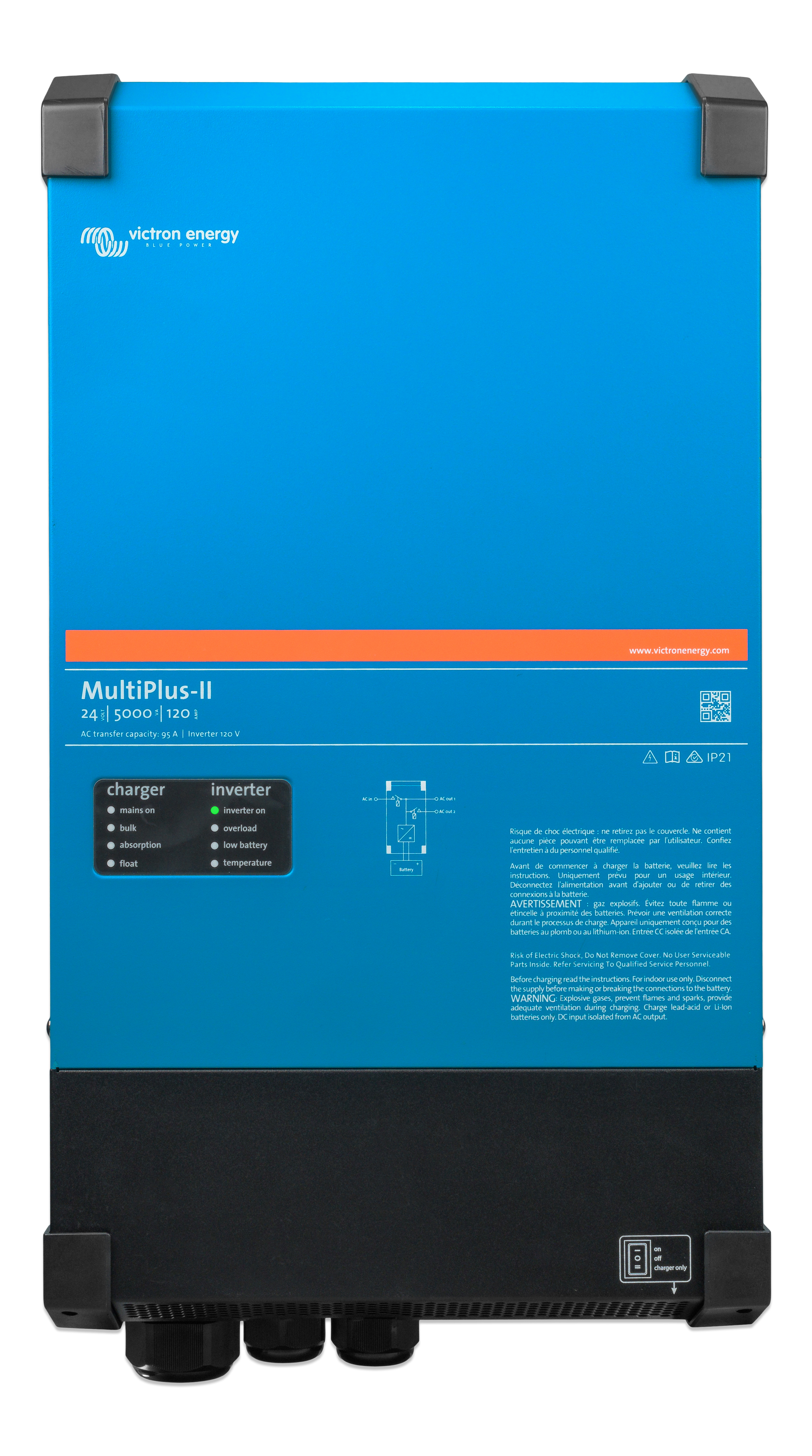

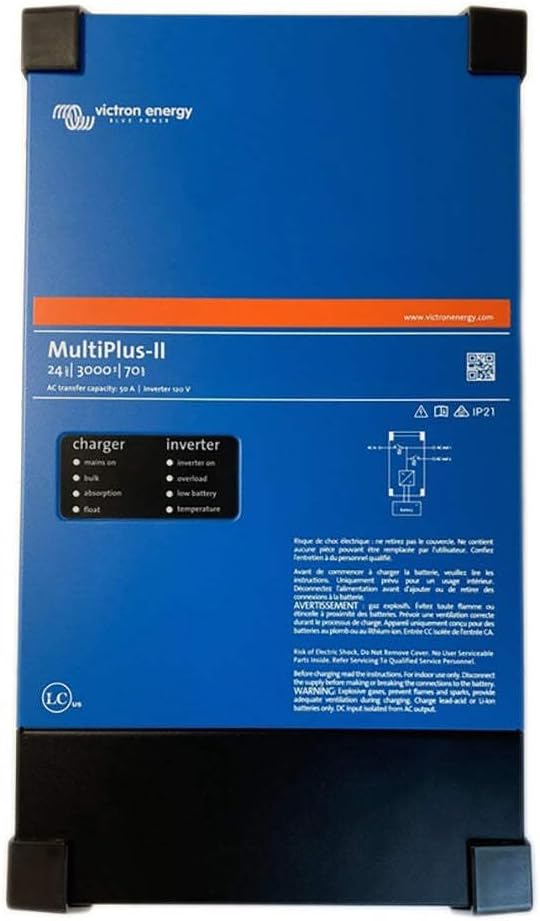

The Victron MultiPlus-II 24V is a combined pure sine wave inverter and battery charger built for 120V North American power systems. It delivers clean, grid-quality AC power and recharges your battery bank from shore or generator input, switching seamlessly between sources. Its integrated transfer switch and multiple protections make it a dependable core for demanding installations.
PowerControl limits total draw from a limited shore or generator supply, while PowerAssist boosts that supply with battery power to handle peak loads without tripping the source. The unit communicates over VE.Bus and integrates with any Victron GX device for monitoring, configuration, and system control.
Used in Alchemy industrial and off-grid power systems for backup power, energy storage, and shore/generator integration.
