Talk to an EngineerTechnical Specifications
| Models | 12V/3000VA/120A, 24V/3000VA/70A, 48V/3000VA/35A |
|---|---|
| AC Output | 2x 120V |
| Continuous Power | 3000VA / 2400W |
| Peak Power | 6000W |
| Transfer Time | <20 ms |
| Battery Charge Current | 120A / 70A / 35A model dependent |
| Efficiency | up to 96% |
| Communication | VE.Bus, Bluetooth via dongle |
|---|---|
| Parallel Capable | Up to 6 units |
| Operating Temp | -40°C to +65°C |
| Weight | 18-24 kg |
| Certifications | UL 1741, CSA C22.2 |
| Warranty | 5 years |
Versatile inverter/charger delivering two independent 120V AC outputs for North American split-phase and dual-circuit installations.

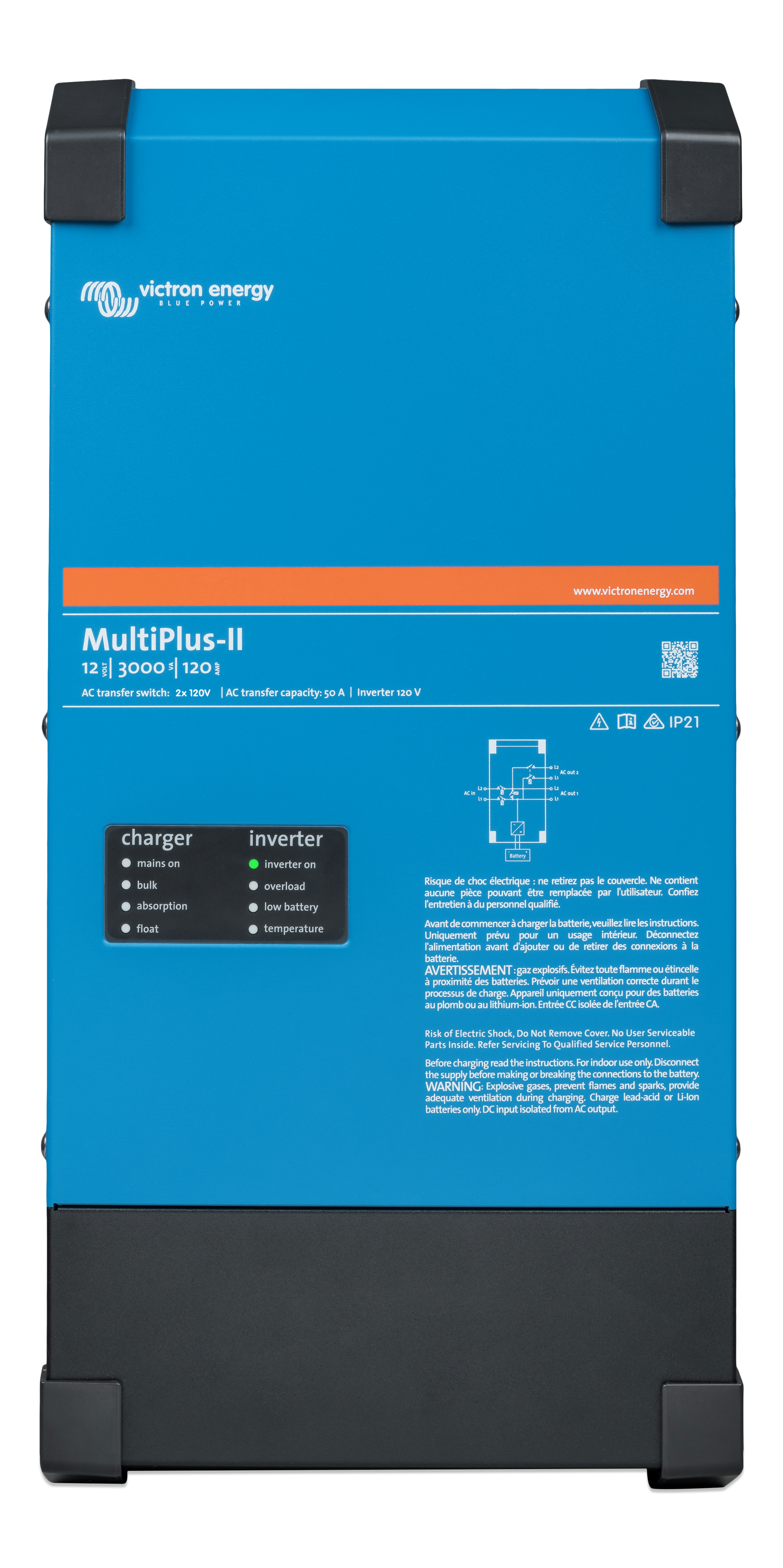

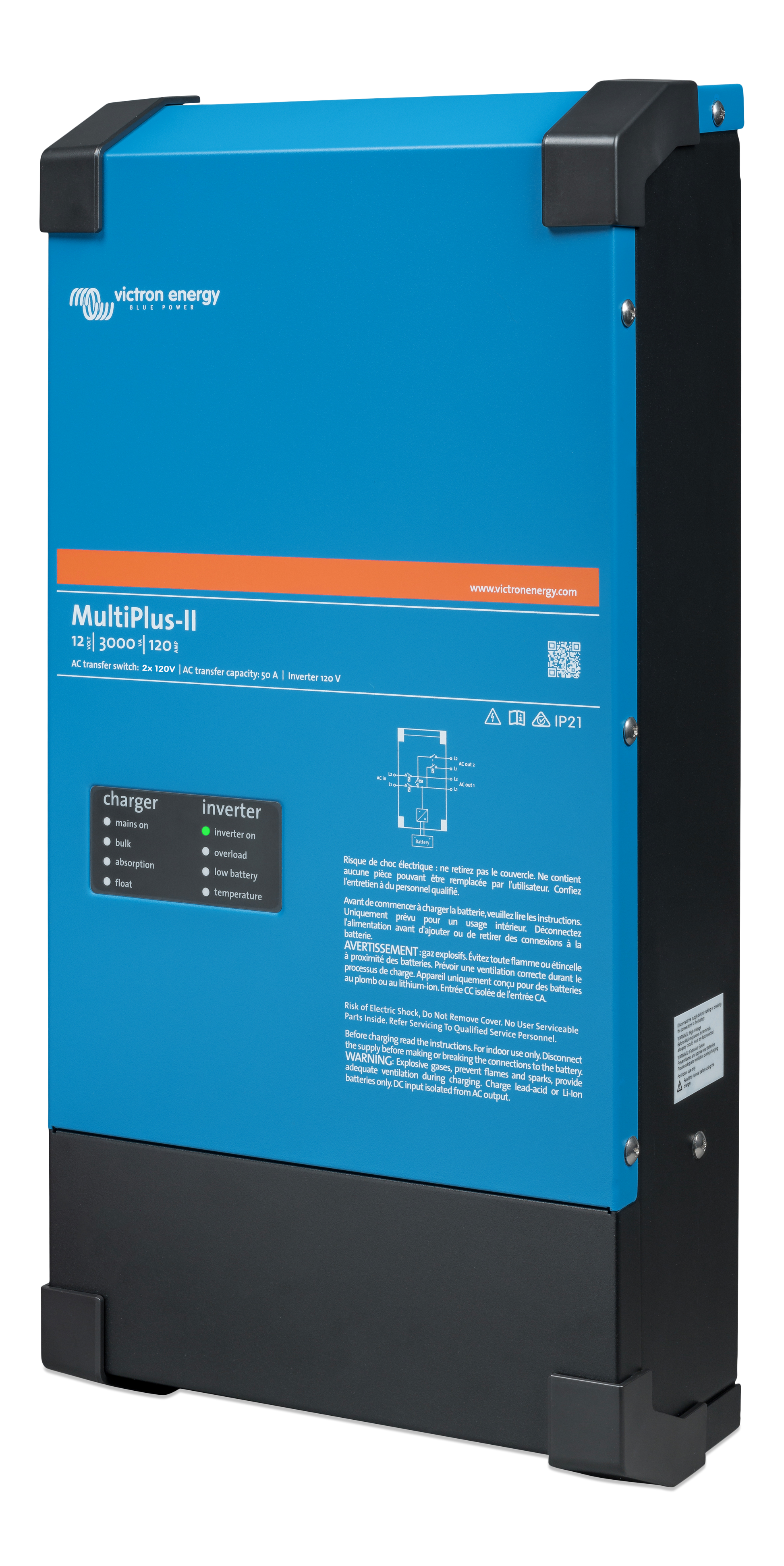

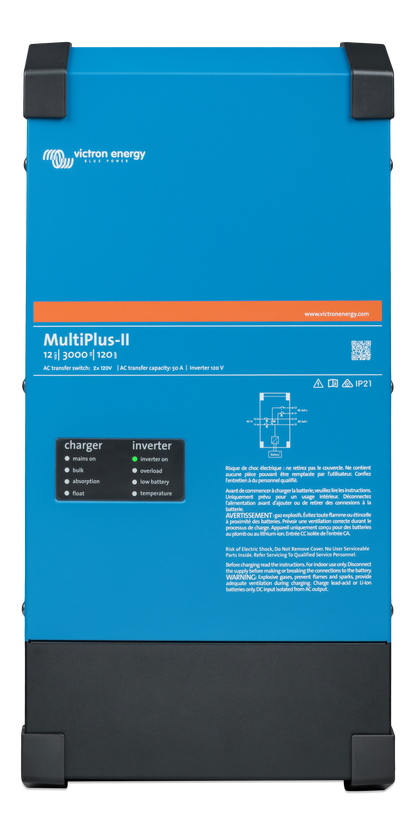

The Victron MultiPlus-II 2x120V is purpose-built for North American power systems that require two separate 120V AC outputs from a single inverter/charger. Available in 12V, 24V, and 48V battery configurations at 3,000VA continuous with 6,000W peak power, it handles demanding loads while maintaining clean true sine wave output. The sub-20ms automatic transfer switch provides seamless transitions between inverter and grid or generator power.
High charge currents — up to 120A on the 12V model — enable rapid battery replenishment from AC sources. Up to six units can be paralleled for systems requiring up to 18kVA, and three-phase configurations are supported through VE.Bus. Built-in PowerAssist supplements limited AC sources during peak demand. UL 1741 and CSA C22.2 certifications ensure compliance with North American electrical codes.
Used in Alchemy industrial power systems for split-phase power delivery in off-grid lodges, mobile command platforms, commercial backup systems, and construction site power cabinets serving standard North American 120V circuits.
Common Applications
Shipping & Lead Time
Shipping & Lead Time
Ships from our Houston, TX warehouse. Most items ship within 1–3 business days.
Pickup available at 6501 Navigation Blvd, Suite E1, Houston, TX 77011. Usually ready in 2–4 days.
Freight shipping required for batteries and large enclosures. Contact us for a freight quote on orders over 150 lbs.
Warranty & Support
Warranty & Support
All Alchemy-branded products include a 2-year limited warranty covering defects in materials, assembly, and BMS performance under normal use.
Victron products carry the manufacturer’s standard warranty (typically 5 years).
For warranty claims or technical support, contact our engineering team.
