Talk to an EngineerTechnical Specifications
| Models Available | 12>12, 12>24, 12>48, 24>12, 24>24, 24>48, 48>12, 48>24, 48>48V (multiple current ratings) |
|---|---|
| Input Voltage Range | 8-17V (12V in), 16-35V (24V in), 32-70V (48V in) |
| Output Voltage Range | 10-15V (12V out), 20-30V (24V out), 40-60V (48V out) |
| Continuous Power (at 40°C) | 220-400W (model dependent) |
| Peak Power (at 25°C) | 280-480W (model dependent) |
| Peak Efficiency | 87-89% (model dependent) |
| Galvanic Isolation | 200V DC |
| Charge Profile | Adaptive 3-stage: bulk / absorption / float |
|---|---|
| Communication | Bluetooth built-in |
| Operating Temp | -20°C to +55°C (derating above 40°C) |
| Weight | 1.3 - 1.8 kg (model dependent) |
| Dimensions | 130 x 186 x 70-80 mm |
| Certifications | EN 60950, EN 61000-6-1 through 6-3, ECE R10-5 |

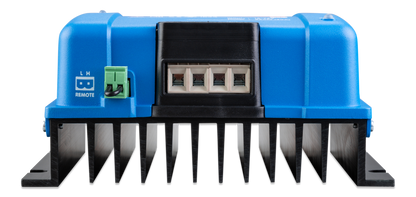

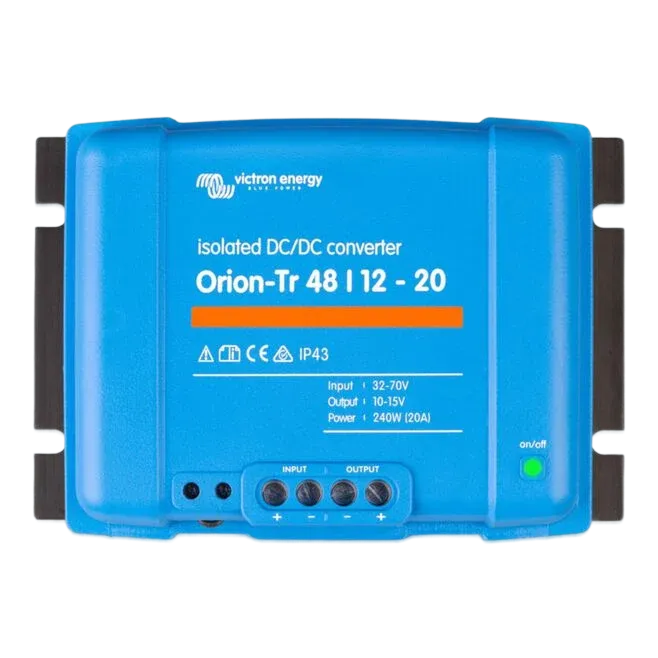

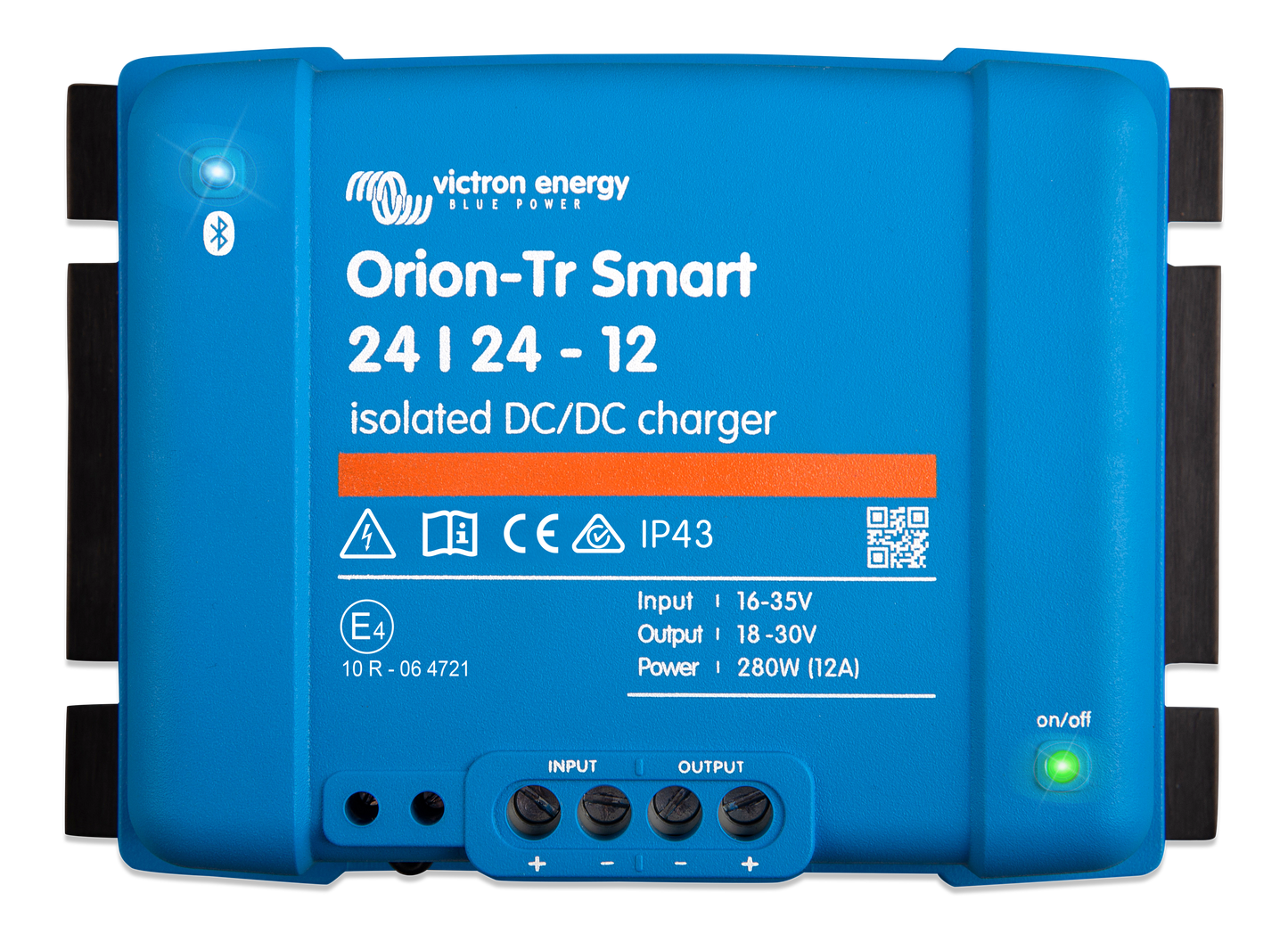

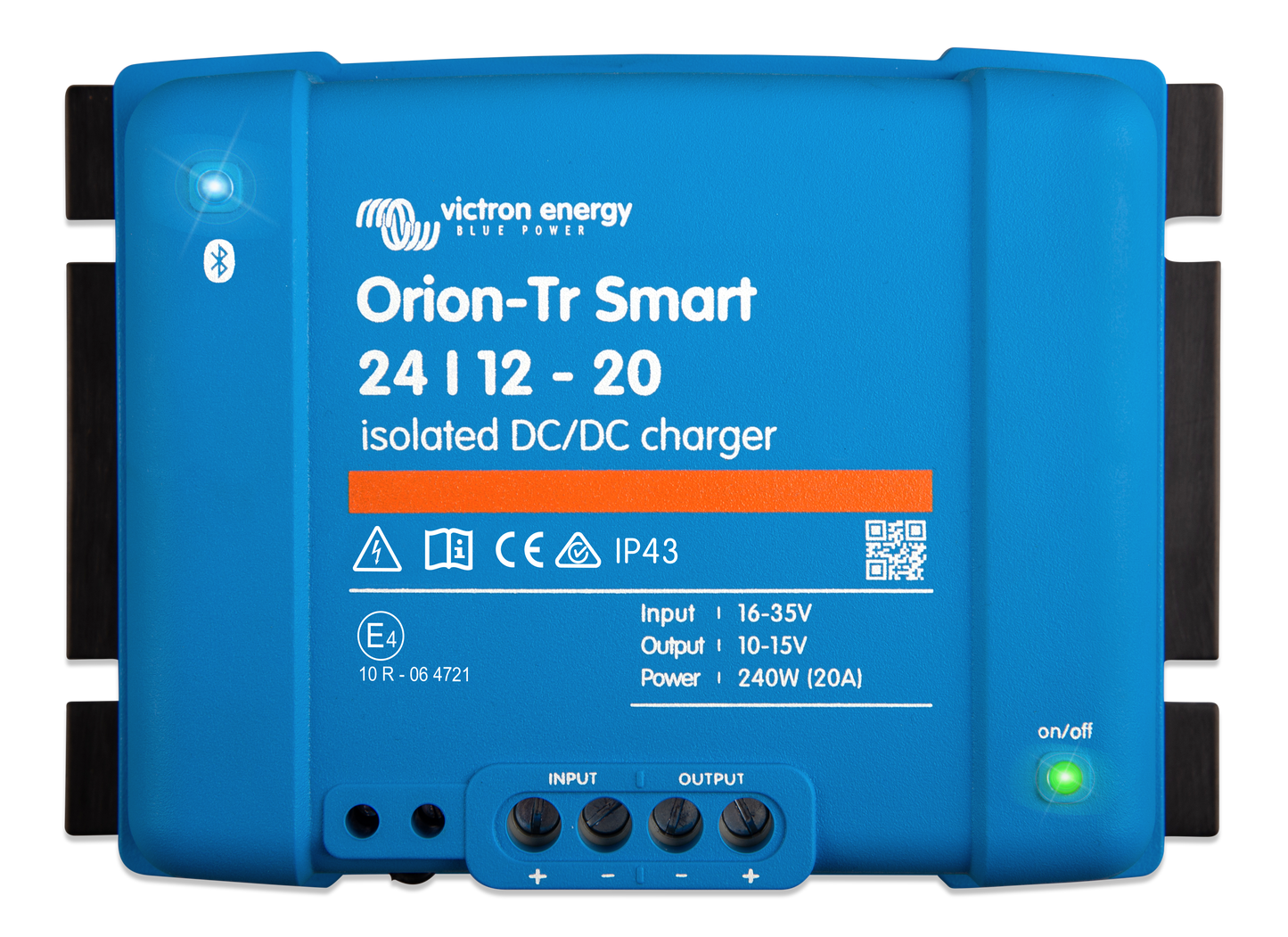

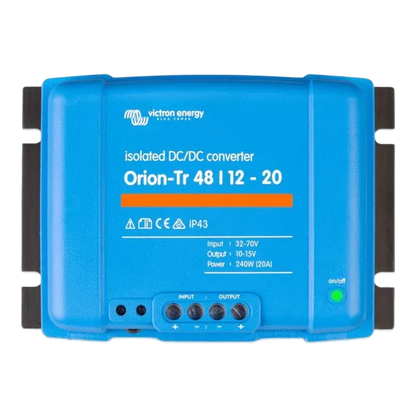

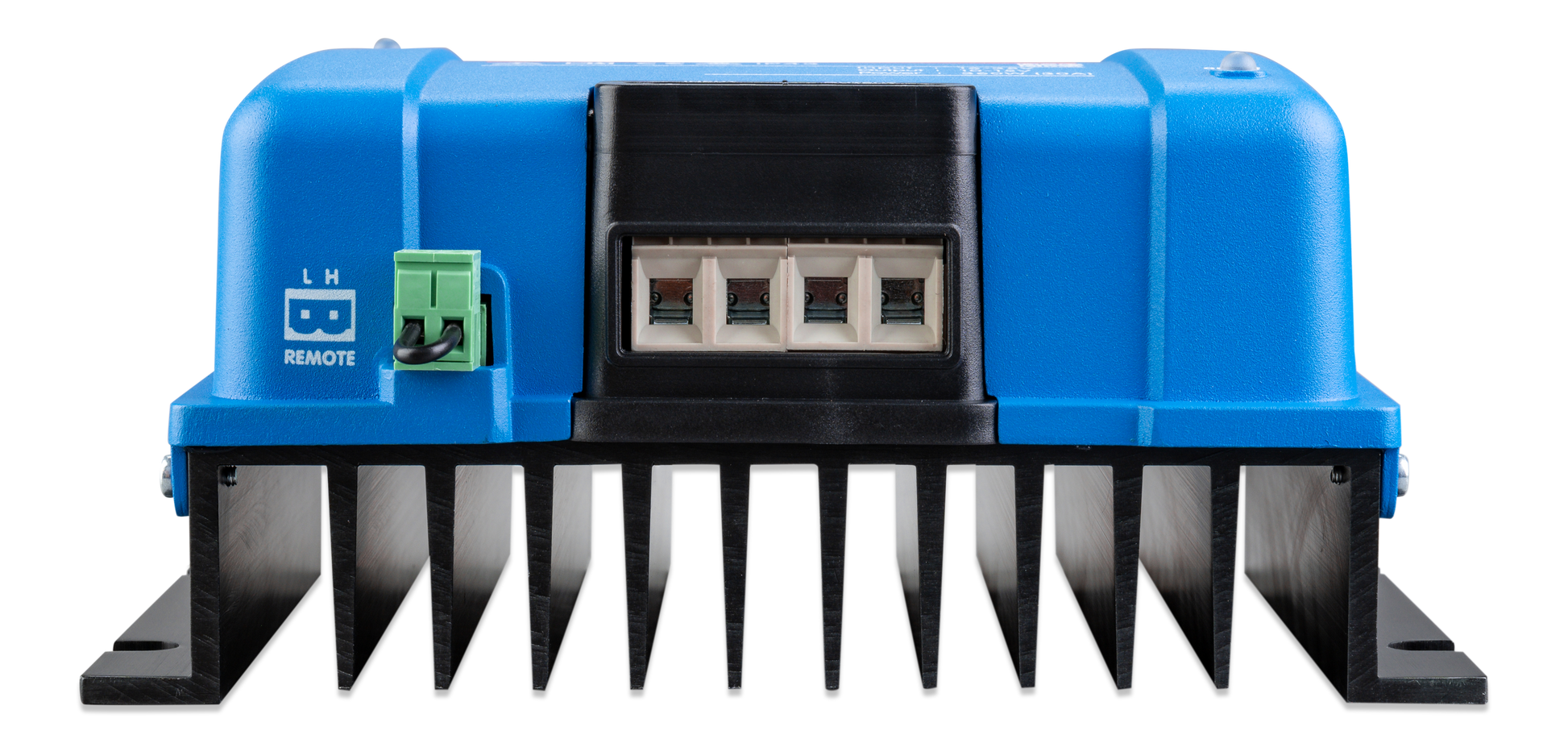

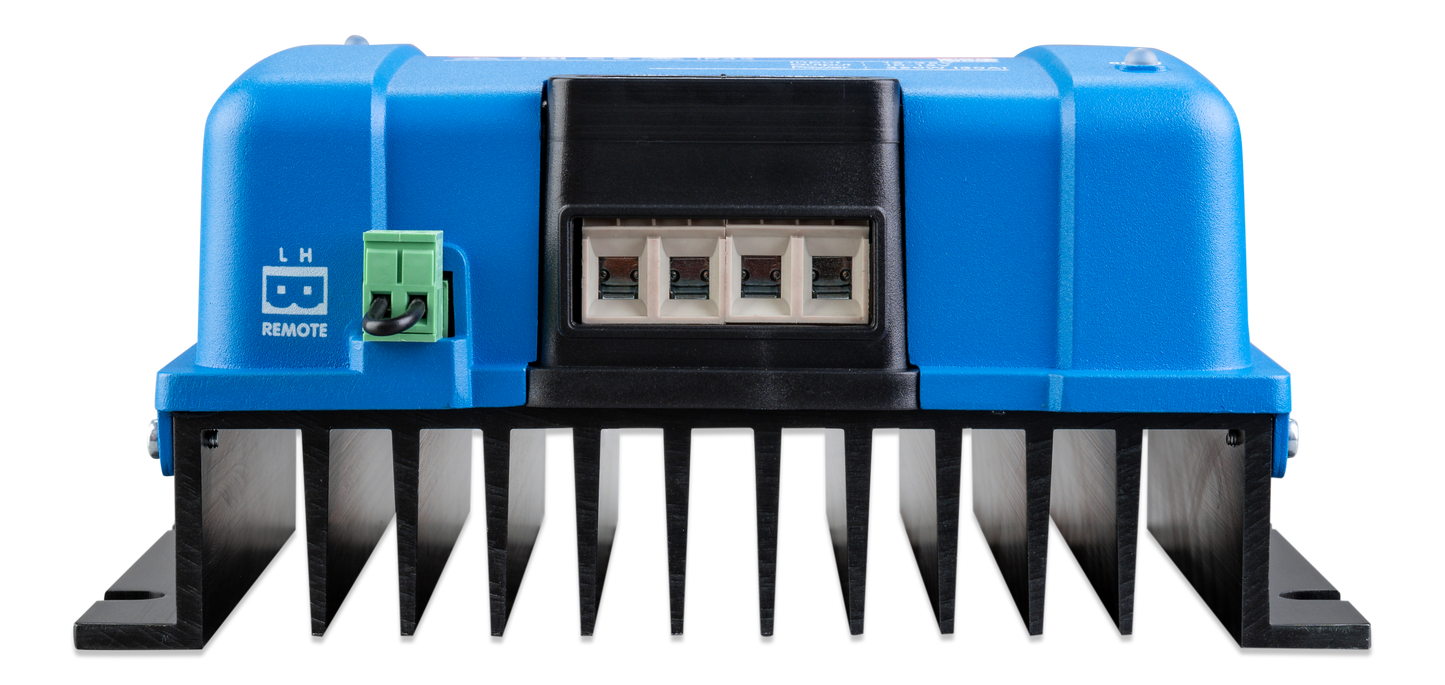

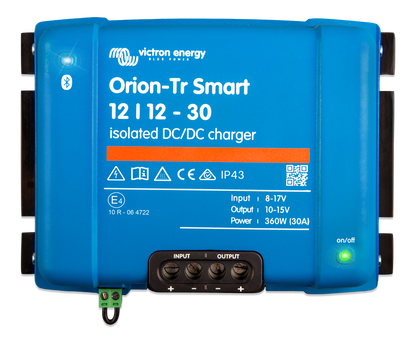

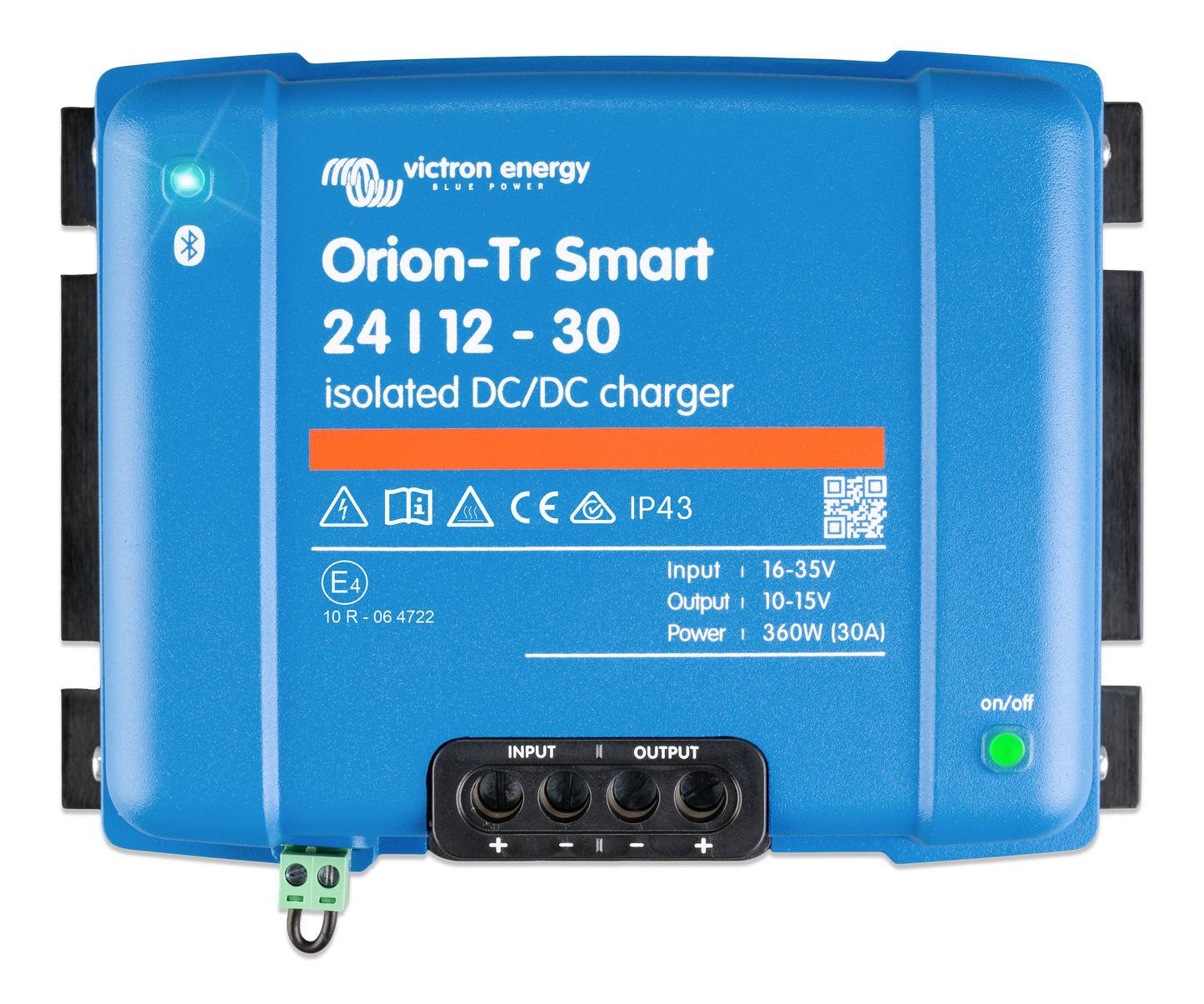

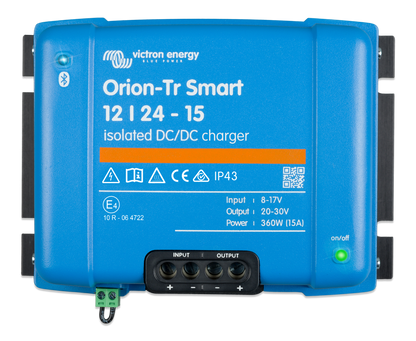

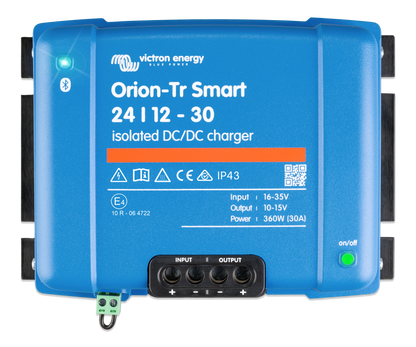

Galvanically isolated DC-DC chargers with adaptive 3-stage charging, Bluetooth configuration, and input/output combinations from 12V to 48V.

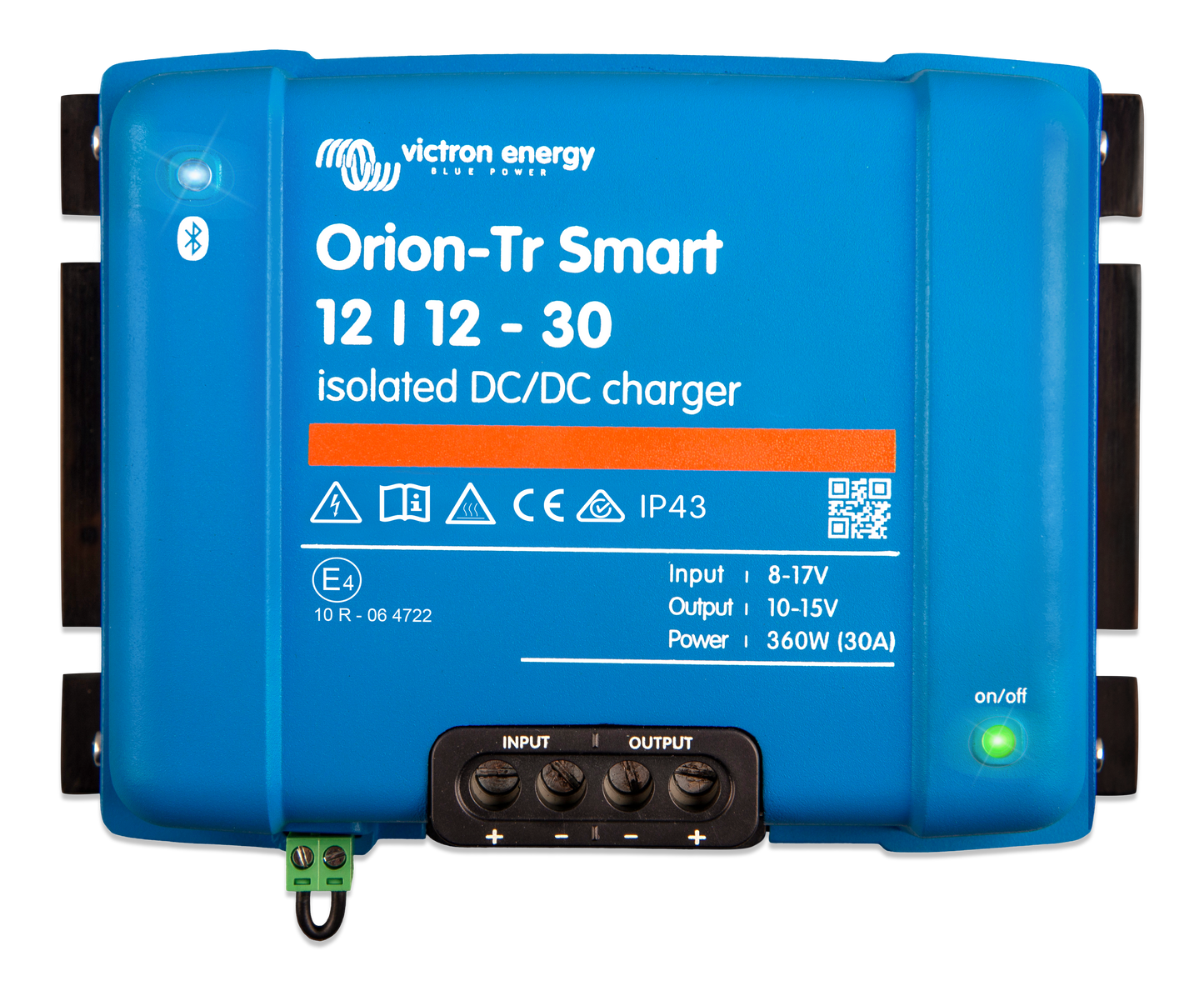

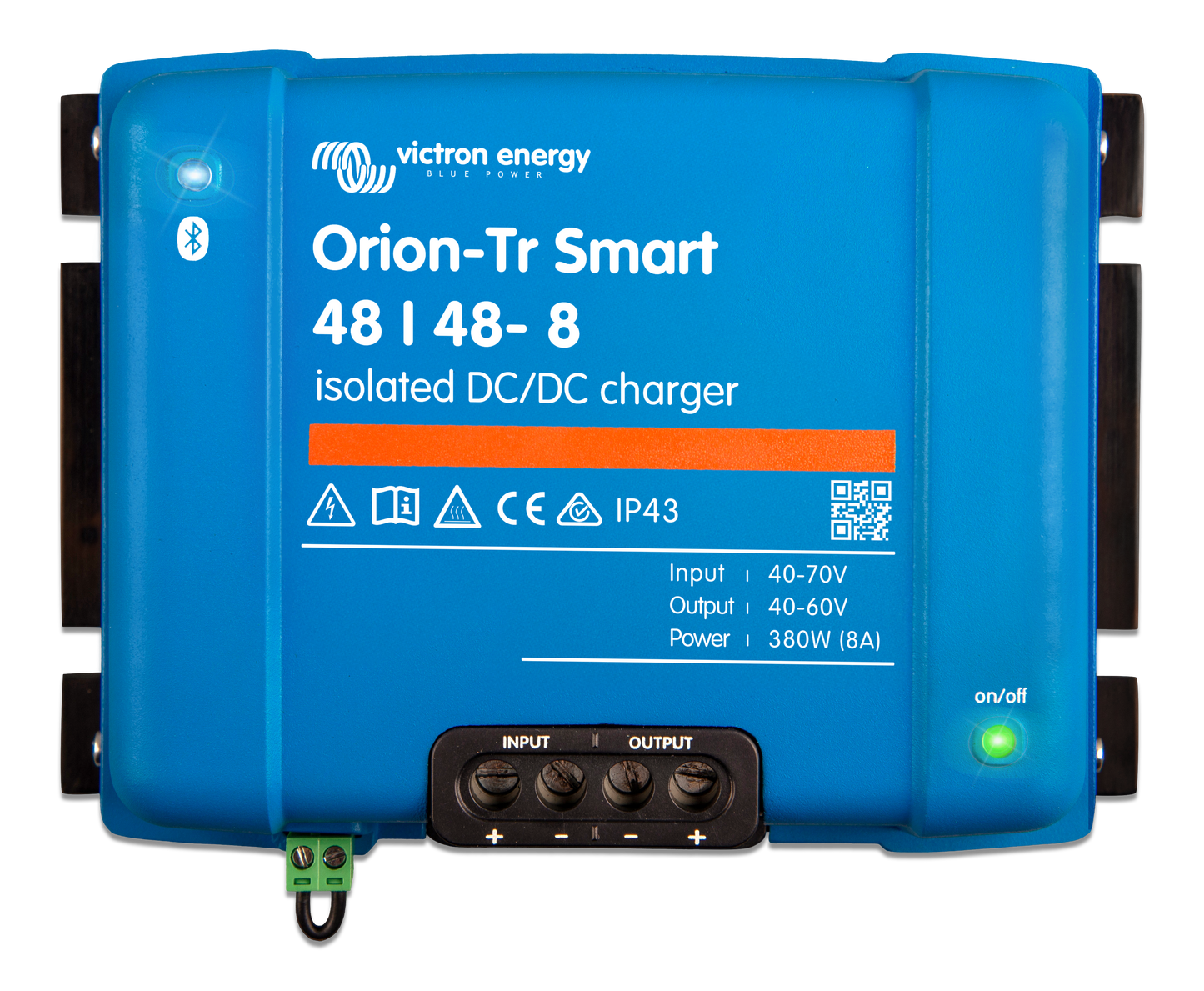

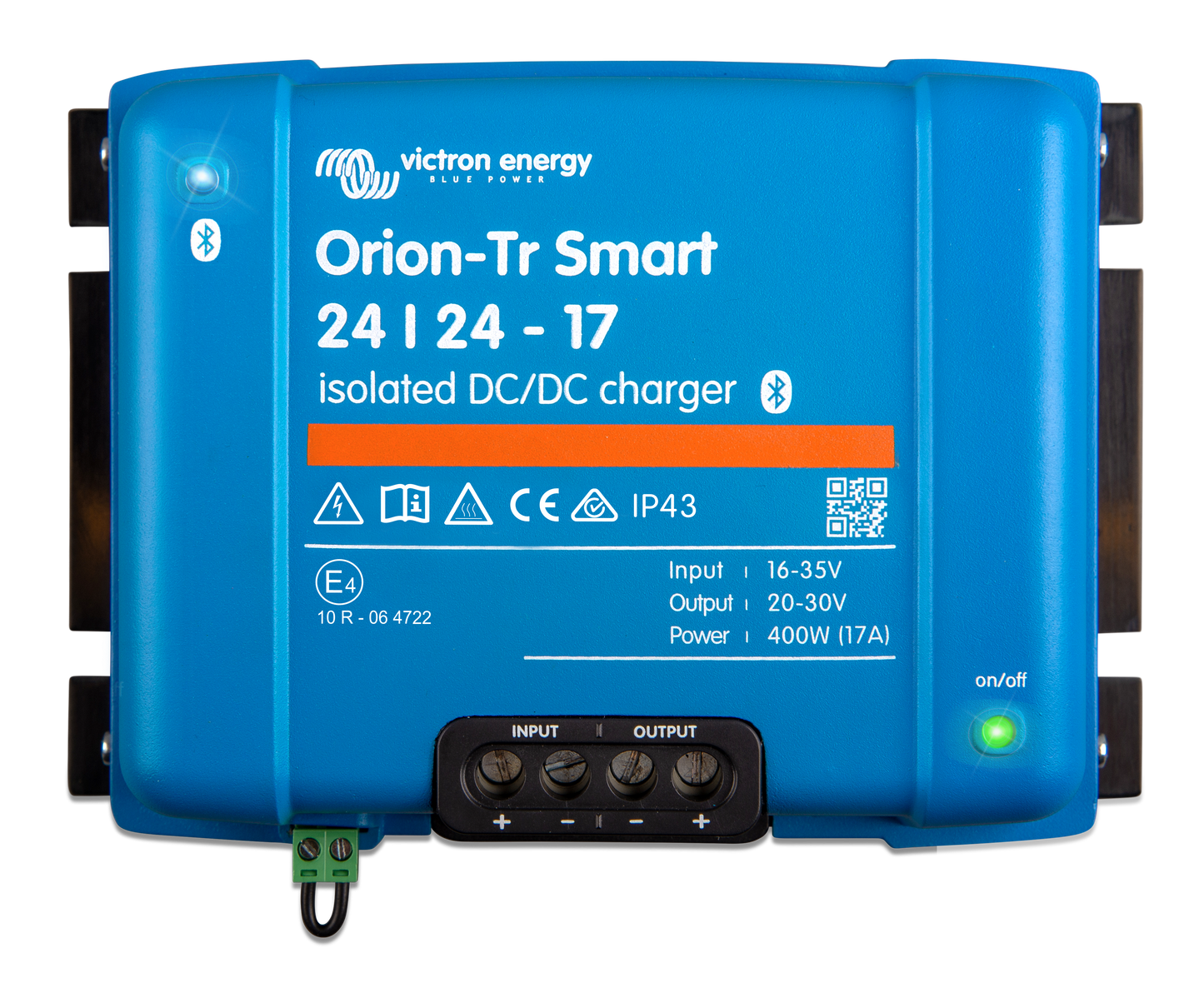

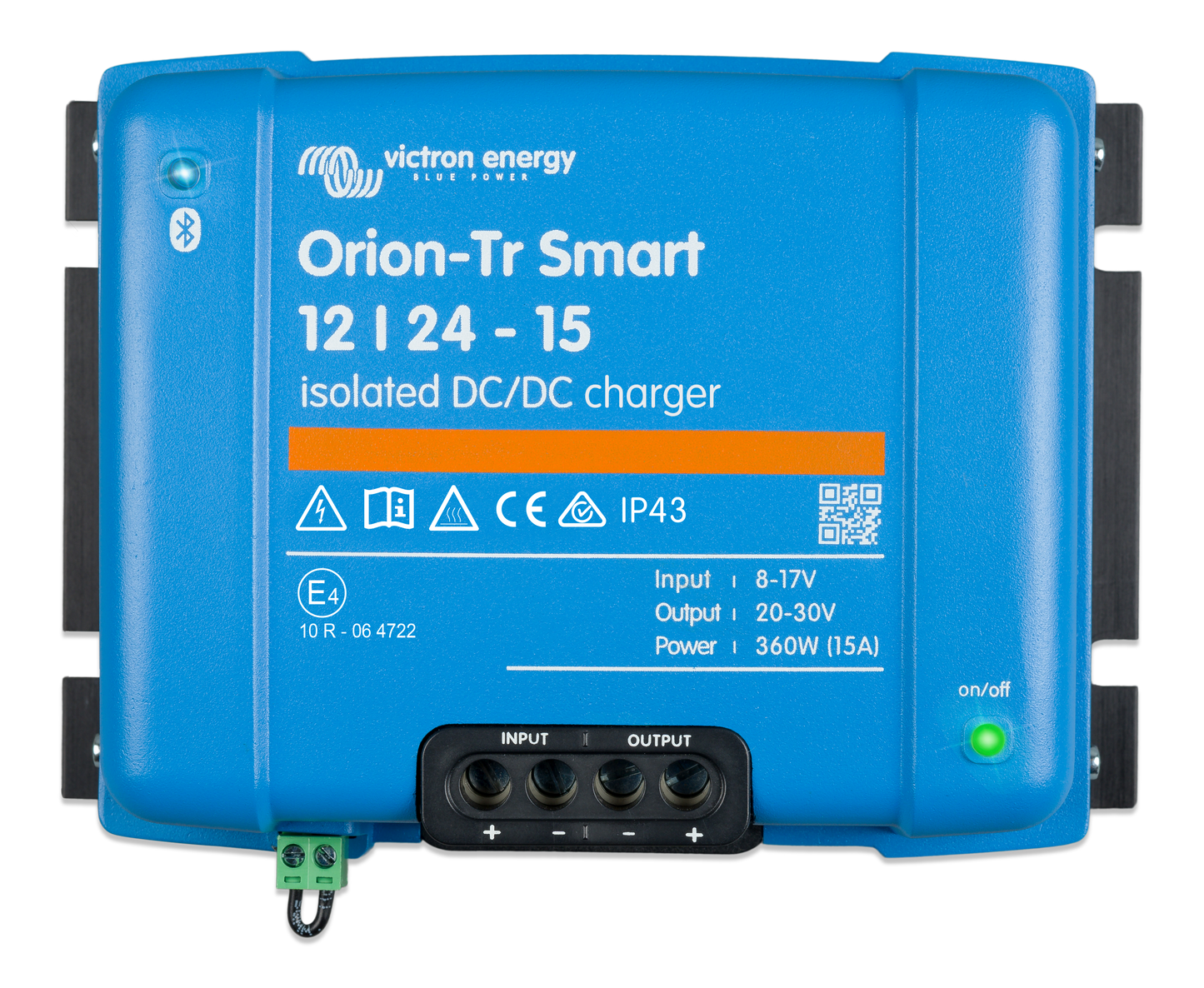

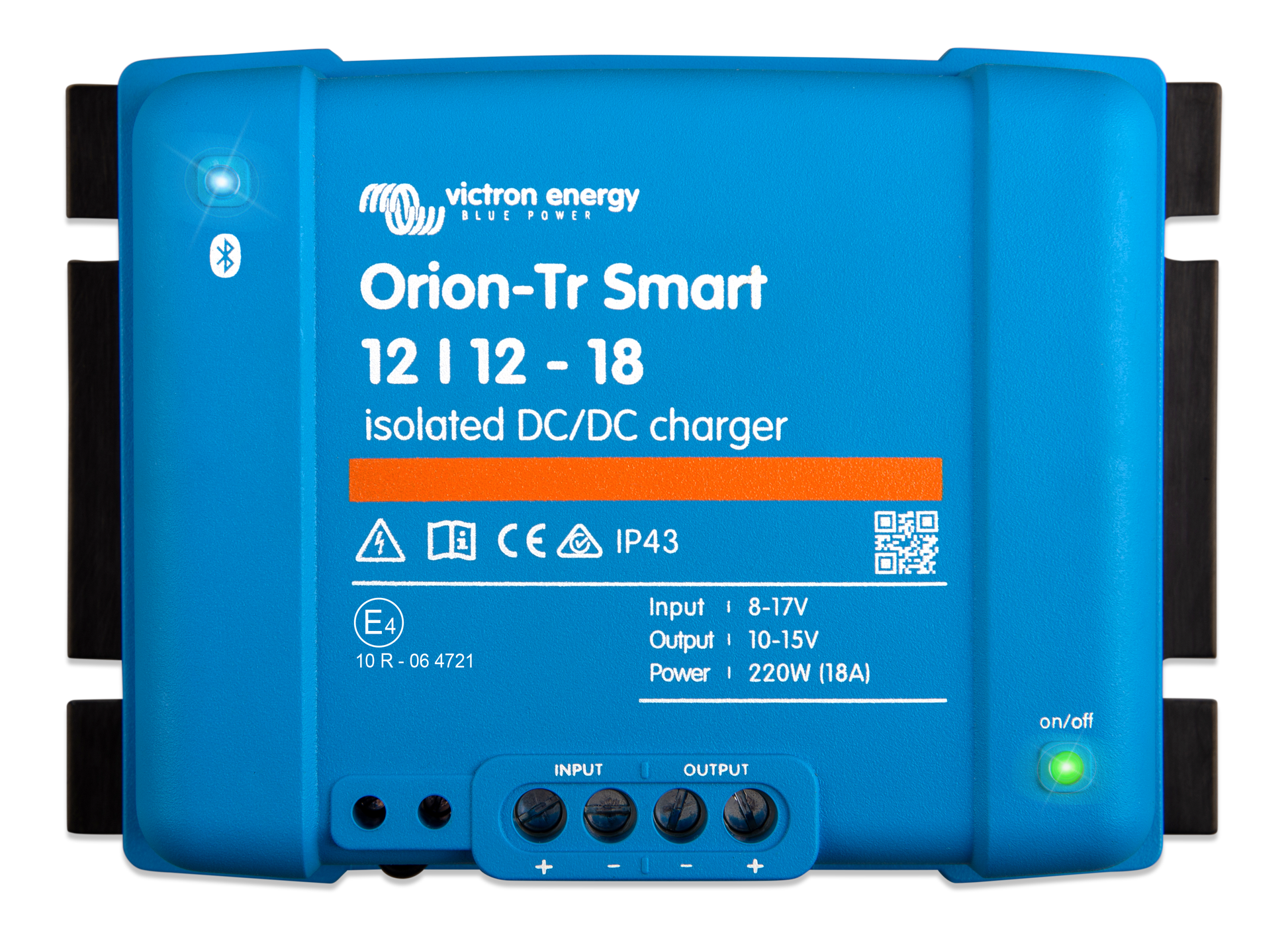

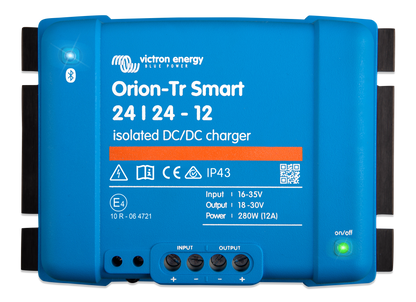

The Victron Orion-Tr Smart series provides isolated DC-DC charging between battery systems at different voltages. Available in 12V, 24V, and 48V input/output combinations (12→12, 12→24, 12→48, 24→12, 24→24, 24→48, 48→12, 48→24, 48→48), they deliver 220-400W continuous power with an adaptive bulk/absorption/float charge profile. 200V galvanic isolation protects against ground faults between battery systems.

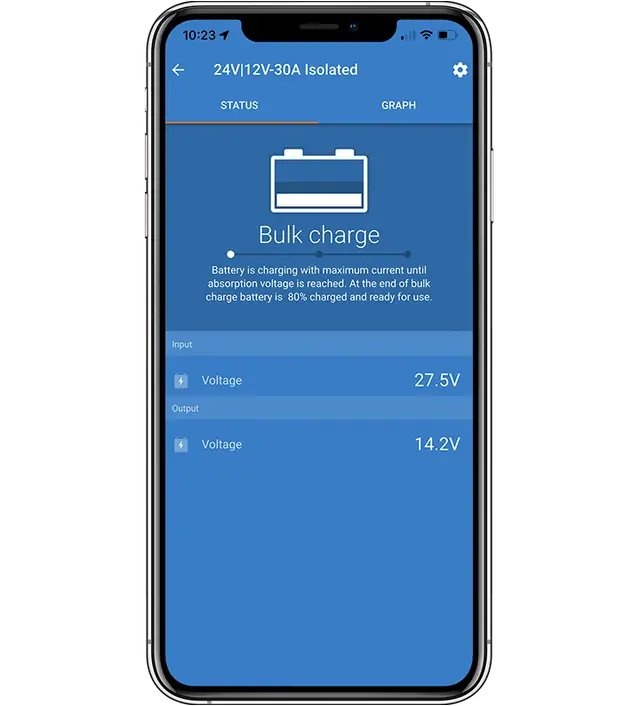

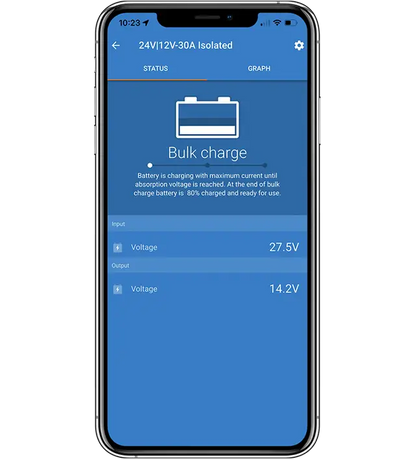

Built-in Bluetooth enables charge profile configuration and monitoring through VictronConnect. The smart charger detects engine running state and enables/disables charging automatically, protecting the starter battery in vehicle applications. Efficiency ranges from 87-89% depending on model.
Used in Alchemy mobile power systems for alternator-to-service-battery charging, solar trailer auxiliary circuits, and voltage conversion between 24V and 48V subsystems.
