Talk to an EngineerTechnical Specifications
| Type | Non-isolated DC-DC charger |
|---|---|
| Input Voltage Range | 8–17 VDC (12V input) or 16–35 VDC (24V input) |
| Output Voltage | 12.2V or 24.2V (model dependent) |
| Continuous Output Power (40°C) | 360W to 400W (model dependent) |
| Max Output Current | 15A to 30A (model dependent) |
| Communication | Bluetooth (built-in) |
| Max Efficiency | up to 88% |
|---|---|
| Protection Rating | IP43 electronics / IP22 connections |
| Weight | 1.6 kg to 1.8 kg (model dependent) |
| Warranty | 5 years |
| Certifications | EN 60950, CE |
Adaptive DC-DC charging for dual-battery and auxiliary systems.

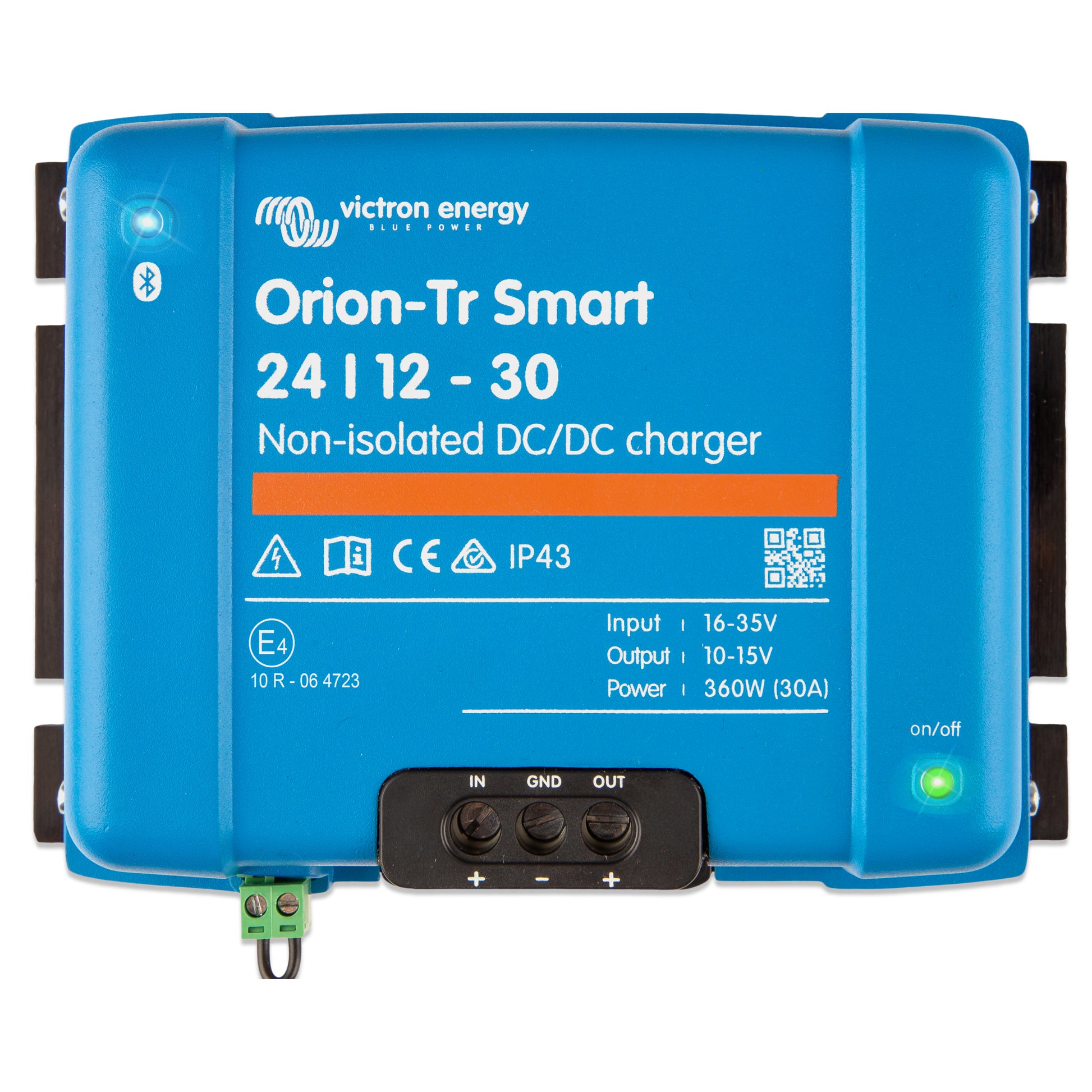

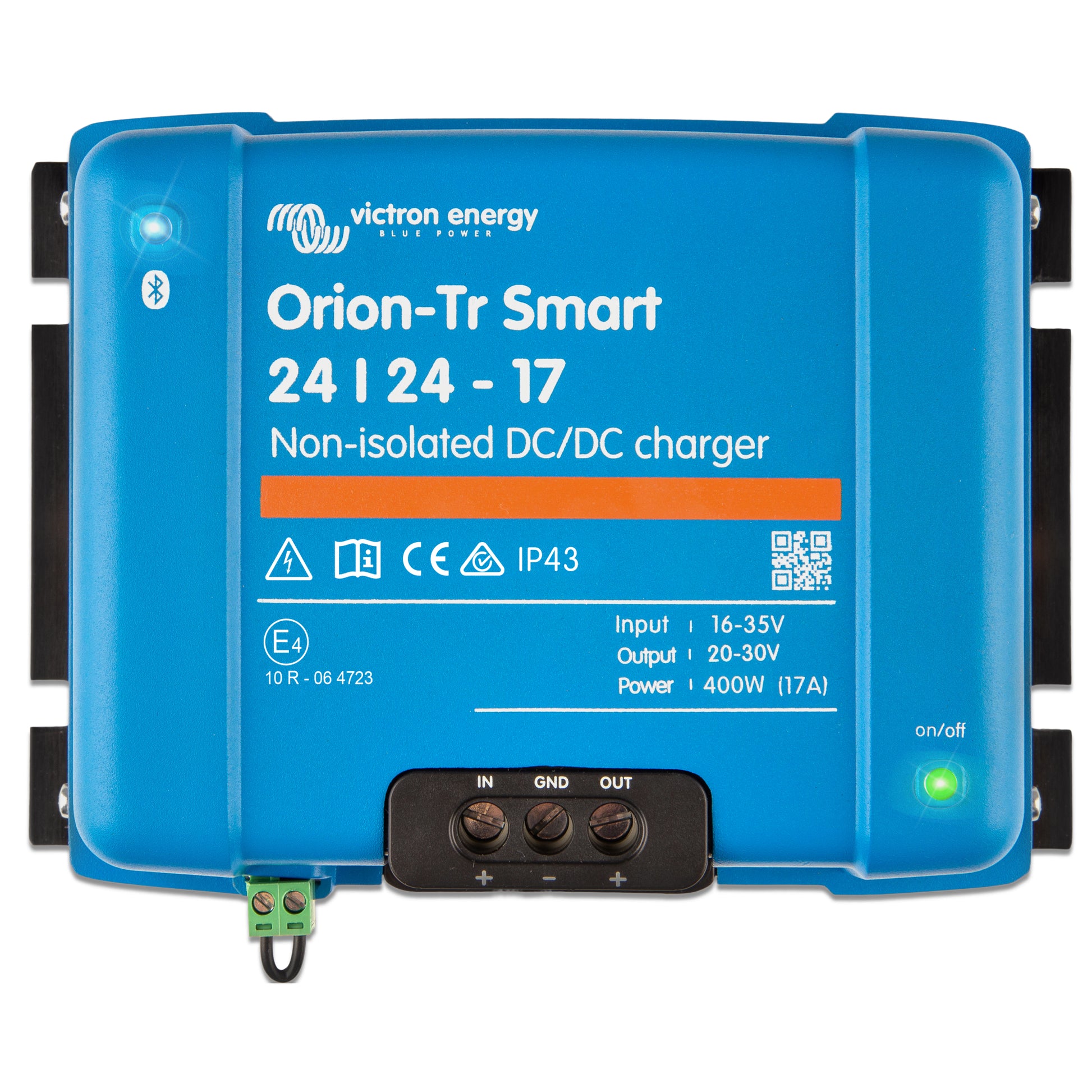

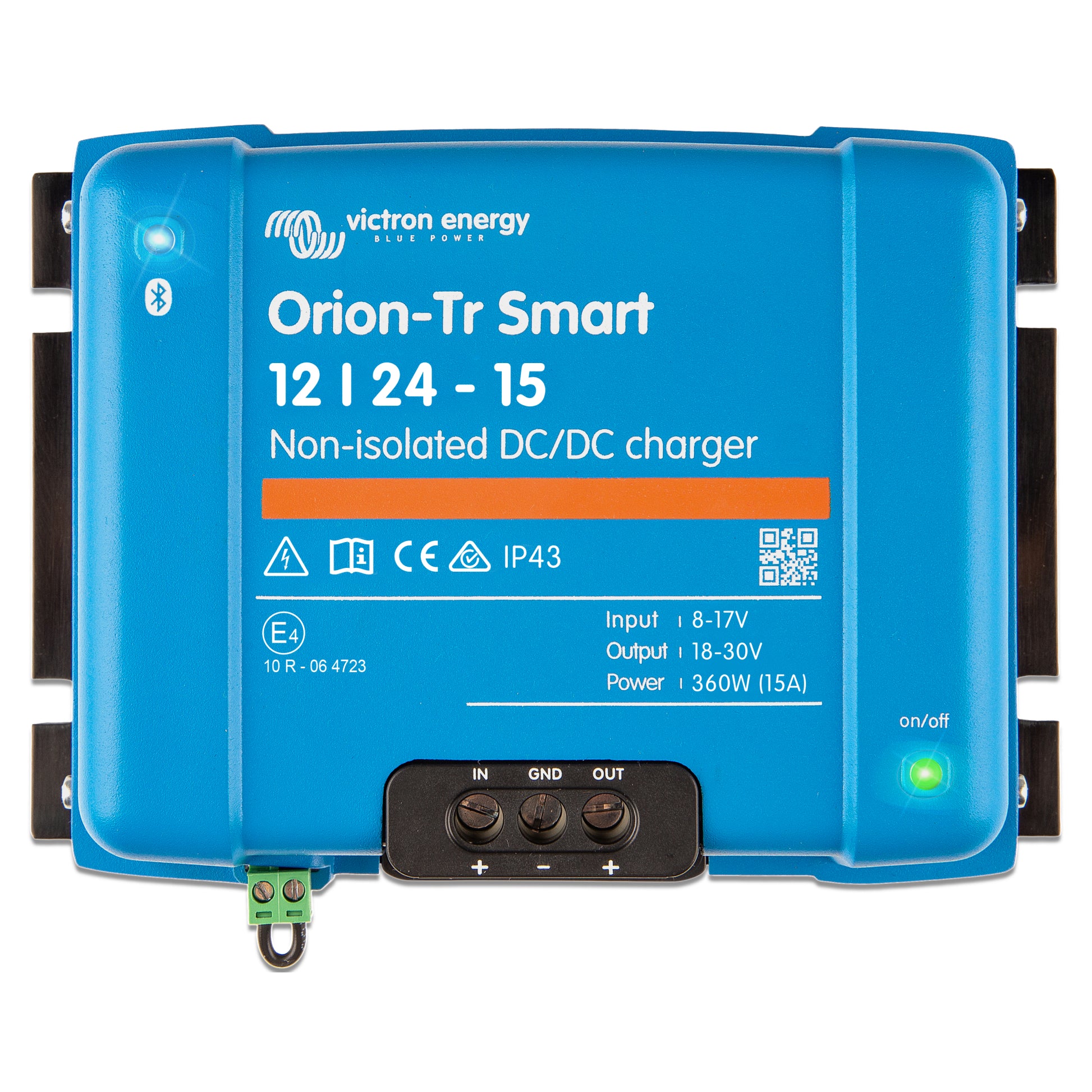

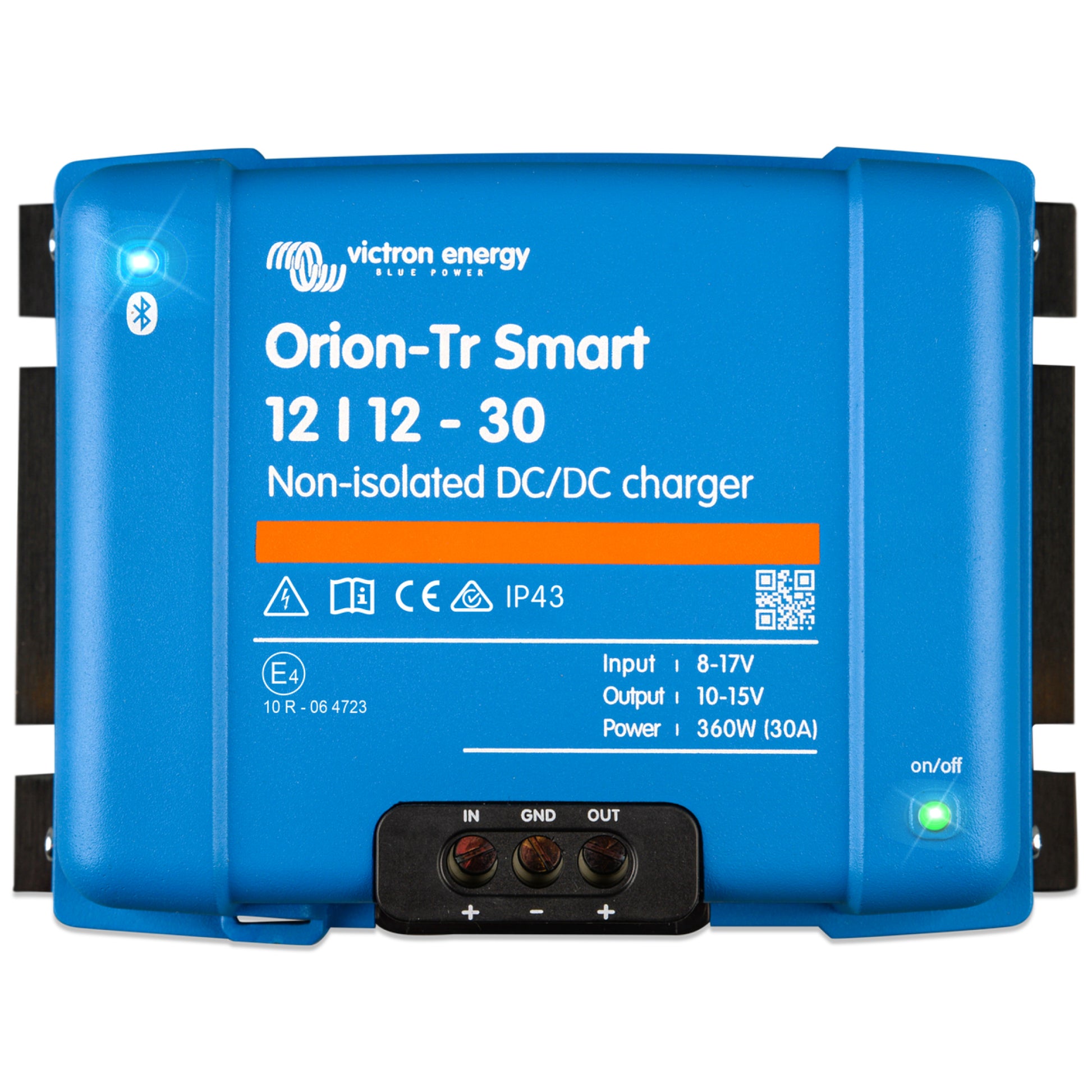

The Orion-Tr Smart non-isolated DC-DC charger draws power from a starter or primary battery and delivers a full multi-stage charge to a service battery, for installations where both banks share a common negative.
Adaptive three-stage charging, an integrated engine-shutdown detector and Bluetooth setup through VictronConnect make it well suited to vehicles and vessels with a running alternator.
Used in Alchemy mobile power systems for charging auxiliary battery banks from a vehicle alternator or primary battery.
Common Applications
