Talk to an EngineerTechnical Specifications
| Models | 12/12-50A 700W, 24/24 Dual 1400W |
|---|---|
| Input Voltage | 10-16V or 20-32V |
| Output Current | 50A or dual-output |
| Charge Algorithm | Adaptive multi-stage |
| Battery Types | Li-ion, AGM, Gel, Flooded |
| Communication | Bluetooth, VE.Direct |
| Engine Detect | Programmable |
|---|---|
| Protection Rating | IP43 |
| Efficiency | up to 96% |
| Operating Temp | -40°C to +60°C |
| Weight | 2.2 / 3.5 kg |
| Warranty | 5 years |

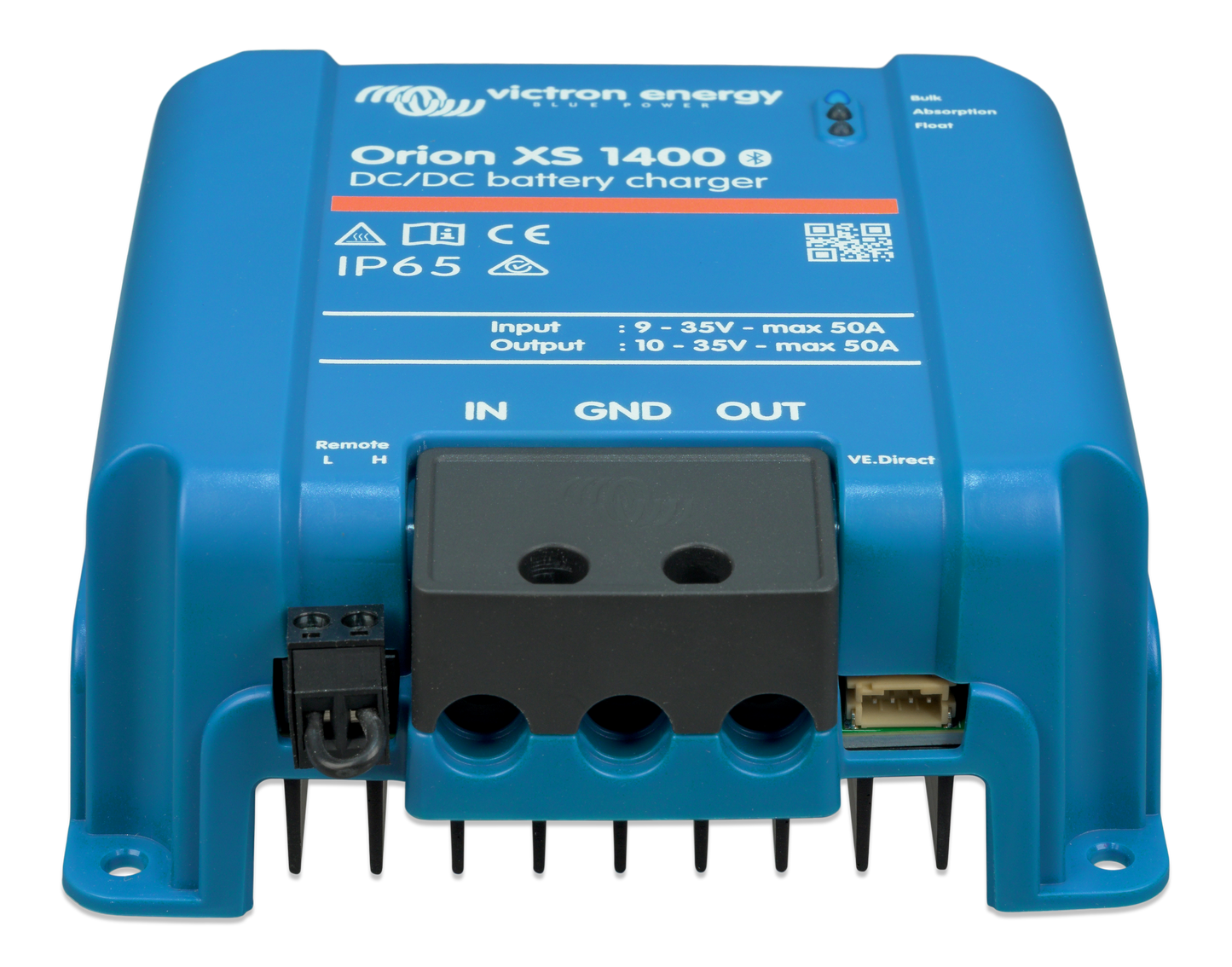

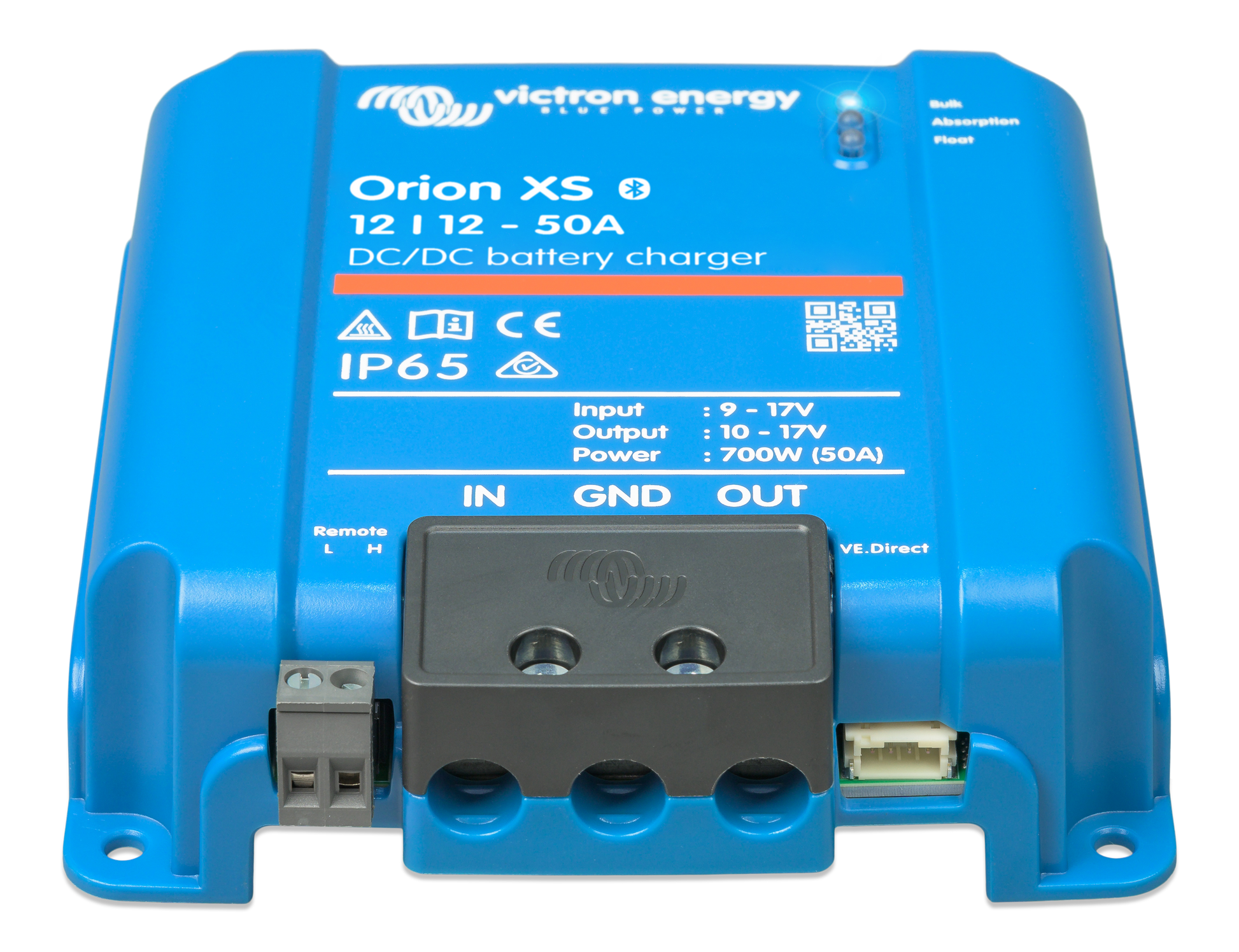

High-power isolated DC-DC charger for alternator-to-service-battery charging in commercial vehicles, trucks, and fleet installations.
The Victron Orion XS provides fully isolated DC-DC charging from a vehicle alternator to a secondary battery bank, supporting lithium-ion, AGM, gel, and flooded chemistries with an adaptive multi-stage charge algorithm. The 12V/50A model delivers 700W, while the 24V dual-output model provides 1,400W of charge power — sufficient for rapid replenishment of large service batteries during drive time.
A programmable engine-detect function automatically starts and stops charging based on alternator voltage, eliminating the need for a physical ignition signal wire in most installations. Bluetooth and VE.Direct communication enable monitoring through VictronConnect and integration with GX devices for fleet-wide visibility. The IP43-rated enclosure and -40°C to +60°C operating range make it suitable for underhood, engine-bay, and chassis-mount installations.
Used in Alchemy industrial power systems for alternator-to-lithium charging in surveillance vehicles, mobile command trucks, construction fleet support vehicles, and any commercial platform where drive-time charging must replenish a substantial service battery bank.
