Talk to an EngineerTechnical Specifications
| Battery Capacity | 3840Wh |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Cycle Life | 3,500+ cycles to 80%+ capacity |
| AC Output | 4200W continuous at 120V |
| 240V Output | 8400W at 240V with two units and the 240V connect box |
| DC 12V Output | 12V/30A max |
| USB-C Output | 100W PD (5V/9V/12V/20V) |
| USB-A Output | 18W max (4 ports) |
| Car Port | 12V/10A |
| DC5525 Output | 12V/5A |
| AC Input | 3200W with 30A cable, 1800W with 15A cable |
| Solar Input (XT60-M) | 3000W max (2 x 1500W), Voc 32V-150V, 20A max |
|---|---|
| Solar Input (DC5521) | Voc 12V-30V, 150W max, 7A max |
| Car Input | 12V-30V DC, 150W max, 7A max |
| UPS Output | 3600W max with 30A cable, 1800W with 15A cable |

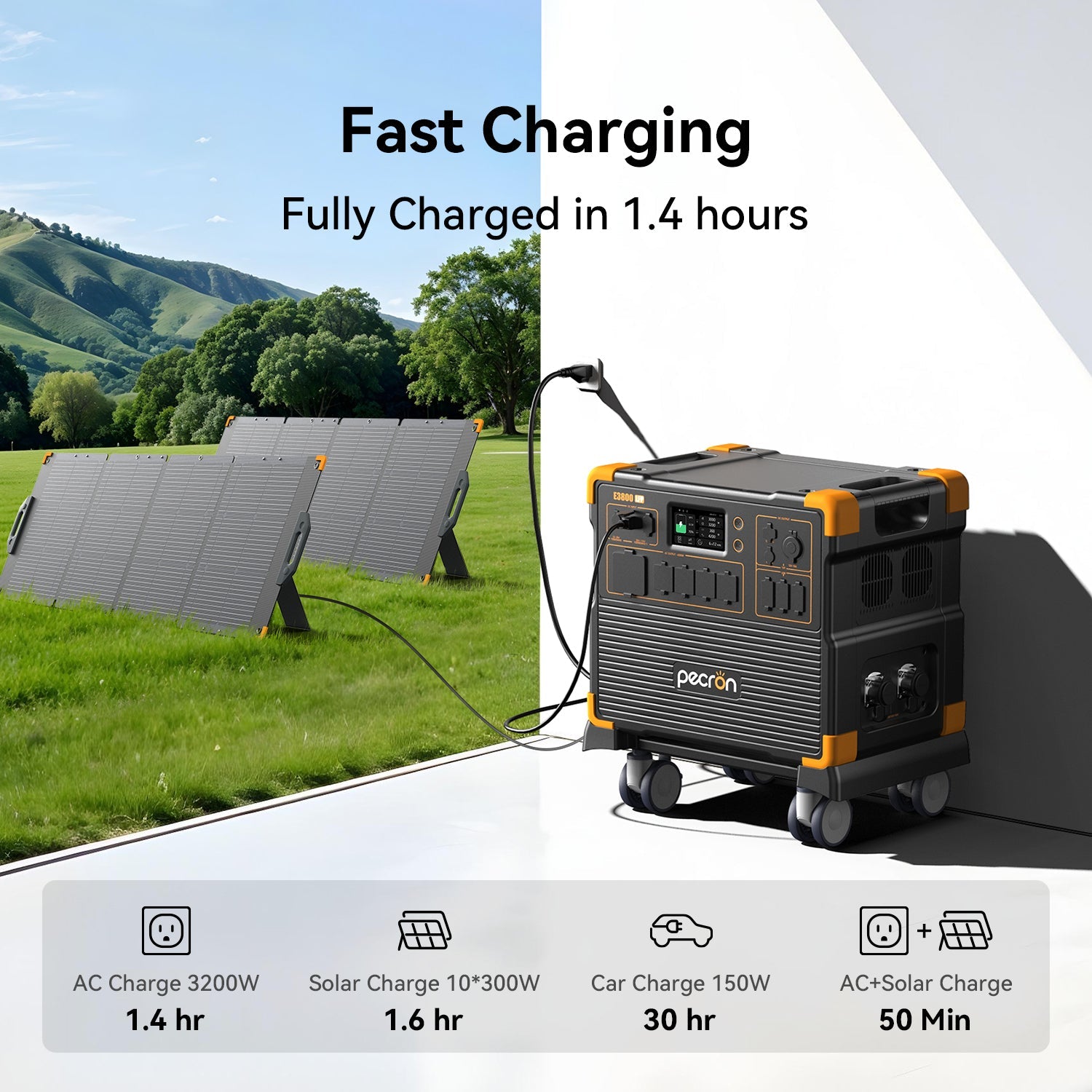

| AC Charging Time | 1.4 hours with 30A cable |
| Expandable Capacity | Up to 26,880Wh with expansion batteries |
| Dimensions | L17.5in x W12.1in x H14.7in (445 x 307 x 373 mm) |
| Weight | Approximately 87.3 lbs (39.6 kg) |
| Charge Temperature | 32F to 113F (0C to 45C) |
| Discharge Temperature | -4F to 113F (-20C to 45C) |
| Warranty | 3+2 years |
The largest of the E-series: 3840Wh of LiFePO4 capacity and a 4200W inverter, expandable to 26,880Wh and capable of 8400W at 240V when two units are paired.
Key Features
- 4200W AC Output - Runs full-size appliances and shop tools at 120V
- 240V Capable - Two units plus the 240V connect box deliver 8400W at 240V
- 3840Wh LiFePO4 Battery - Rated 3,500+ cycles to 80% capacity
- 3000W Solar Input - Dual XT60 inputs at 1500W each, 32V to 150V open circuit
- 1.4-Hour AC Charging - 3200W on a 30A cable, 1800W on standard 15A
- Expandable to 26,880Wh - Scales to multi-day off-grid runtime
- 3600W UPS Output - Substantial passthrough capacity for protected loads

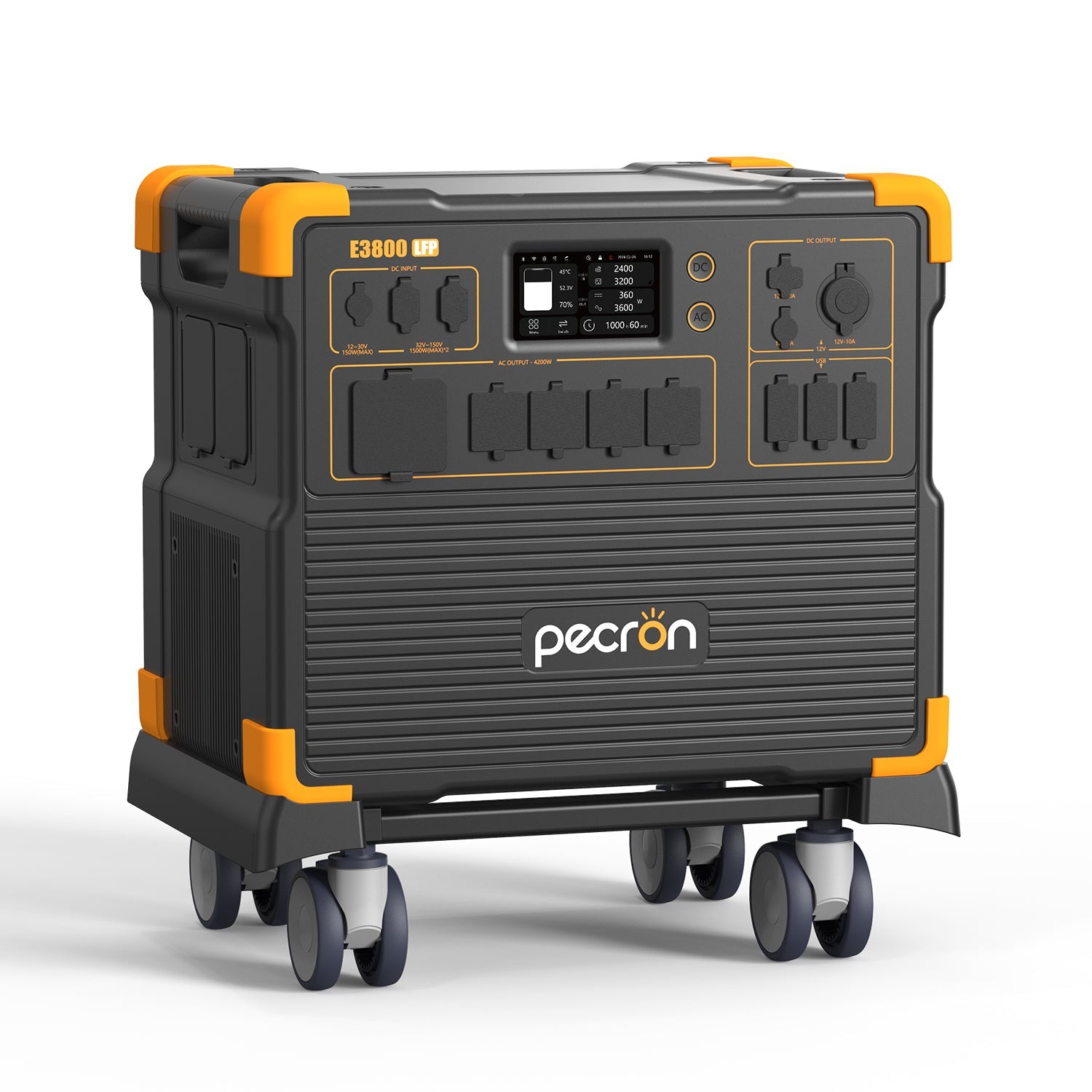

- 14 Output Ports - 12V/30A DC, 100W USB-C, four USB-A, car port, and DC5525
- Bluetooth App Control - Monitor state of charge and adjust charging remotely
Ideal For
- Whole-home backup including 240V loads
- Off-grid cabins and extended remote operations
- Contractor and jobsite power
- Mobile production and event power
- Large expandable solar generator systems
Backed by a 3+2 year manufacturer warranty.
