| Nominal Power | 200W (-5W to +10%) |
|---|---|
| Cell Type | Monocrystalline |
| Cell Efficiency | 22.5% or higher |
| Operating Voltage | 36V plus or minus 5% |
| Operating Current | 5.4A plus or minus 5% |
| Open-Circuit Voltage (Voc) | 41.4V plus or minus 5% |
| Short-Circuit Current (Isc) | 5.7A plus or minus 5% |
| Connector Type | MC4 |
|---|---|
| Waterproof Rating | IP67 |
| Folded Dimensions | 561 x 595 x 40 mm |
| Unfolded Dimensions | 2064 x 595 x 5 mm |
| Weight | 17.2 lbs (6.9 kg) |
| Operating Temperature | -10C to +65C (14F to 149F) |
| Design | 4-fold portable |

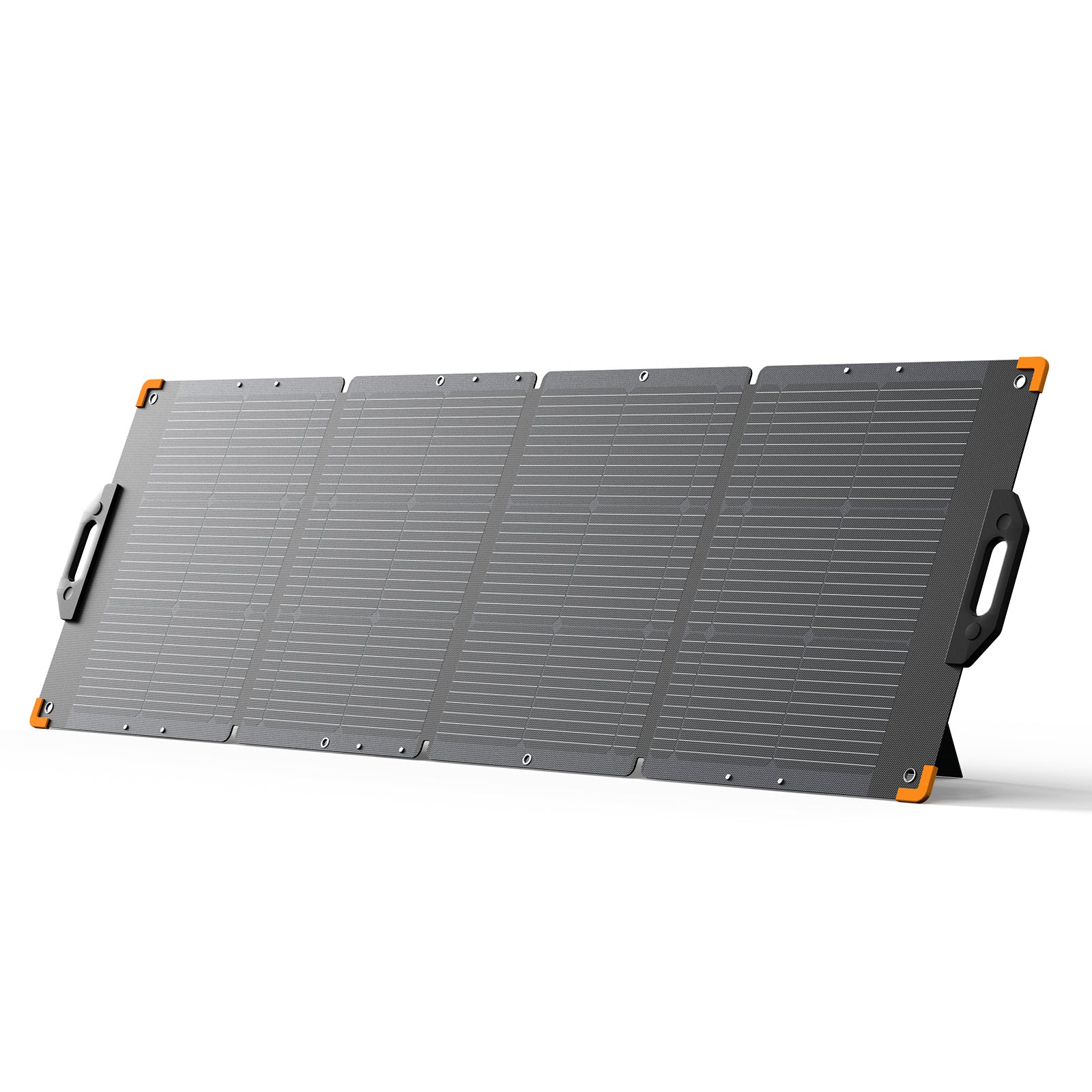

A four-fold 200W monocrystalline panel rated IP67 and weighing 17.2 lbs. Universal MC4 connectors let it feed Pecron power stations directly or wire in parallel for larger arrays.
Key Features
- 200W Nominal Output - 36V operating voltage at 5.4A
- 22.5%+ Cell Efficiency - Monocrystalline cells that hold output in hot weather
- IP67 Waterproof - Rated for sustained outdoor exposure

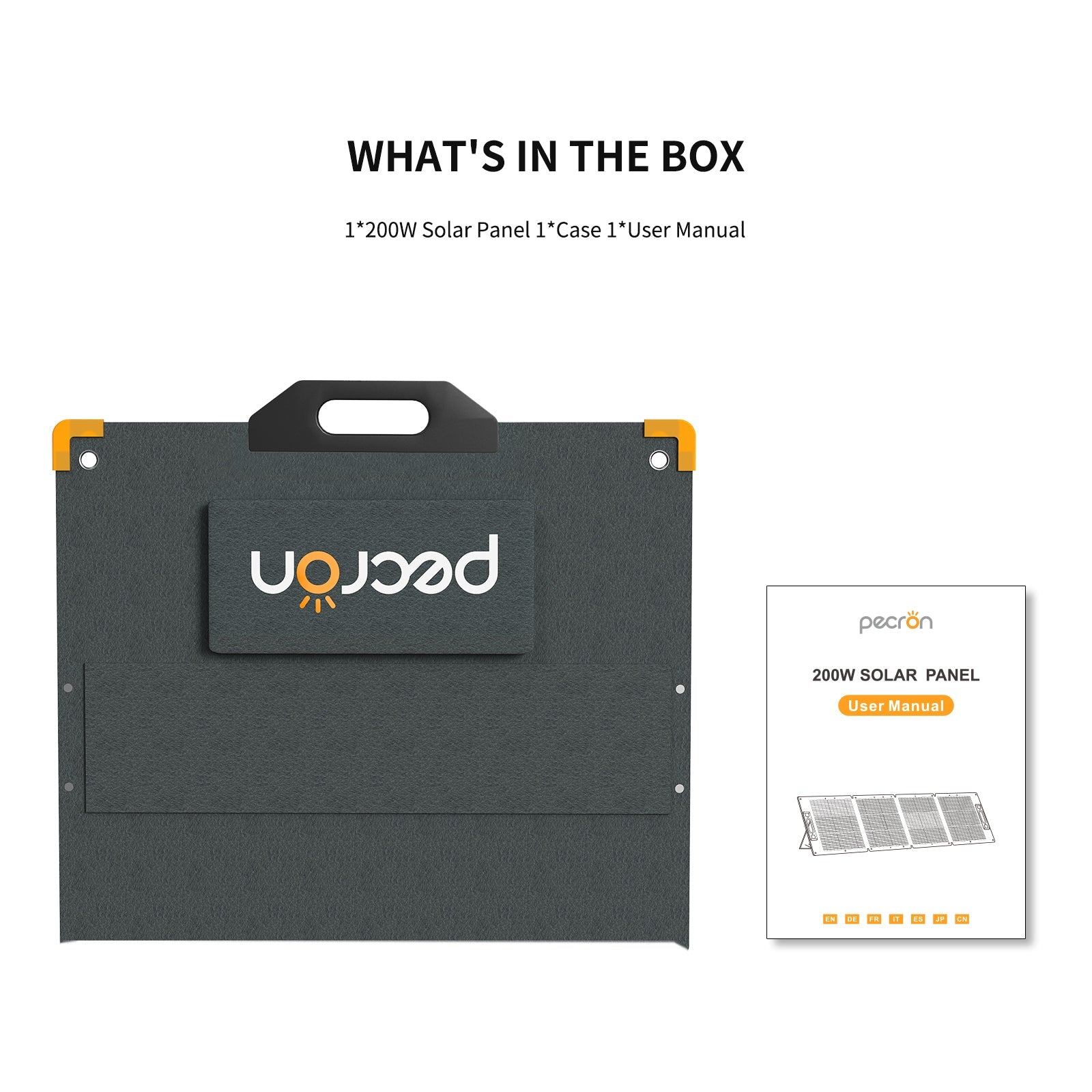

- Four-Fold Design - Folds to 561 x 595 x 40 mm for trunk or gear storage
- Universal MC4 Connectors - Works with most solar-compatible power stations and controllers
- Parallel Capable - Chain multiple panels to reach a station's full input rating
- Wide Temperature Range - Operates from -10°C to +65°C
Ideal For
- Portable solar generator setups
- Camping, overland, and van life
- Emergency preparedness kits
- Remote job and monitoring sites
- Supplementing an existing array
1-year manufacturer warranty included.
