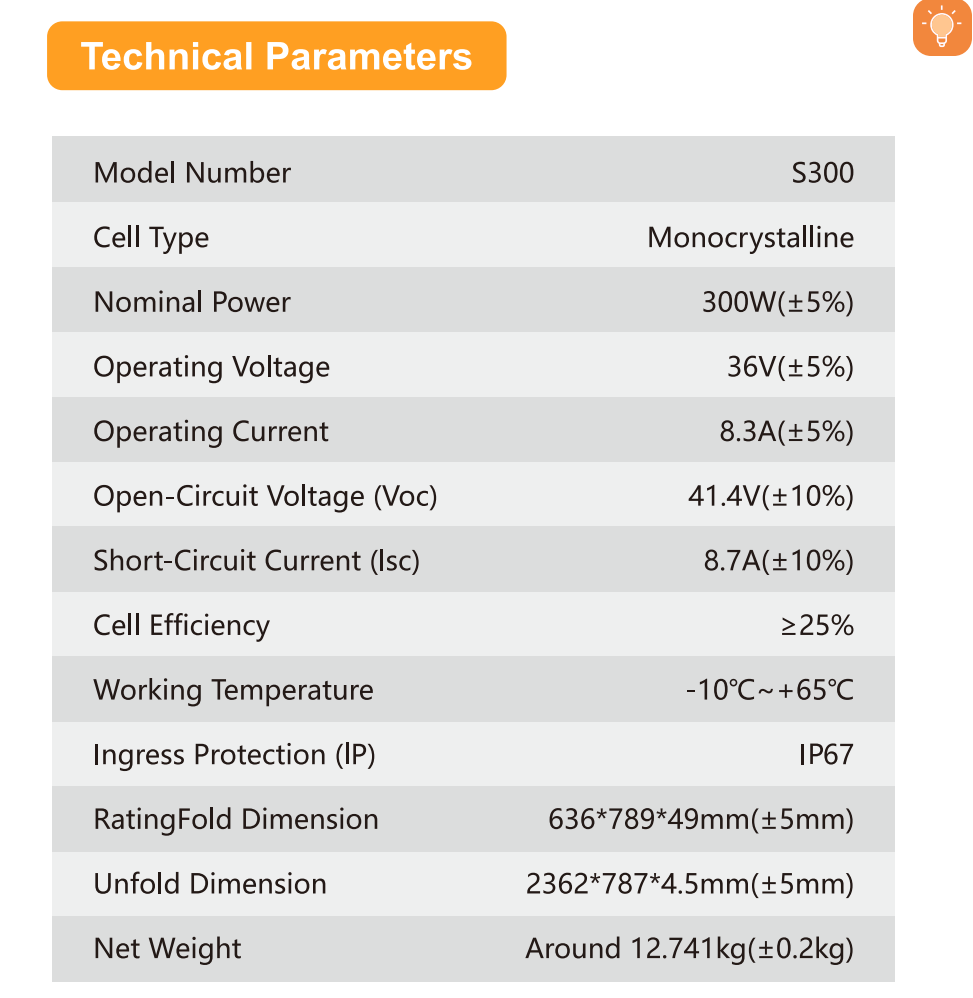

Talk to an EngineerTechnical Specifications
| Maximum Power | 300W +5% |
|---|---|
| Cell Type | Monocrystalline |
| Cell Efficiency | 25% or higher |
| Operating Voltage | 36V +5% |
| Operating Current | 8.3A +5% |
| Open-Circuit Voltage (Voc) | 41.4V +5% |
| Short-Circuit Current (Isc) | 8.7A +5% |
| Waterproof Rating | IP67 |
|---|---|
| Folded Dimensions | 636 x 789 x 49 mm |
| Unfolded Dimensions | 2362 x 787 x 4.5 mm |
| Weight | Approximately 28.1 lbs (12.74 kg) |
| Operating Temperature | -10C to +65C (14F to 149F) |
| Design | 4-fold portable |

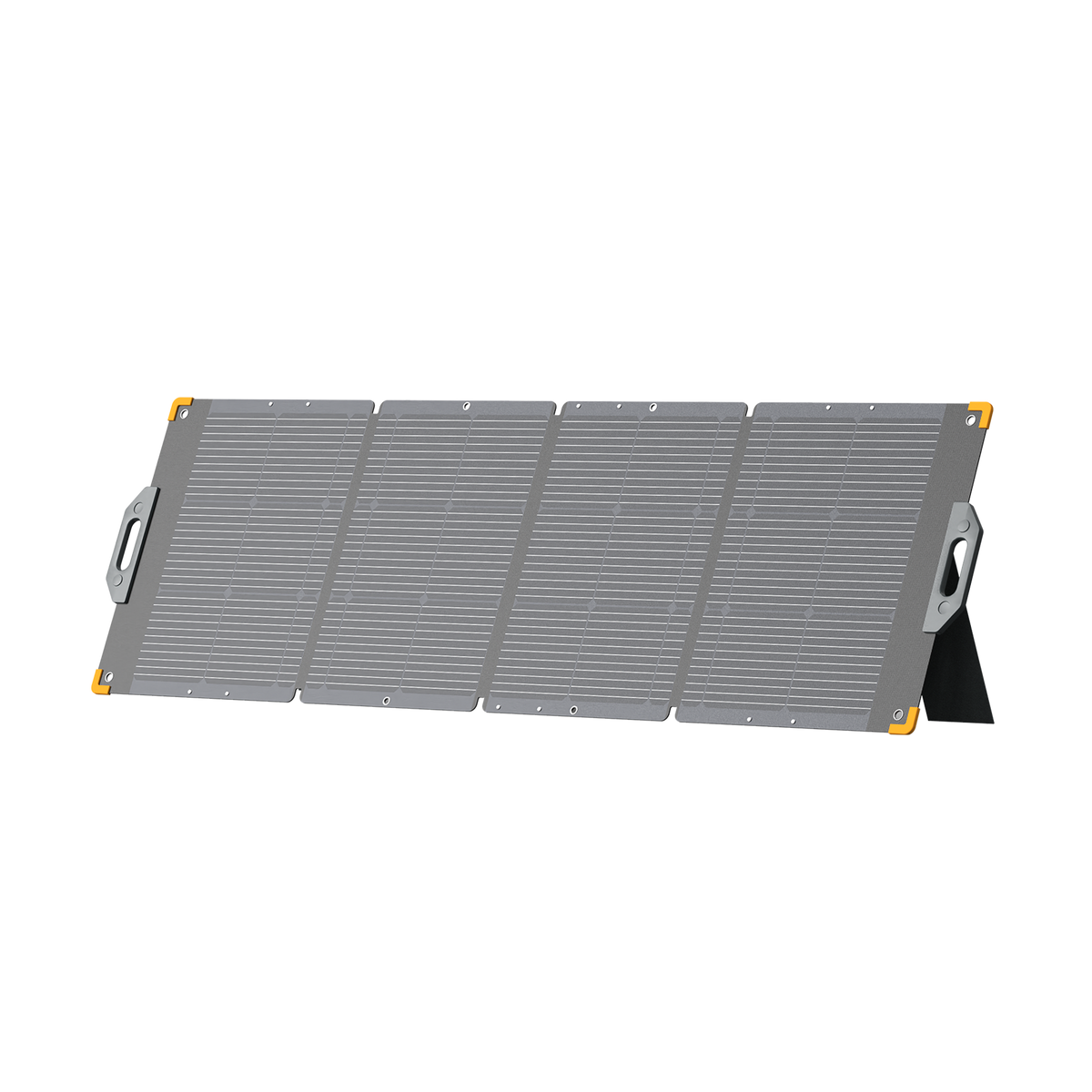

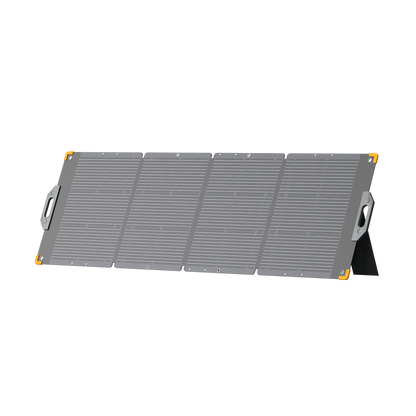

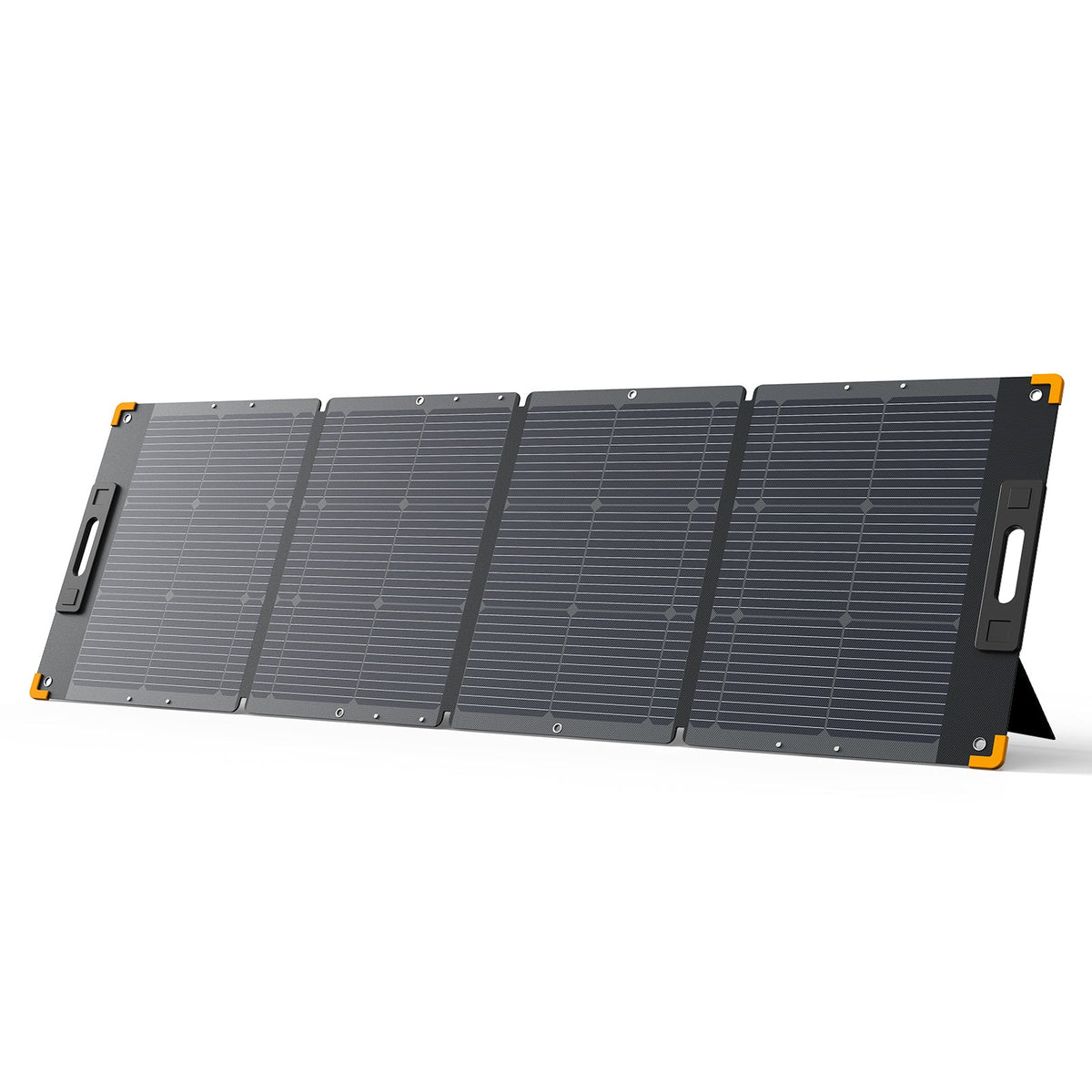

A four-fold 300W monocrystalline panel with 25%+ cell efficiency and an IP67 rating. The larger sibling to the PV200, sized for stations that can take a full 300W per string.
Key Features
- 300W Maximum Output - 36V operating voltage at 8.3A
- 25%+ Cell Efficiency - High-efficiency monocrystalline cells
- IP67 Waterproof - Rated for sustained outdoor exposure
- Four-Fold Design - Folds to 636 x 789 x 49 mm
- 41.4V Open Circuit - Pairs with Pecron XT60 solar inputs
- Wide Temperature Range - Operates from -10°C to +65°C
Ideal For
- Faster recharge on larger power stations
- Extended off-grid and boondocking stays
- Emergency preparedness kits
- Remote job and monitoring sites
- Building out a multi-panel array
1-year manufacturer warranty included.
