Talk to an EngineerTechnical Specifications
| Type | Pure sine wave inverter |
|---|---|
| Continuous Power (25°C) | 250VA / 200W to 1,600VA (model dependent) |
| Peak Power | 400W to 2,200W (model dependent) |
| Battery Voltage | 12V, 24V, or 48V (model dependent) |
| AC Output | 120 VAC / 60 Hz |
| Outlet | NEMA 5-15R (standard) or GFCI (UL 458 models) |
| Communication | VE.Direct |
|---|---|
| Peak Efficiency | 87–92% (model dependent) |
| Protection Rating | IP21 |
| Weight | 2.4 kg to 7.4 kg (model dependent) |
| Warranty | 5 years |
| Certifications | UL 458 (GFCI models), EN/IEC 62109-1, EN/IEC 60335-1, CE |
Compact 120V pure sine wave inverter with VE.Direct monitoring for North American systems.

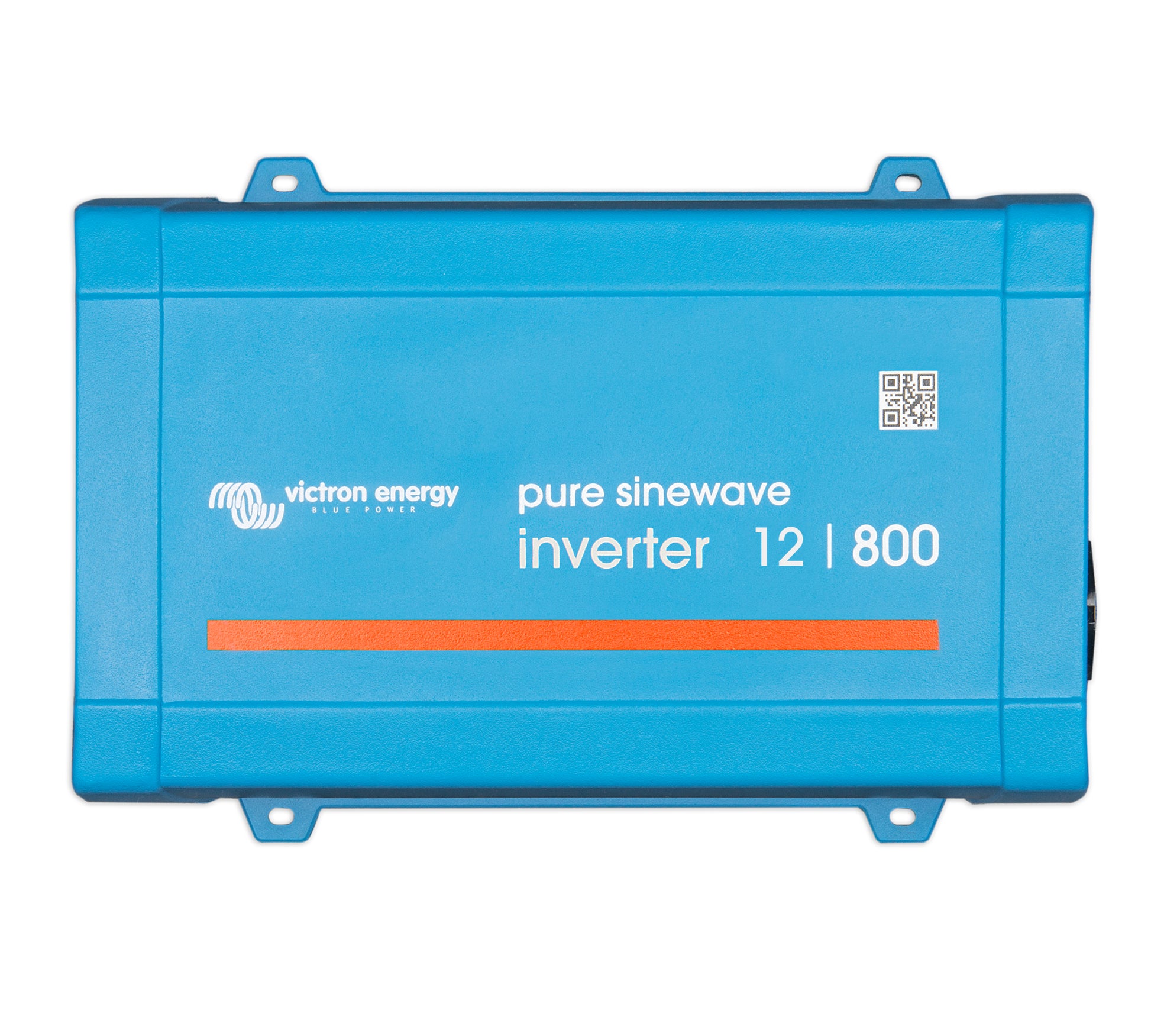

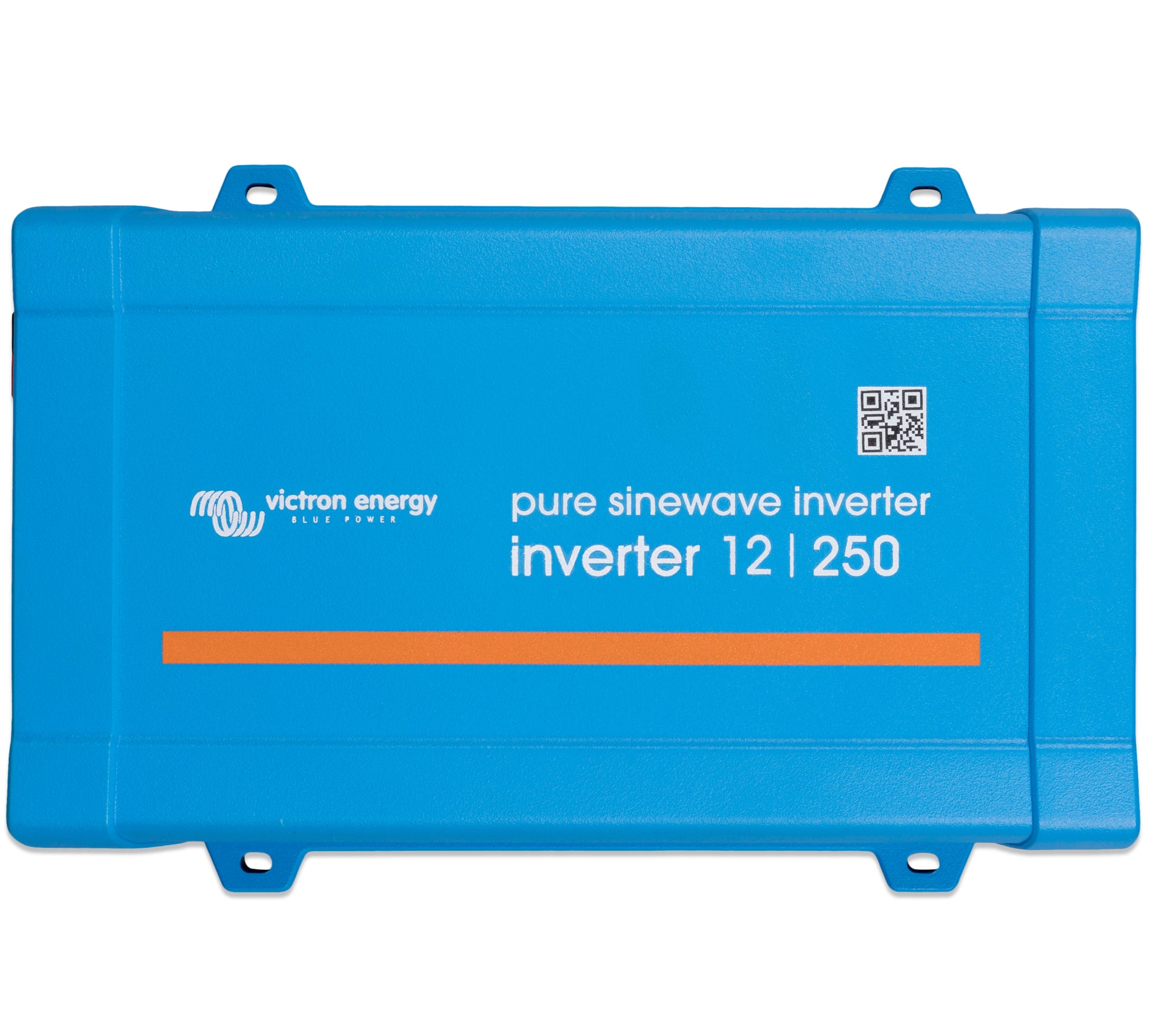

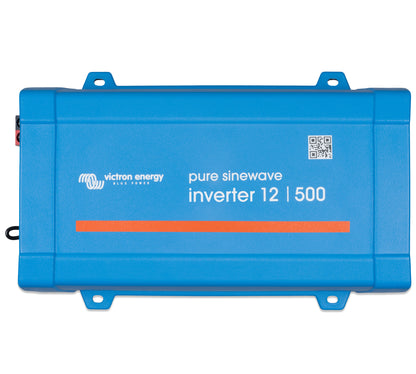

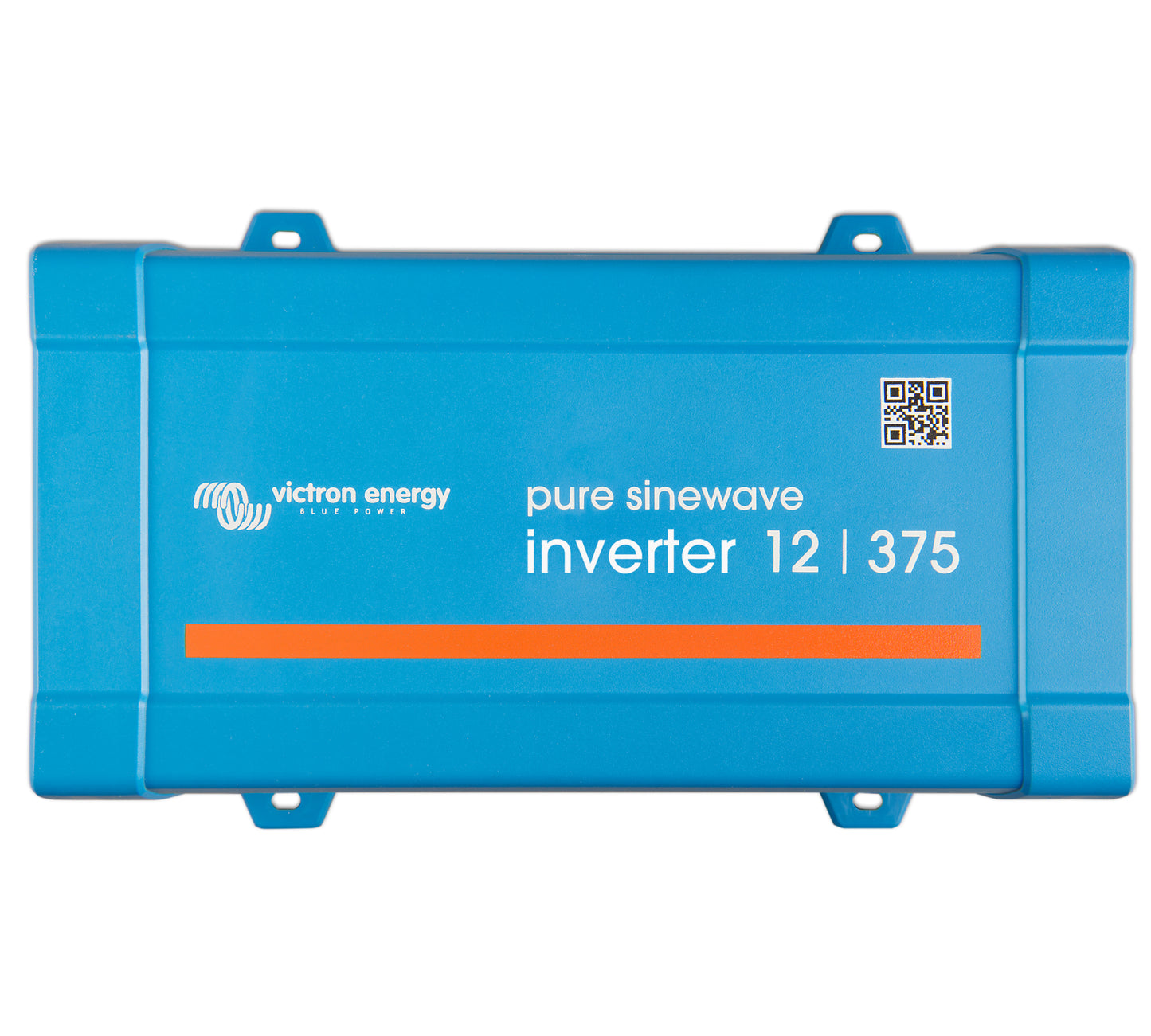

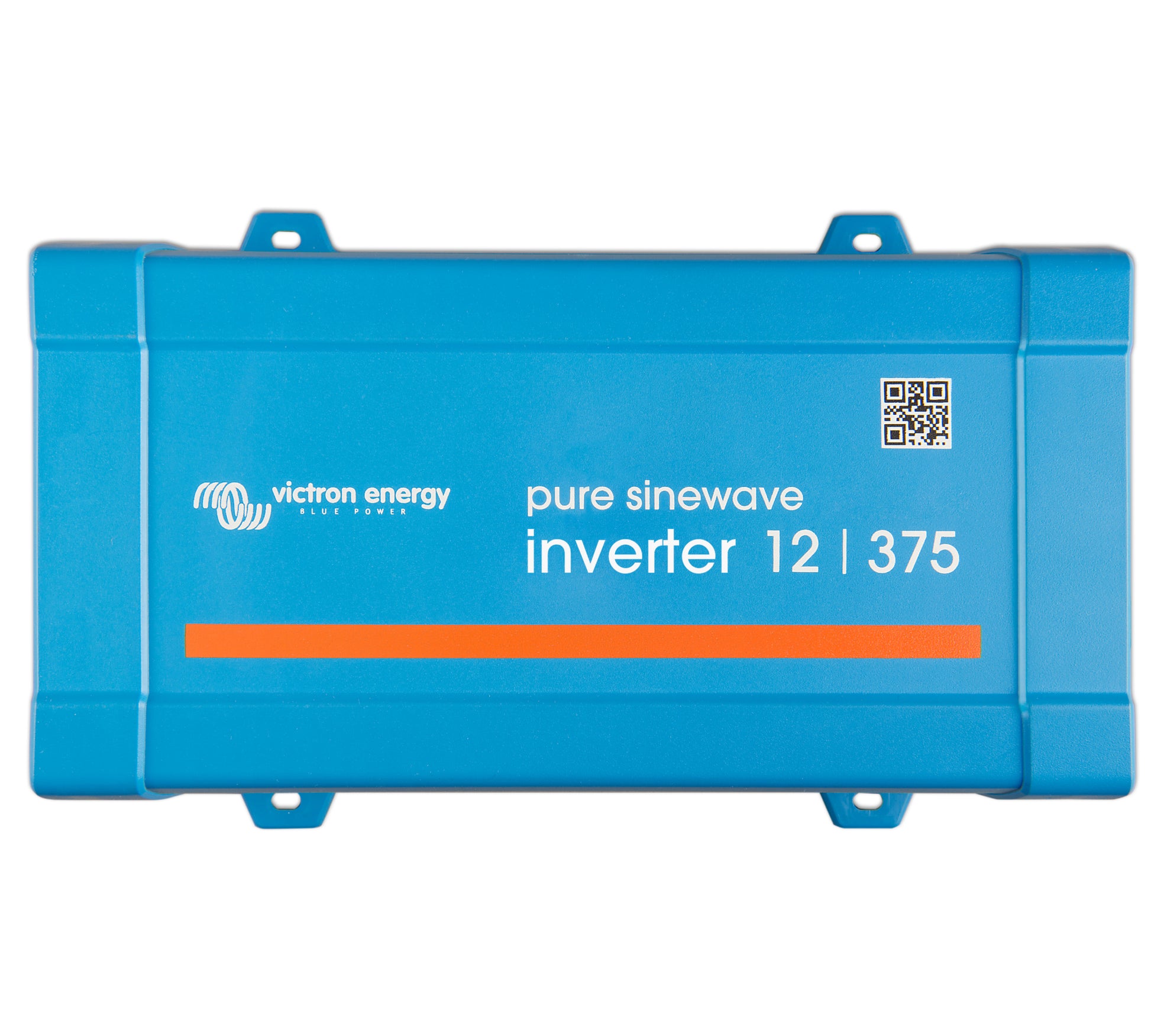

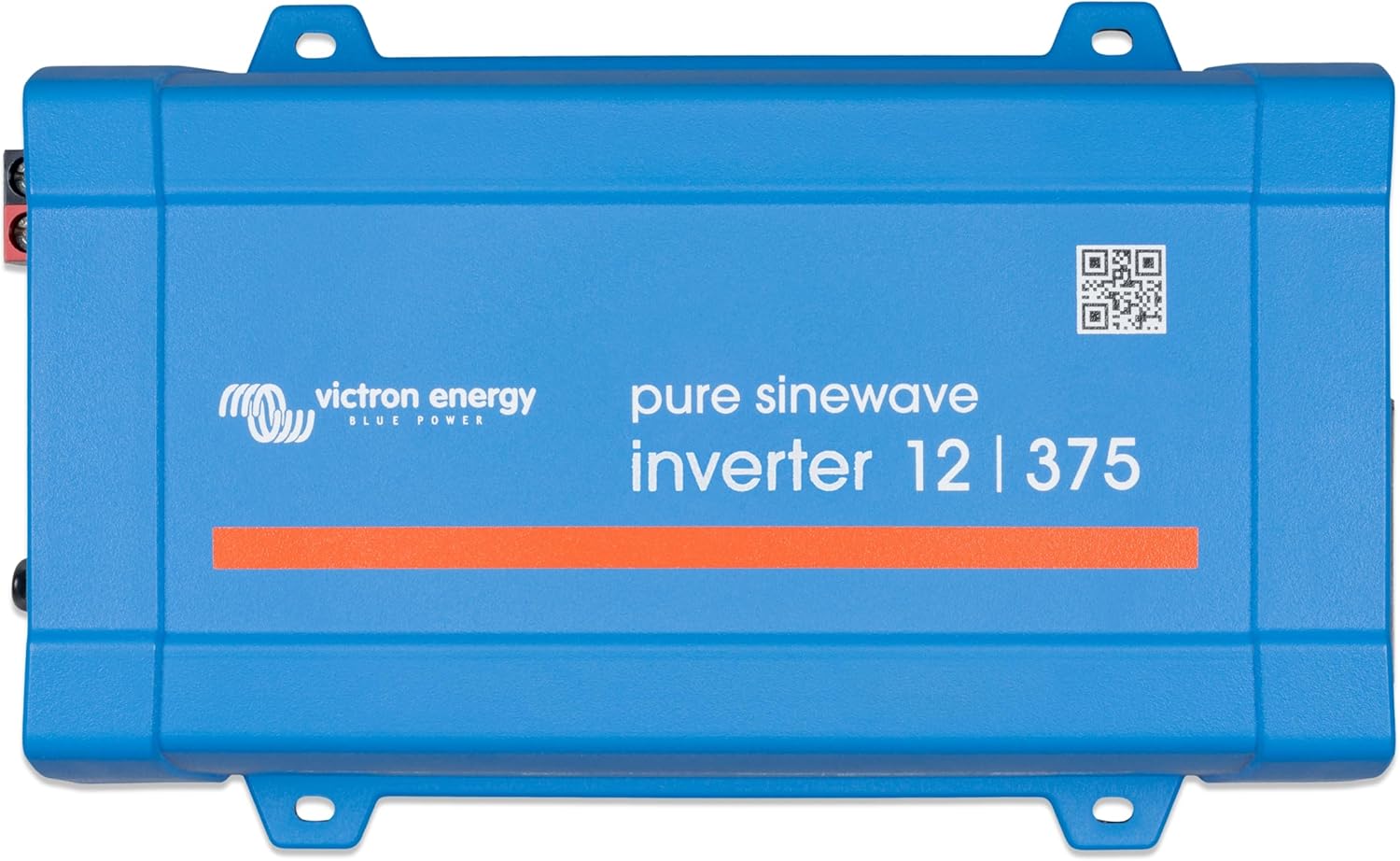

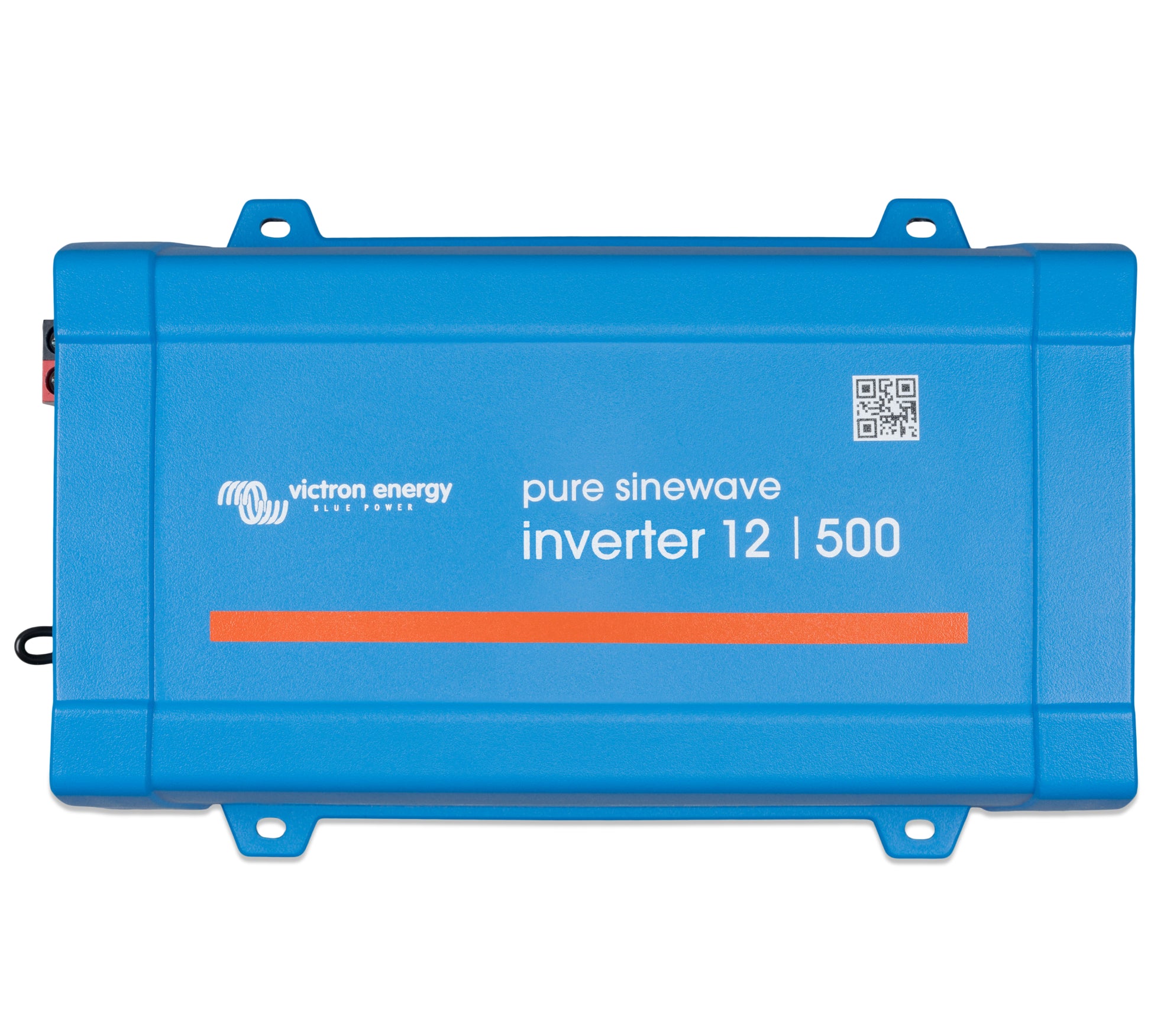

The Victron Phoenix Inverter is a standalone pure sine wave inverter that converts battery power into clean 120V AC for North American loads. It is available in 12V, 24V, and 48V models across a wide range of power ratings, so you can match the unit precisely to your battery bank and load. Pure sine wave output runs sensitive electronics reliably and efficiently.
Each unit delivers 120V AC through a standard NEMA outlet, with models offered in NEMA 5-15R and NEMA GFCI (UL 458) configurations. VE.Direct connectivity allows monitoring and configuration through a Victron GX device or the VictronConnect app.
Used in Alchemy off-grid and mobile power systems for running AC loads from battery storage.
