Talk to an EngineerTechnical Specifications
| Type | Smart battery charger (120–240V universal input) |
|---|---|
| Battery Voltage | 12V, 24V, 36V, or 48V (model dependent) |
| Charge Current | 13A to 50A (model dependent) |
| Outputs | 1+1, 3, or 1 output (model dependent) |
| AC Input Range | 85–250 VAC, 45–65 Hz |
| Charge Algorithm | Adaptive 6-stage |
| Communication | Bluetooth + VE.Direct |
| Peak Efficiency | up to 96% |
|---|---|
| Protection Rating | IP43 electronics / IP22 connections |
| AC Connection | IEC 320 C14 inlet (US NEMA cord sold separately) |
| Weight | 2.7 kg |
| Warranty | 5 years |
| Certifications | EN/IEC 60335, CE |

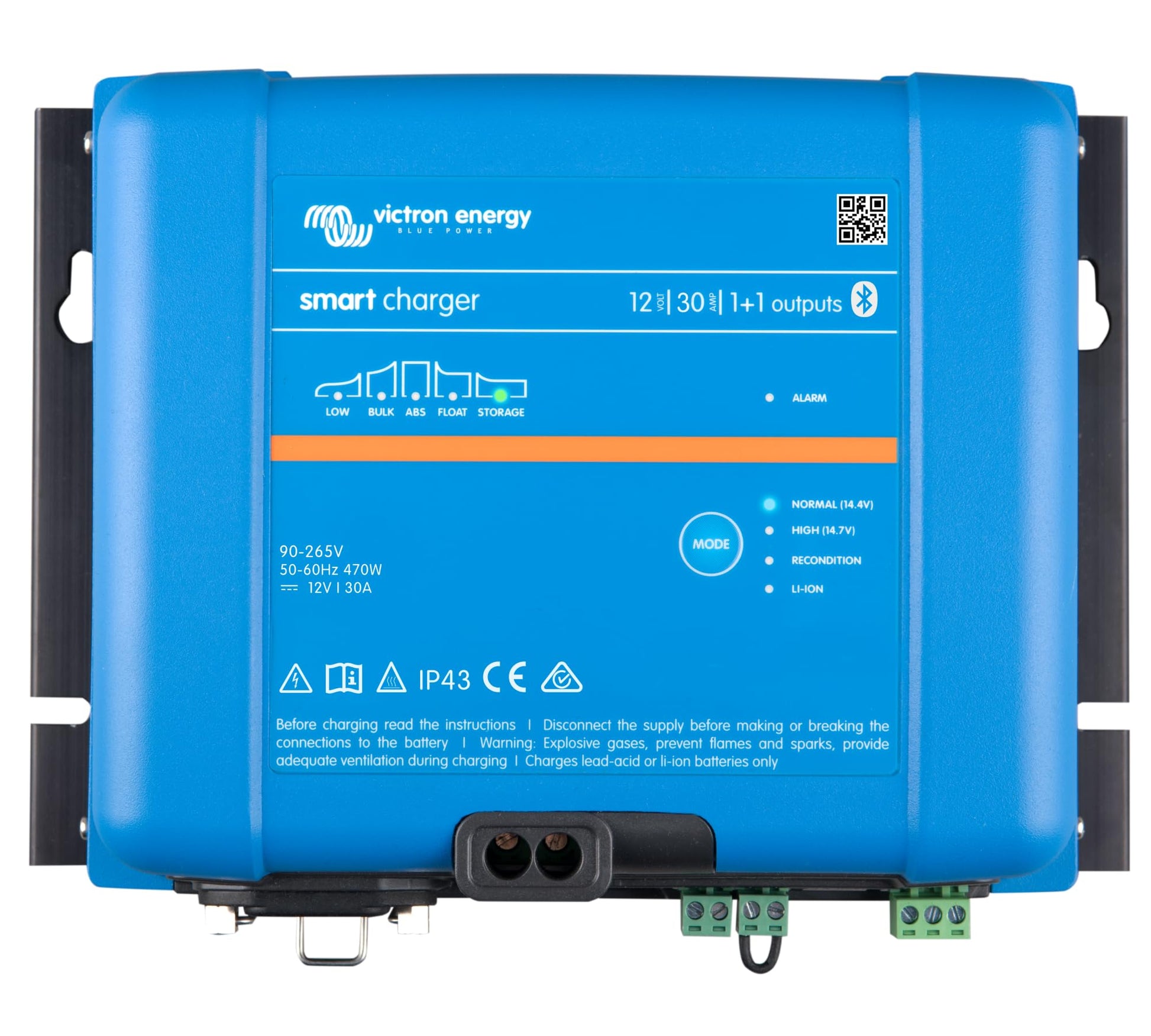

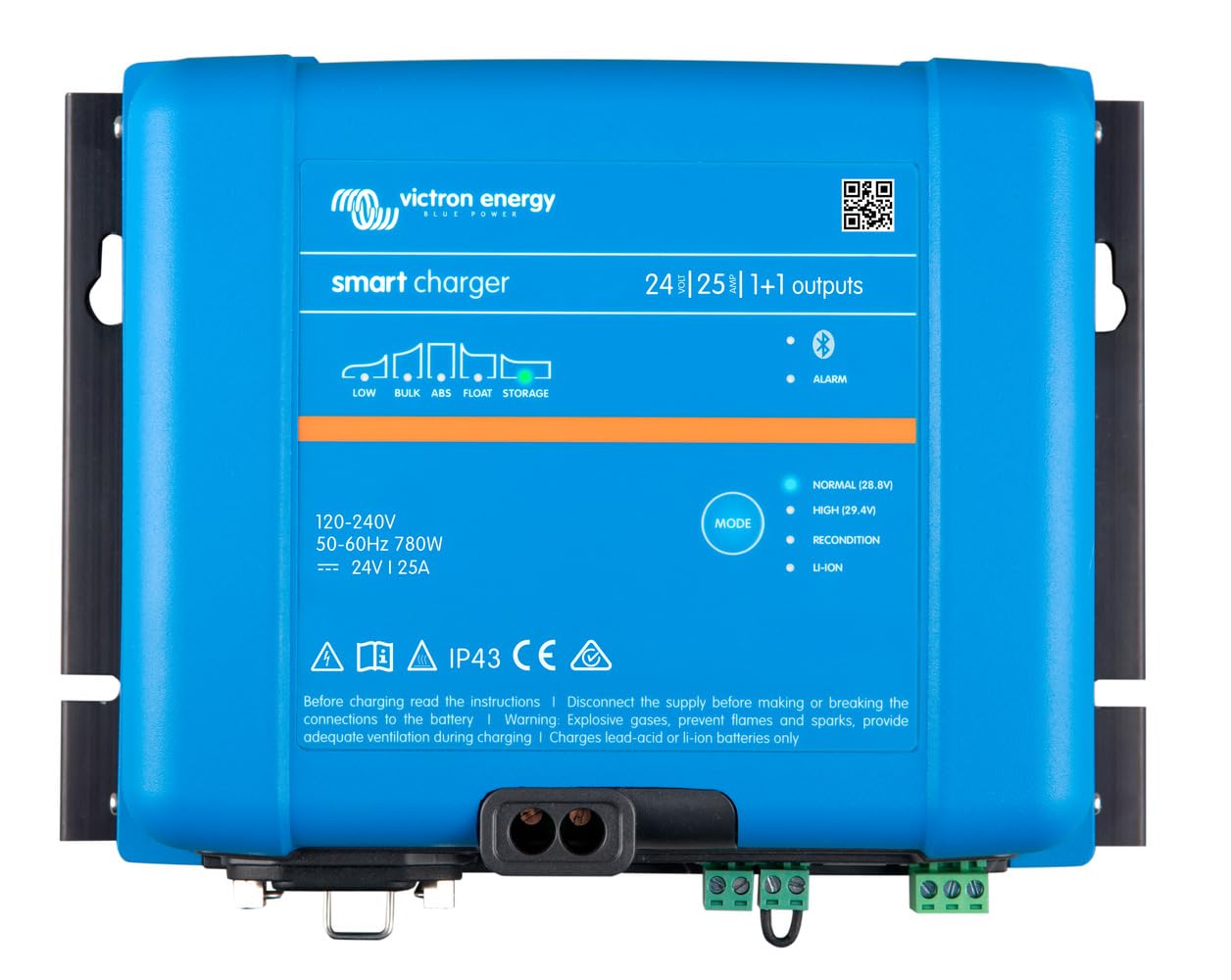

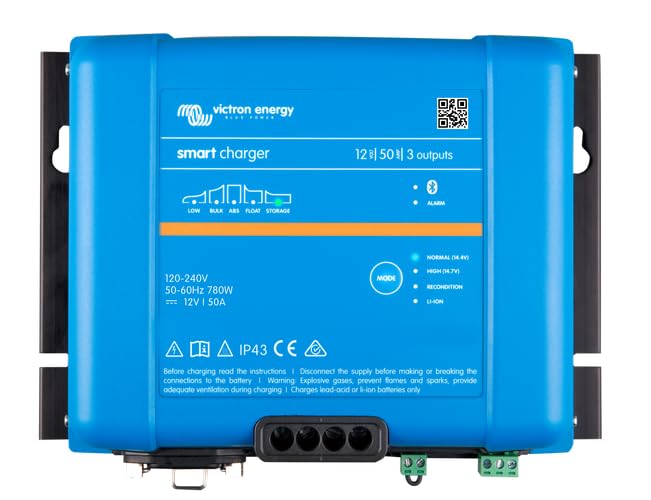

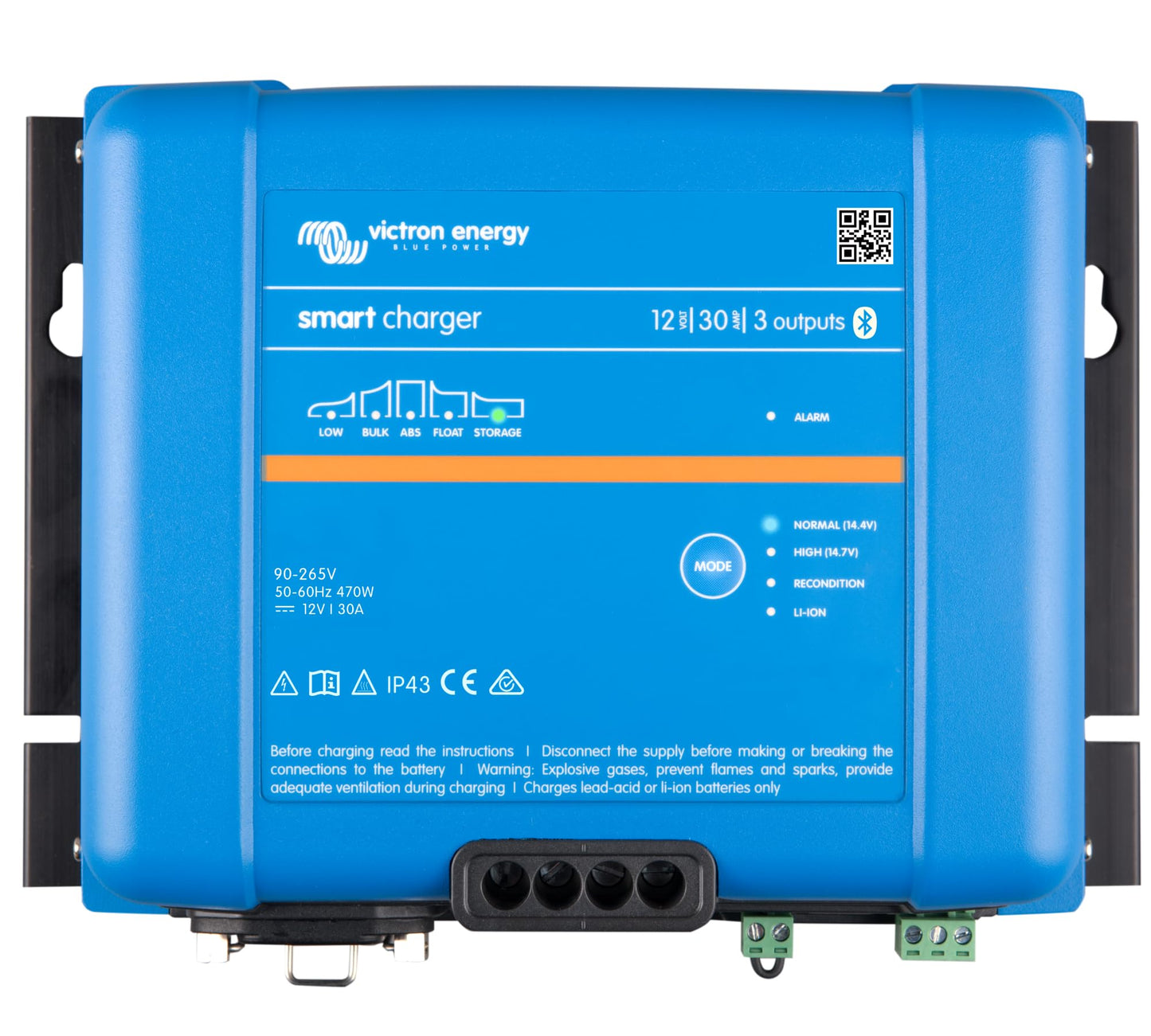

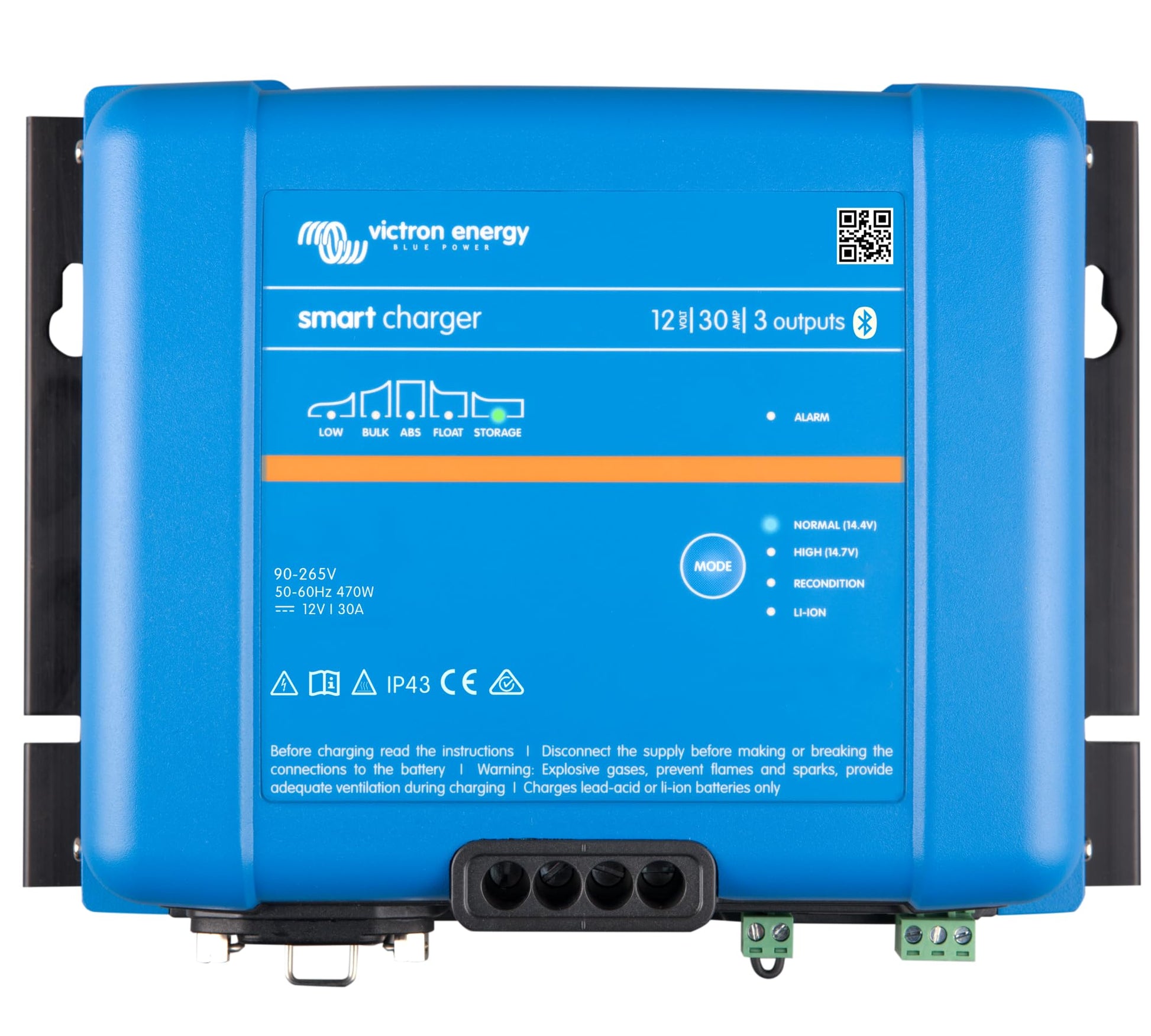

Professional-grade smart battery charger with universal 120-240V input and built-in Bluetooth.
The Victron Phoenix Smart IP43 Charger is a high-performance battery charger designed for professional and semi-industrial use.
It accepts a universal 120-240V AC input and is available in 12V, 24V, 36V, and 48V models with single- or multi-output configurations. Built-in Bluetooth lets you configure and monitor charging through the VictronConnect app, and the IP43 enclosure resists dust and splashing.
Used in Alchemy industrial and mobile power systems for fleet, marine, and backup battery charging.
Common Applications
Shipping & Lead Time
Shipping & Lead Time
Ships from our Houston, TX warehouse. Most items ship within 1–3 business days.
Pickup available at 6501 Navigation Blvd, Suite E1, Houston, TX 77011. Usually ready in 2–4 days.
Freight shipping required for batteries and large enclosures. Contact us for a freight quote on orders over 150 lbs.
Warranty & Support
Warranty & Support
All Alchemy-branded products include a 2-year limited warranty covering defects in materials, assembly, and BMS performance under normal use.
Victron products carry the manufacturer’s standard warranty (typically 5 years).
For warranty claims or technical support, contact our engineering team.
