Smart Shunt 300A - 2000A

$78.20 USD

Sale Sold out

Shipping calculated at checkout.

Victron Energy

SKU:SHU050130050

CE FCC IP65 NDAA RoHS

Ships from Houston, TX. In-stock items ship within 1-2 business days.

Authorized Victron Energy dealer. Full manufacturer warranty.

View full details

Need help designing a system?

Our engineers spec complete Victron power systems for your application: batteries, inverters, MPPT, and monitoring.

Talk to an Engineer

Technical Specifications

Models Available	300A, 500A, 1000A, 2000A (each in IP21 and IP65 variants)
Voltage Range	6.5-70V DC
Voltage Accuracy	+/- 0.3%
Current Accuracy	+/- 0.4%
Battery Capacity Range	1 - 9,999 Ah
Communication	VE.Direct, Bluetooth built-in, VE.Smart Networking

Data Storage	30-day performance history
Power Consumption	< 1 mA
Operating Temp	-40°C to +50°C
Weight (500A IP65)	0.52 kg
IP Rating	IP21 (standard) / IP65 (waterproof variant)
Certifications	EN 60335-1, EN-IEC 61000-6-1 through 6-3, EN 50498

Headless battery monitor with Bluetooth, VE.Direct, and shunt ratings from 300A to 2000A in IP21 and IP65 variants.

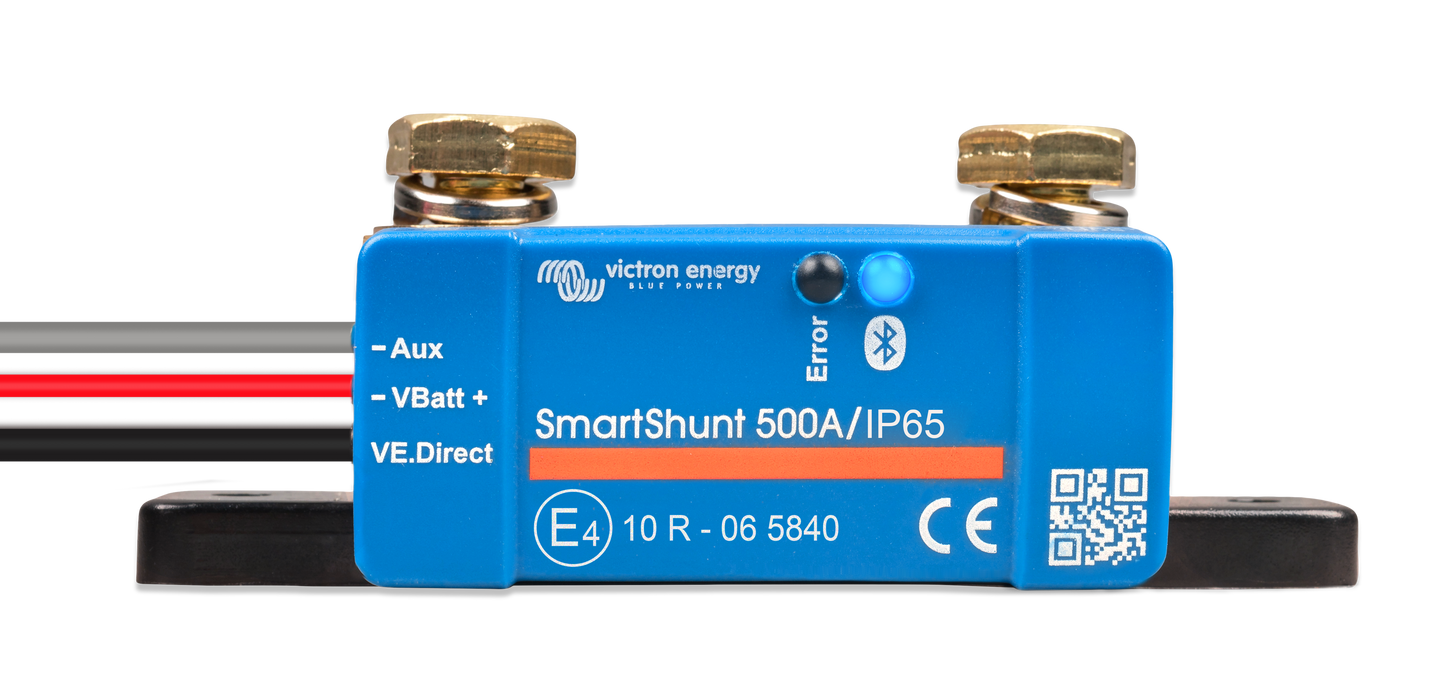

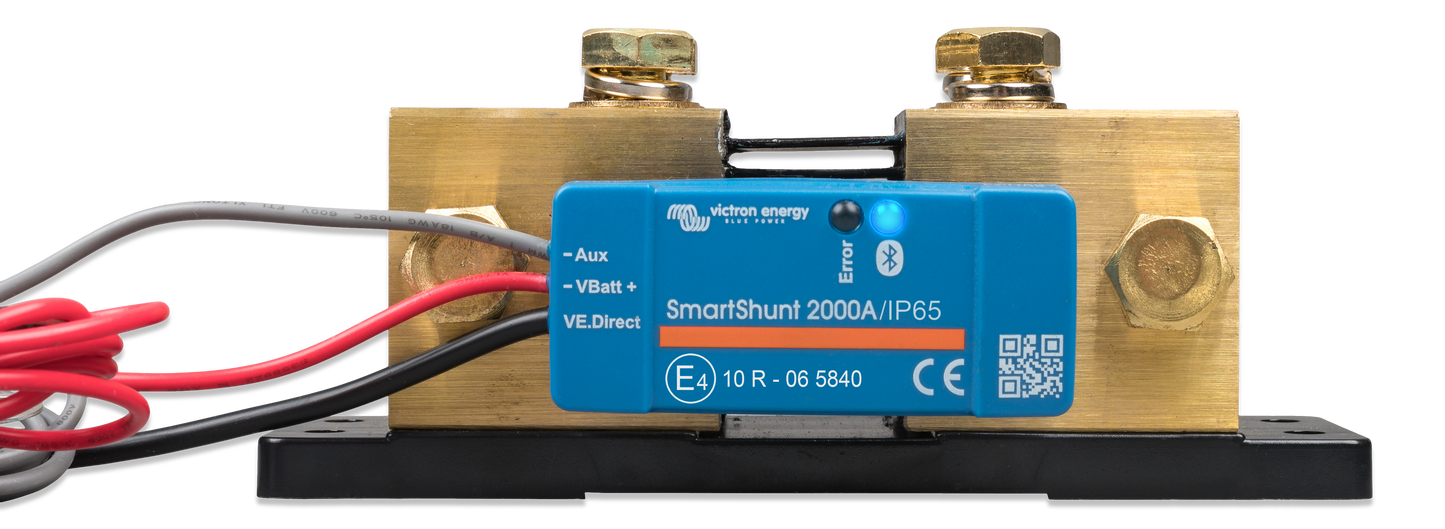

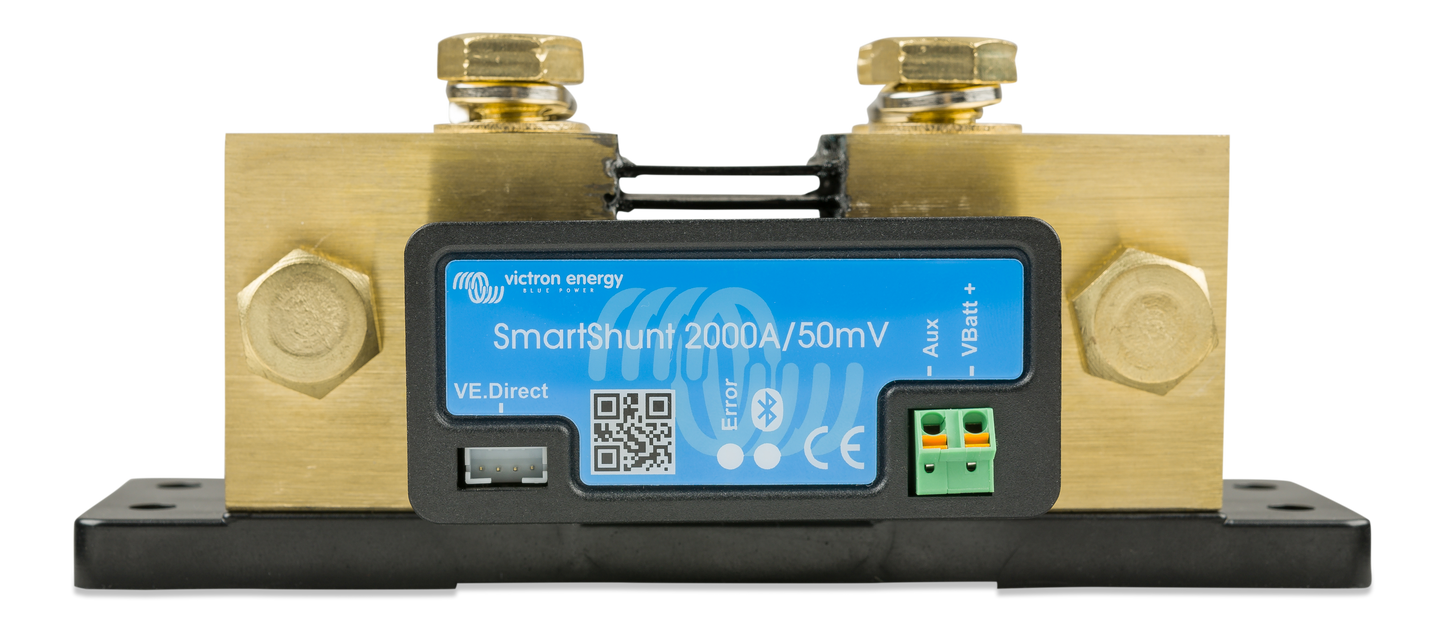

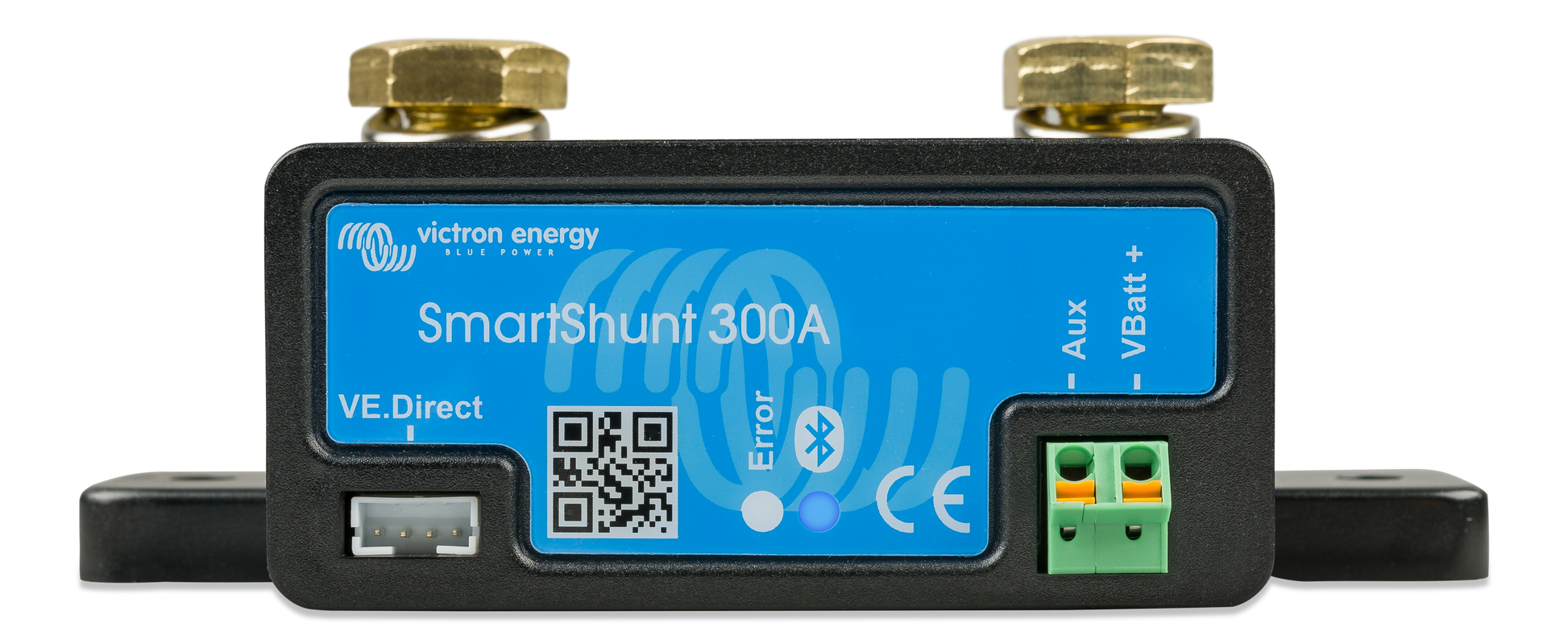

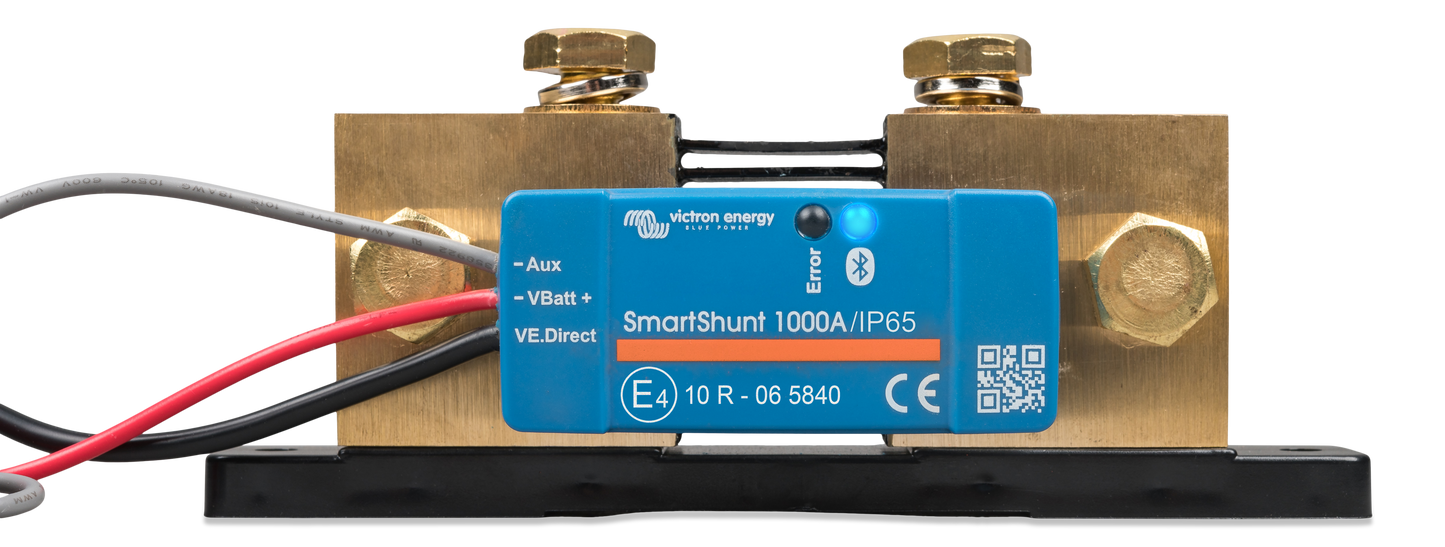

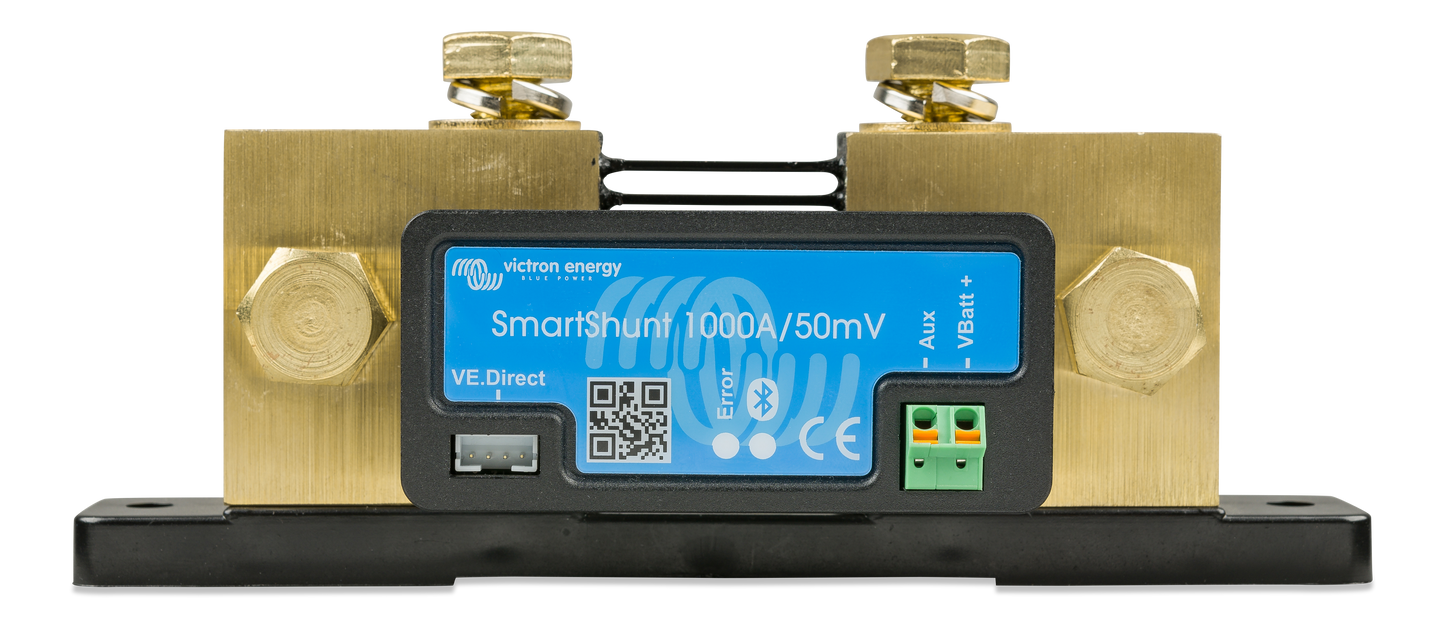

The Victron SmartShunt is a battery monitor without a display, designed for systems where monitoring is handled through the VictronConnect app or a GX device. Available in 300A, 500A, 1000A, and 2000A shunt ratings, each offered in standard (IP21) and waterproof (IP65) enclosures. It measures voltage, current, power, and state of charge with ±0.3% voltage and ±0.4% current accuracy across 6.5-70V DC.

Built-in Bluetooth and VE.Direct provide wireless and wired monitoring paths. 30-day performance history is stored onboard. VE.Smart Networking enables wireless voltage and temperature data sharing with compatible charge controllers. Sub-1mA power consumption ensures negligible parasitic draw.

The 500A and 1000A models are standard in Alchemy off-grid power systems for battery bank monitoring via Cerbo GX and VRM.
