Talk to an EngineerTechnical Specifications
| Max PV Voltage (Voc) | 75V (75/10, 75/15) or 100V (100/15 through 100/50) |
|---|---|
| Charge Current Range | 10A / 15A / 20A / 30A / 50A (model dependent) |
| Battery Voltage | 12V / 24V auto-select (48V on 100/20 only) |
| Max PV Power (12V / 24V) | 145-700W / 290-1,400W (model dependent) |
| Peak Efficiency | 98% |
| Communication | VE.Direct, Bluetooth built-in |
| Operating Temp | -30°C to +60°C (full output to 40°C) |
|---|---|
| Protection | PV reverse polarity, short circuit, over-temperature |
| Weight | 0.5 - 1.3 kg (model dependent) |
| Dimensions | 100 x 113 x 40 mm to 130 x 186 x 70 mm |
| IP Rating | IP43 (electronics) / IP22 (connections) |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |

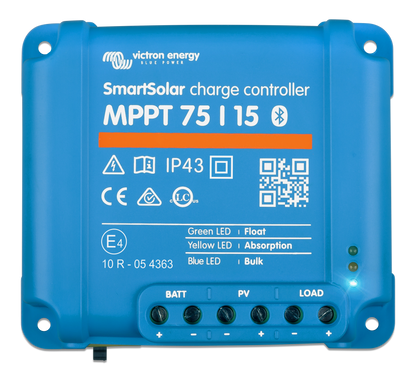

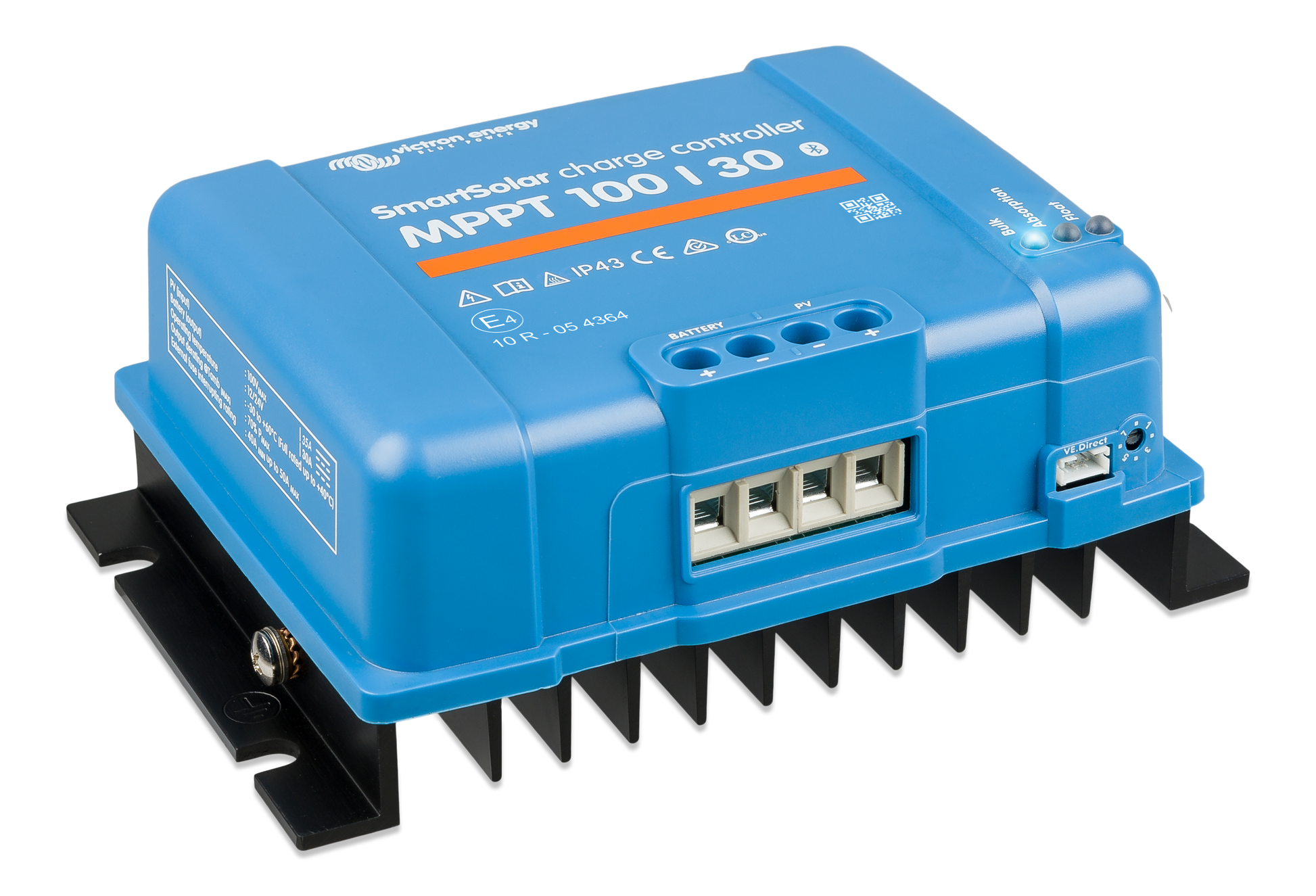

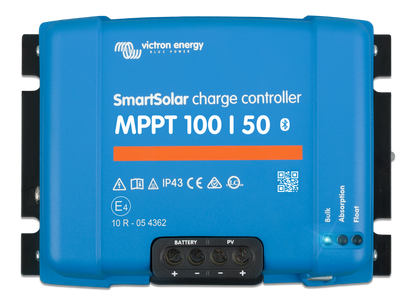

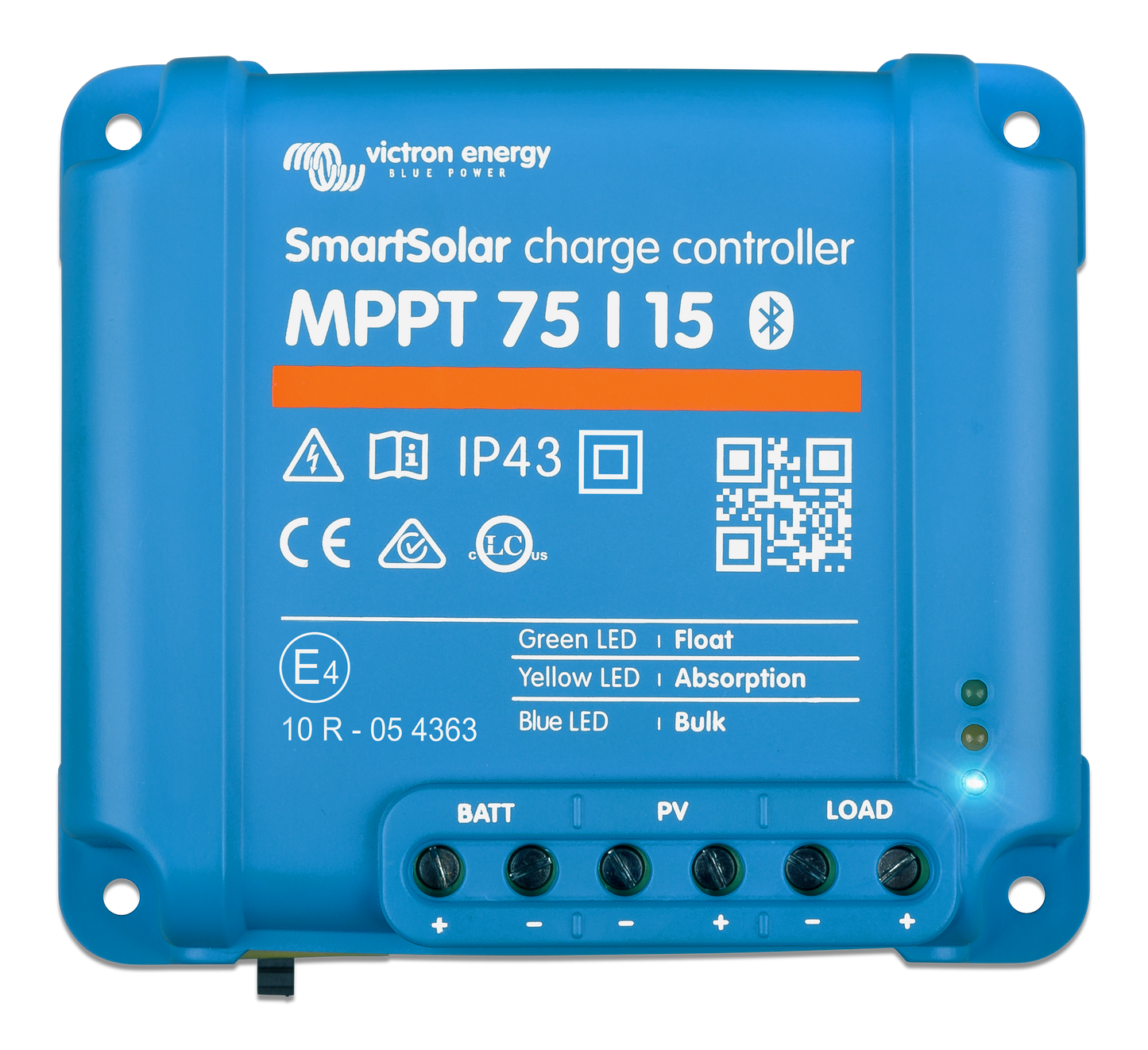

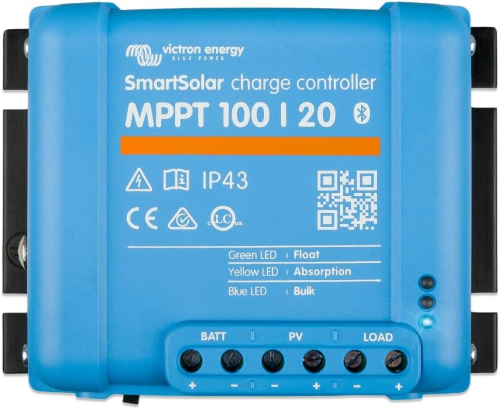

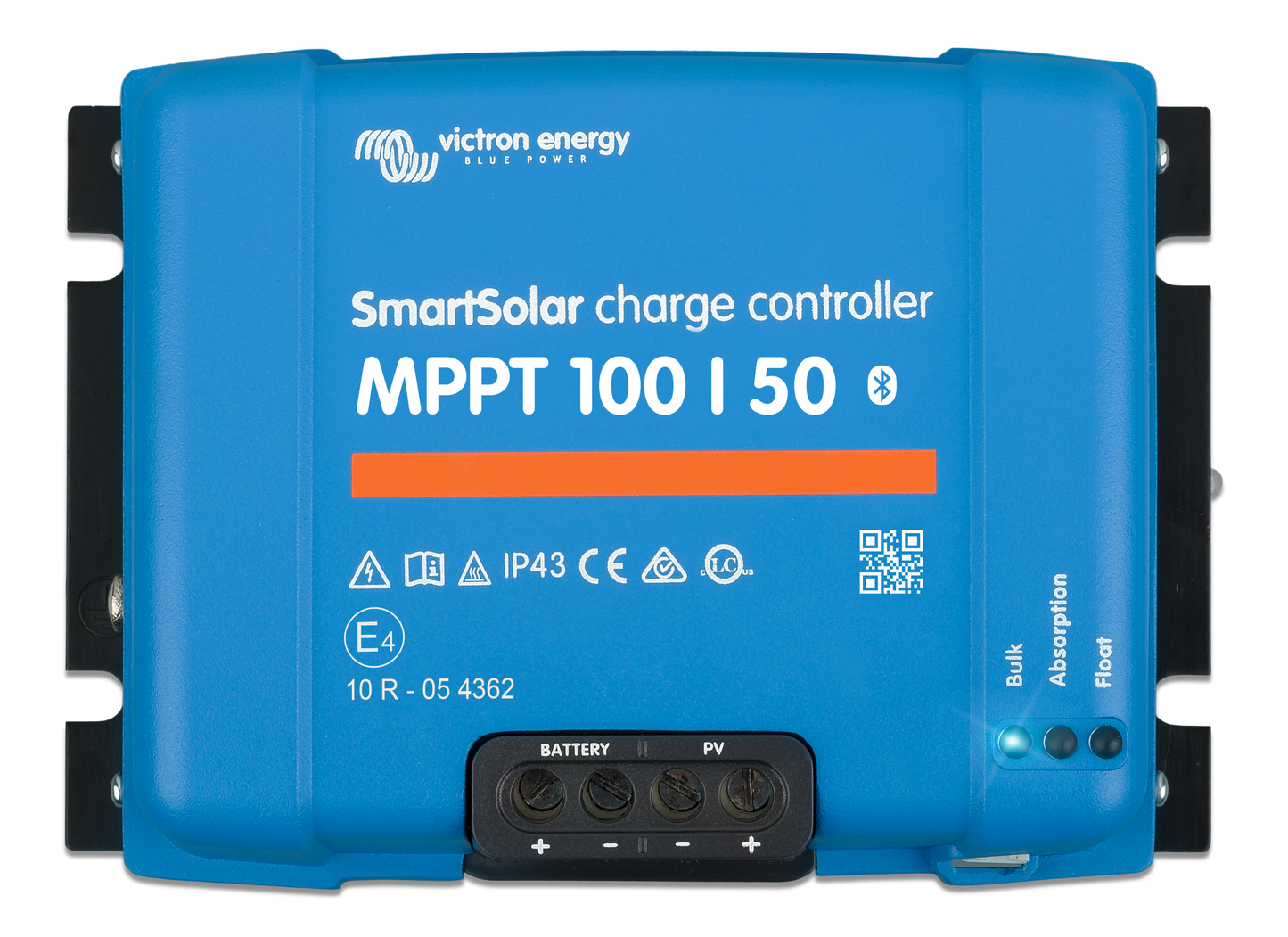

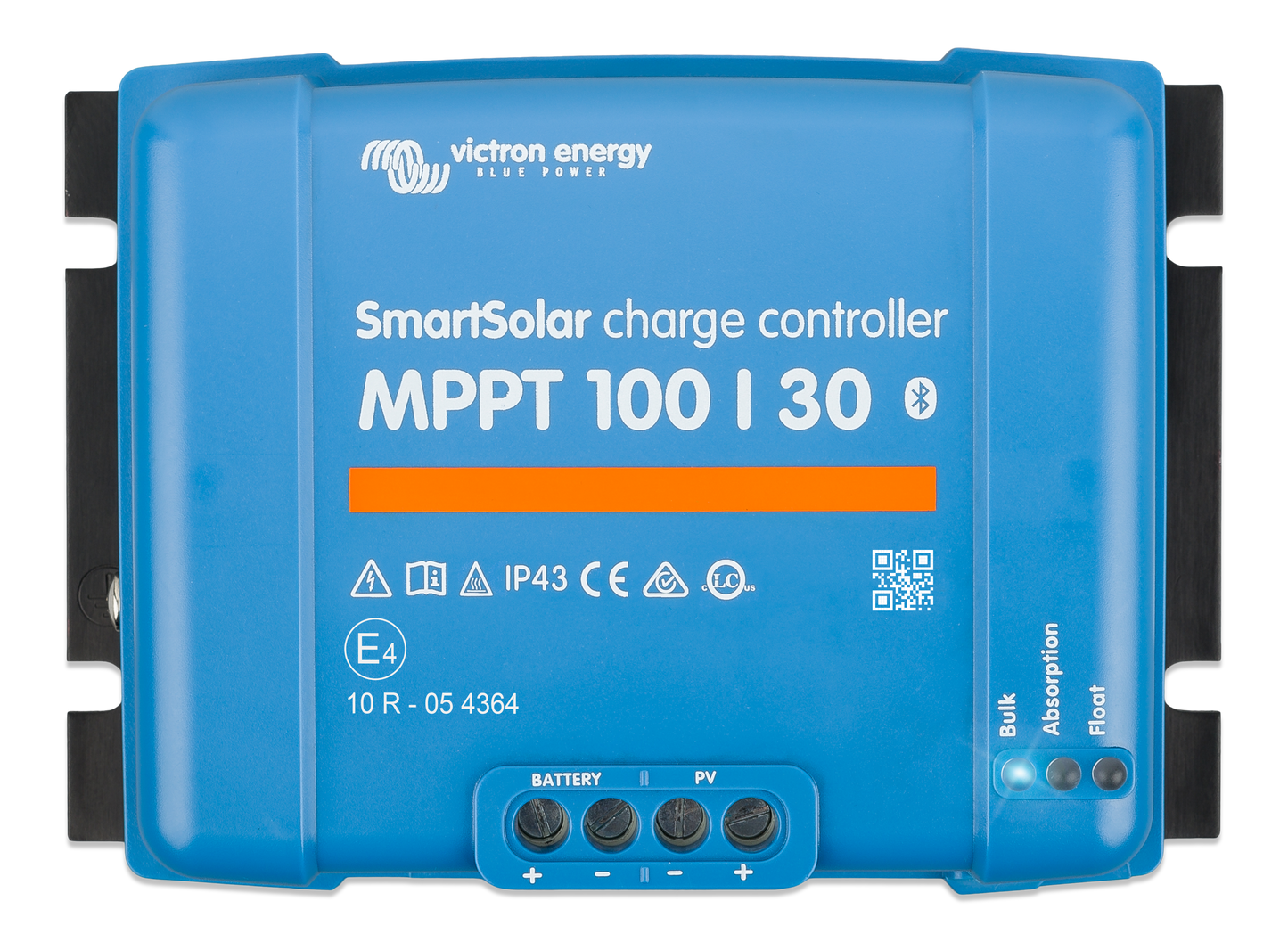

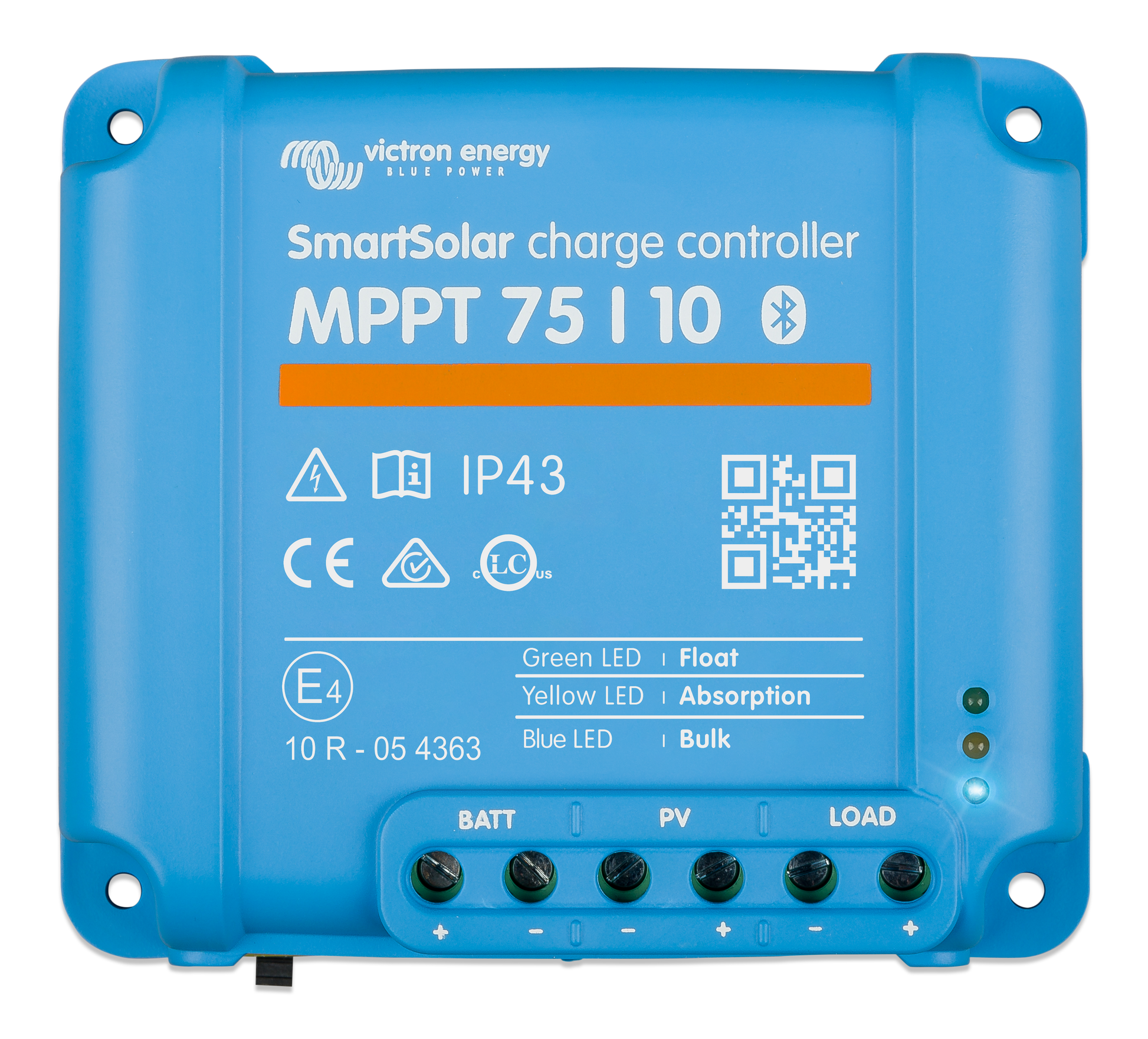

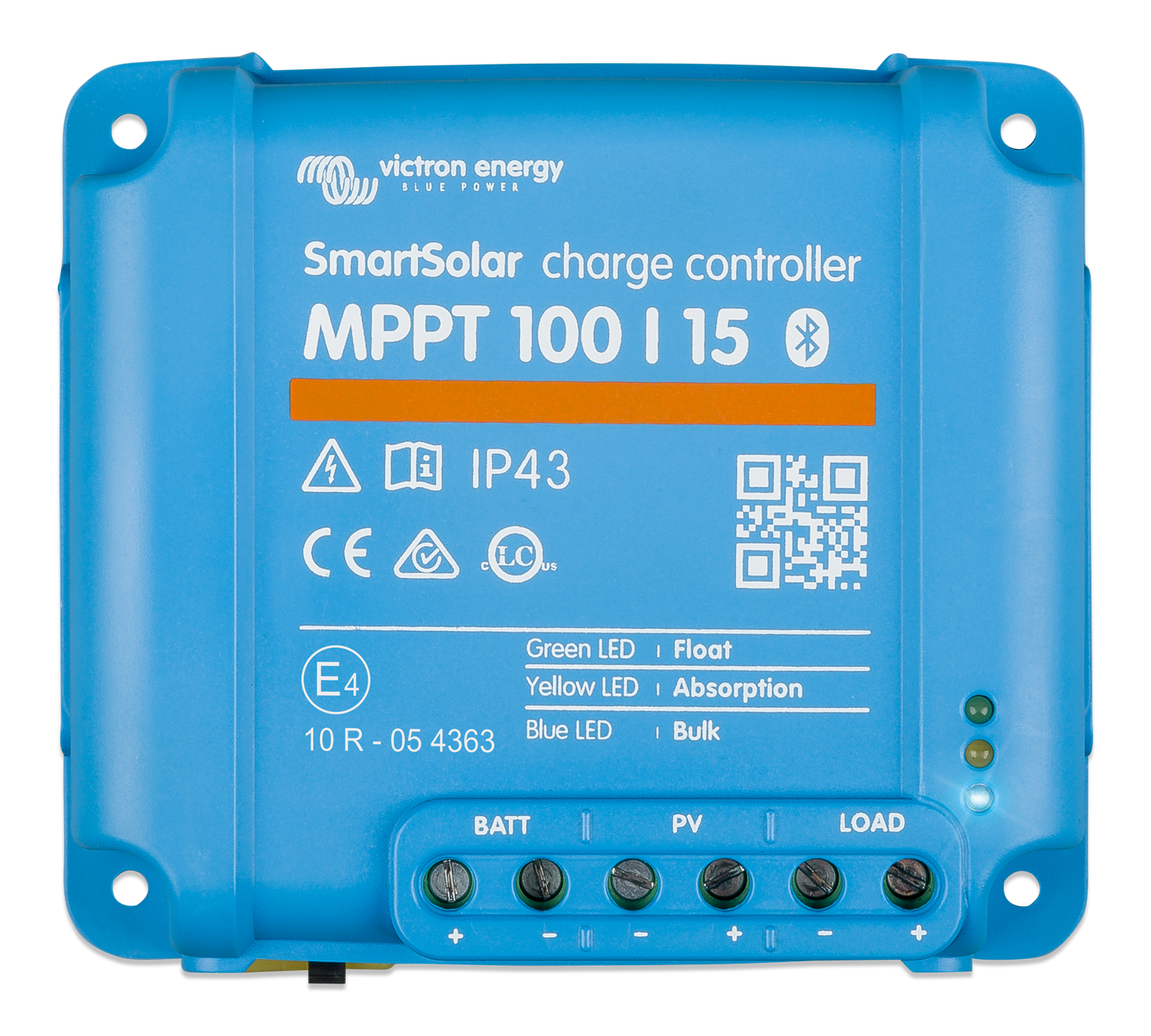

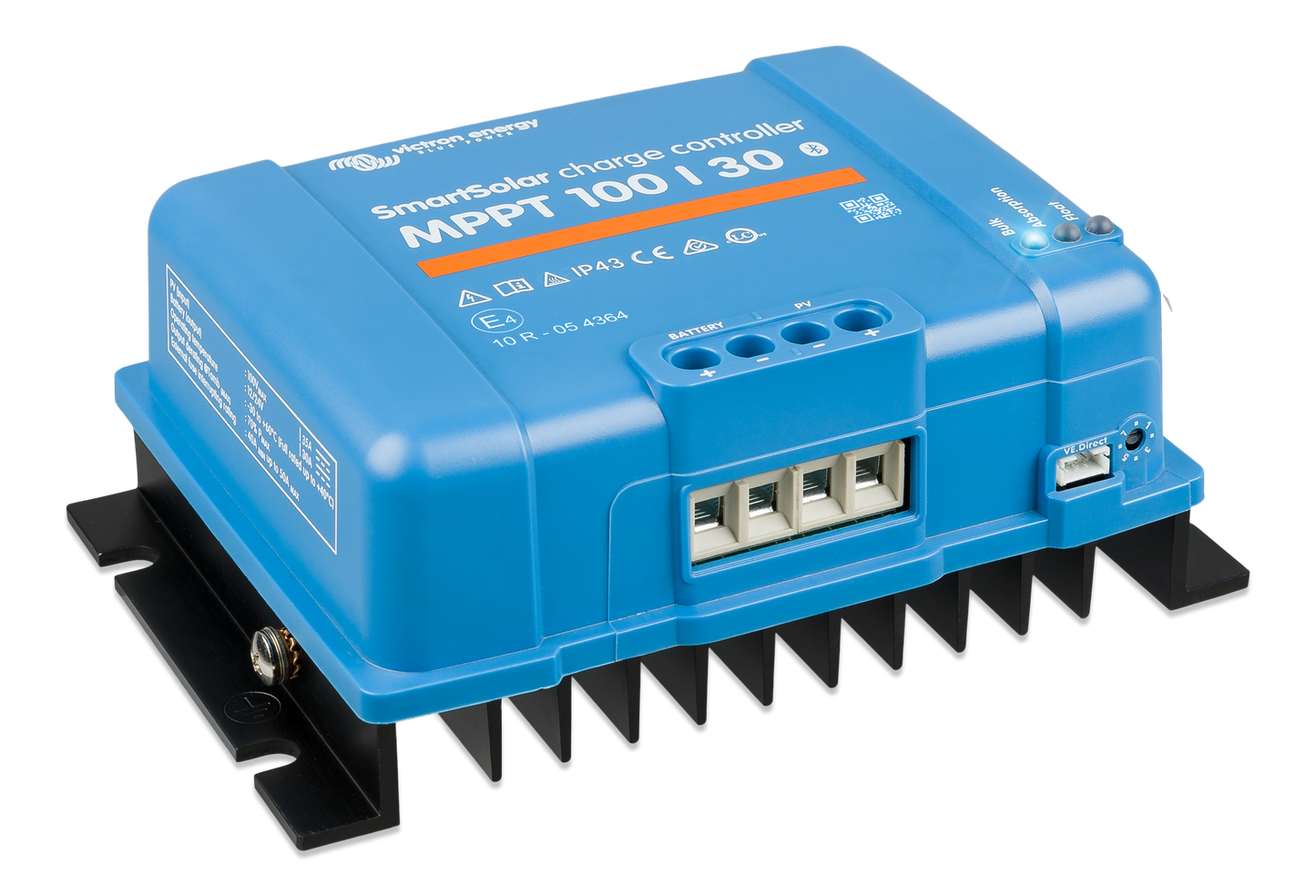

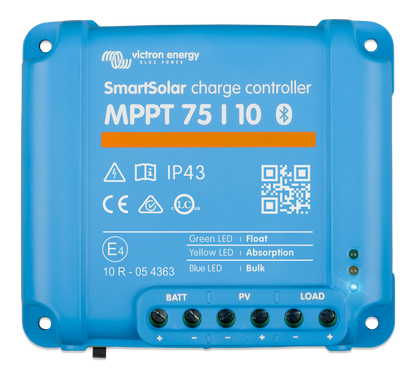

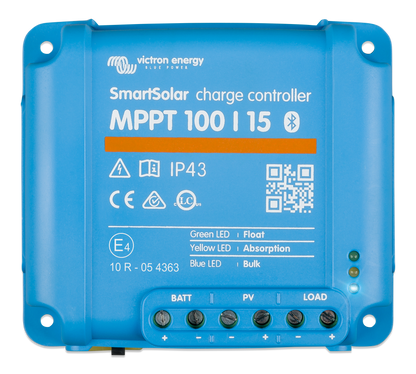

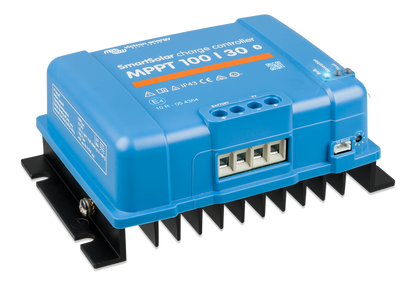

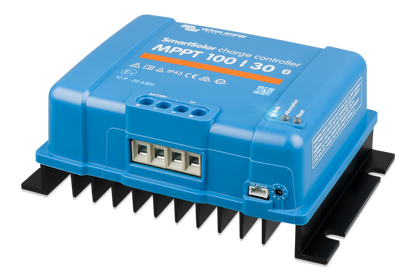

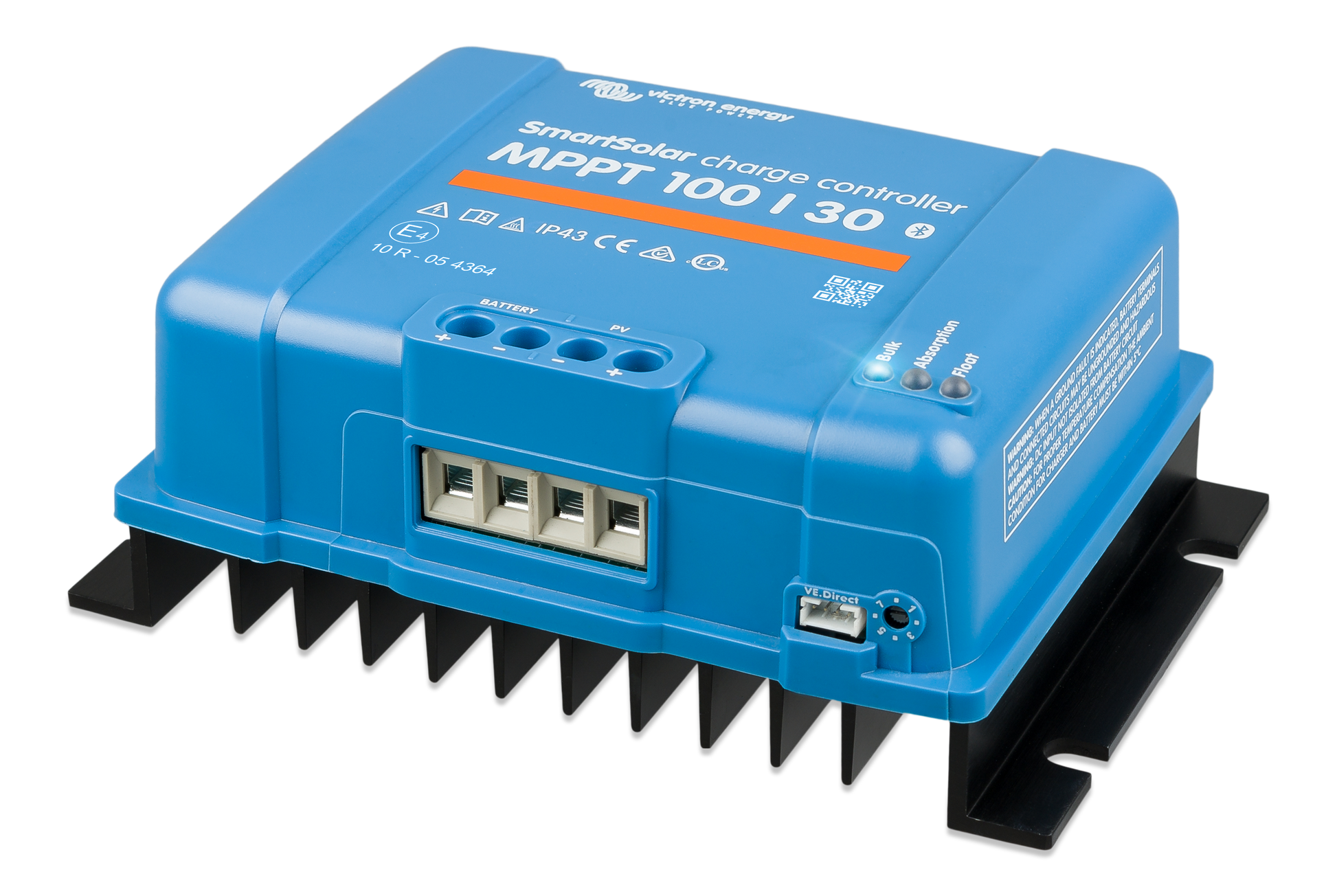

Compact MPPT solar charge controllers with built-in Bluetooth, 75V-100V PV input, and 10A-50A charge output.
The Victron SmartSolar MPPT 75/10 through 100/50 controllers use ultra-fast maximum power point tracking to extract maximum energy from solar panels, even under partial shading and variable cloud conditions. Operating at up to 98% conversion efficiency, they support 12V and 24V battery systems (48V on 100/20 model) with automatic voltage detection.
Built-in Bluetooth enables configuration and real-time monitoring through VictronConnect. VE.Direct communication connects to GX devices for system-wide monitoring via the VRM portal. The adaptive charge algorithm handles lithium, AGM, gel, and flooded batteries with configurable absorption and float voltages.
PV reverse polarity, short circuit, and over-temperature protection are standard. IP43 rated electronics with IP22 connection compartment. Suitable for trailers, small off-grid installations, and mobile platforms paired with Alchemy battery systems.
