Talk to an EngineerTechnical Specifications
| Max PV Voltage (Voc) | 450V |
|---|---|
| MPPT Trackers | 2 (450/100) or 4 (450/200), independent MPPT per tracker |
| Max Total PV Power | 5,760W (450/100) / 11,520W (450/200) |
| Charge Current | 100A (450/100) / 200A (450/200) |
| Battery Voltage | 48V only (programmable 36-60V range) |
| Peak Efficiency | 96% |
| Communication | VE.Direct, VE.Can, Bluetooth built-in |
| Operating Temp | -40°C to +60°C (fan-cooled, full output to 40°C) |
|---|---|
| Parallel Capability | Up to 25 units via VE.Can |
| Weight | 7.9 kg (450/100) / 13.7 kg (450/200) |
| Dimensions | 442 x 310 x 127 mm (450/100) / 487 x 435 x 147 mm (450/200) |
| IP Rating | IP21 |
| Certifications | EN/IEC 62109-1 |
High-power MPPT controllers with 450V PV input, multi-tracker design, and up to 11.5kW solar capacity.

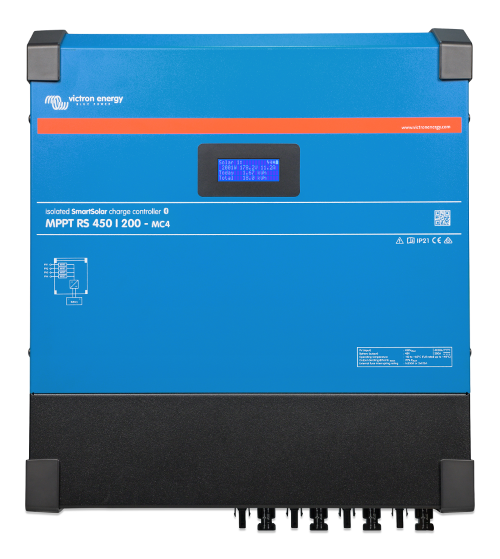

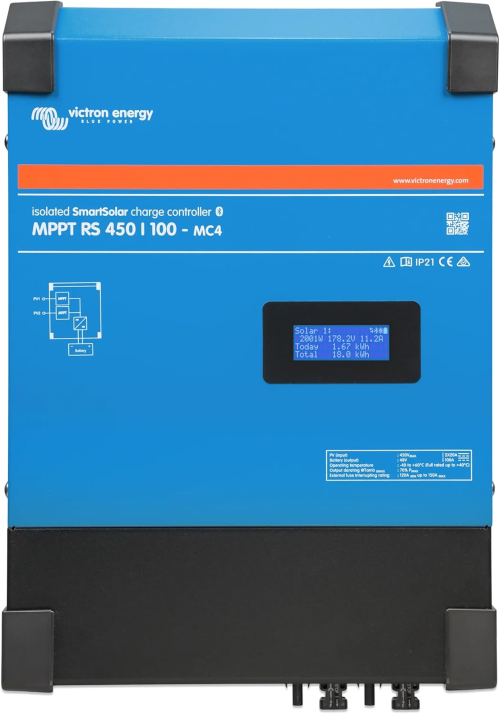

The Victron SmartSolar MPPT RS series is designed for large 48V battery systems with high-voltage PV arrays. The 450/100 model provides 2 independent MPPT trackers handling up to 5,760W of solar, while the 450/200 offers 4 trackers for up to 11,520W. Each tracker operates independently, allowing mixed panel orientations and string lengths on a single controller.
Fan-cooled design maintains full output up to 40°C ambient. VE.Can networking allows up to 25 units in parallel for utility-scale systems. VE.Direct, Bluetooth, and VE.Can communication provides full integration with GX devices and the VRM portal. The 450V maximum PV voltage enables long series strings that minimize wiring losses across large array fields.
Built for commercial off-grid installations, industrial solar-battery systems, and large-scale Alchemy power deployments requiring high solar throughput.
