Talk to an EngineerTechnical Specifications
| Max PV Voltage (Voc) | 150V (150/70, 150/85, 150/100) or 250V (250/70, 250/85, 250/100) |
|---|---|
| Charge Current Range | 70A / 85A / 100A (model dependent) |
| Battery Voltage | 12V / 24V / 48V auto-select, 36V manual |
| Max PV Power (48V) | 4,000W - 5,800W (model dependent) |
| Peak Efficiency | 98% |
| Communication | VE.Can (RJ45), VE.Direct, Bluetooth built-in |
| Operating Temp | -30°C to +60°C (fan-cooled, full output to 40°C) |
|---|---|
| Parallel Capability | Up to 25 units in parallel via VE.Can |
| Weight | 4.5 - 5.0 kg (model dependent) |
| Dimensions | 246 x 295 x 103 mm to 246 x 295 x 133 mm |
| IP Rating | IP43 (electronics) / IP22 (connections) |
| Certifications | EN/IEC 62109-1, UL 1741, CSA C22.2 |
Networkable MPPT controllers with VE.Can bus, 150V-250V PV input, and 70A-100A charge output for parallel systems.

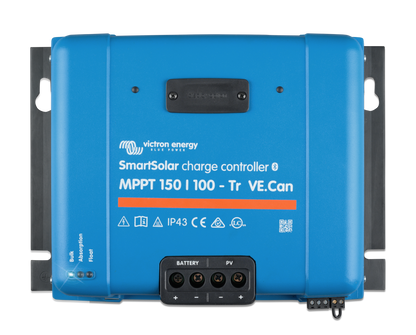

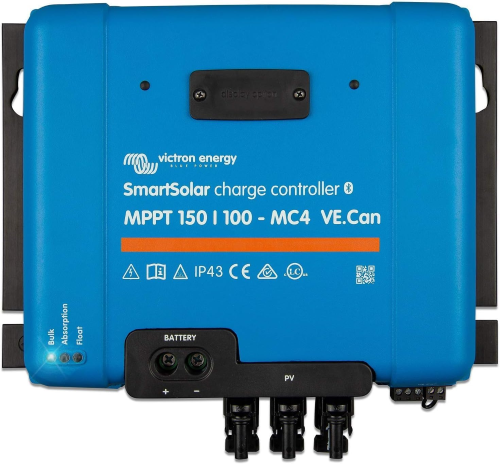

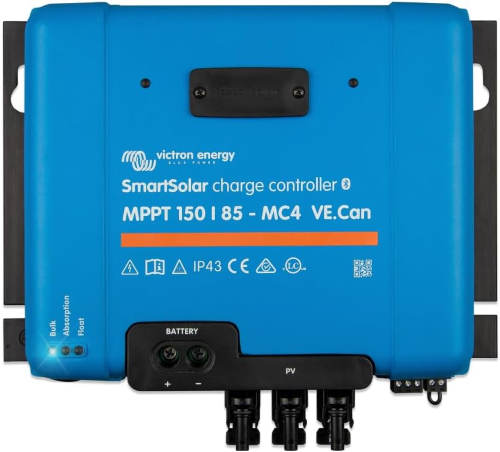

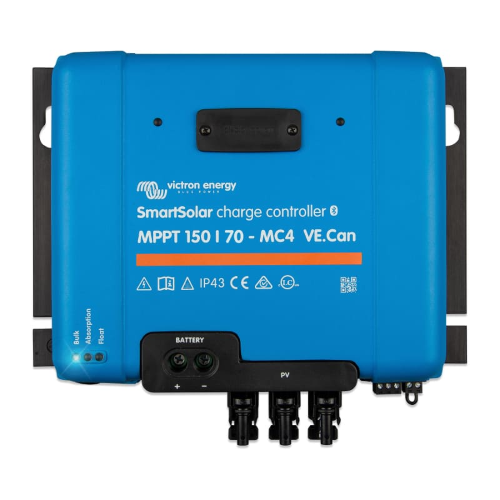

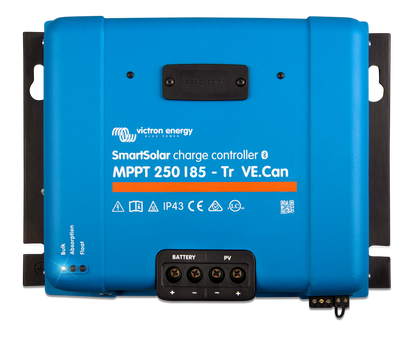

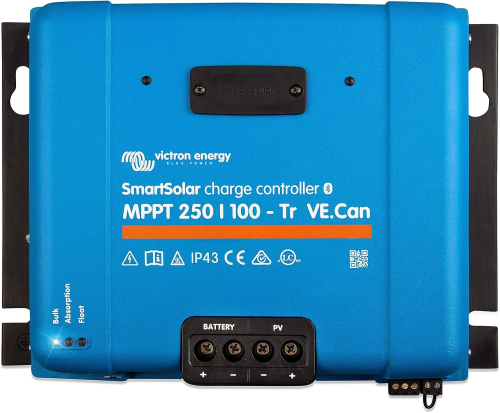

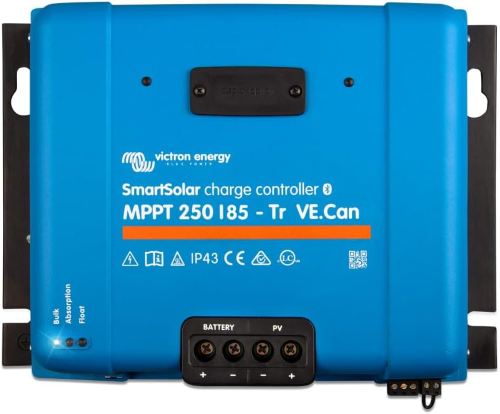

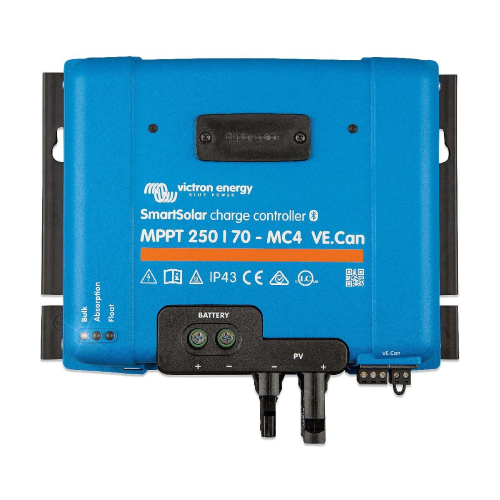

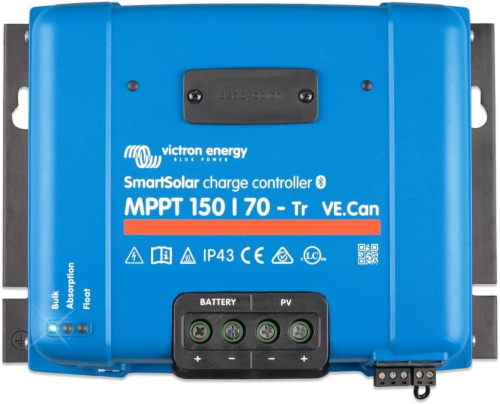

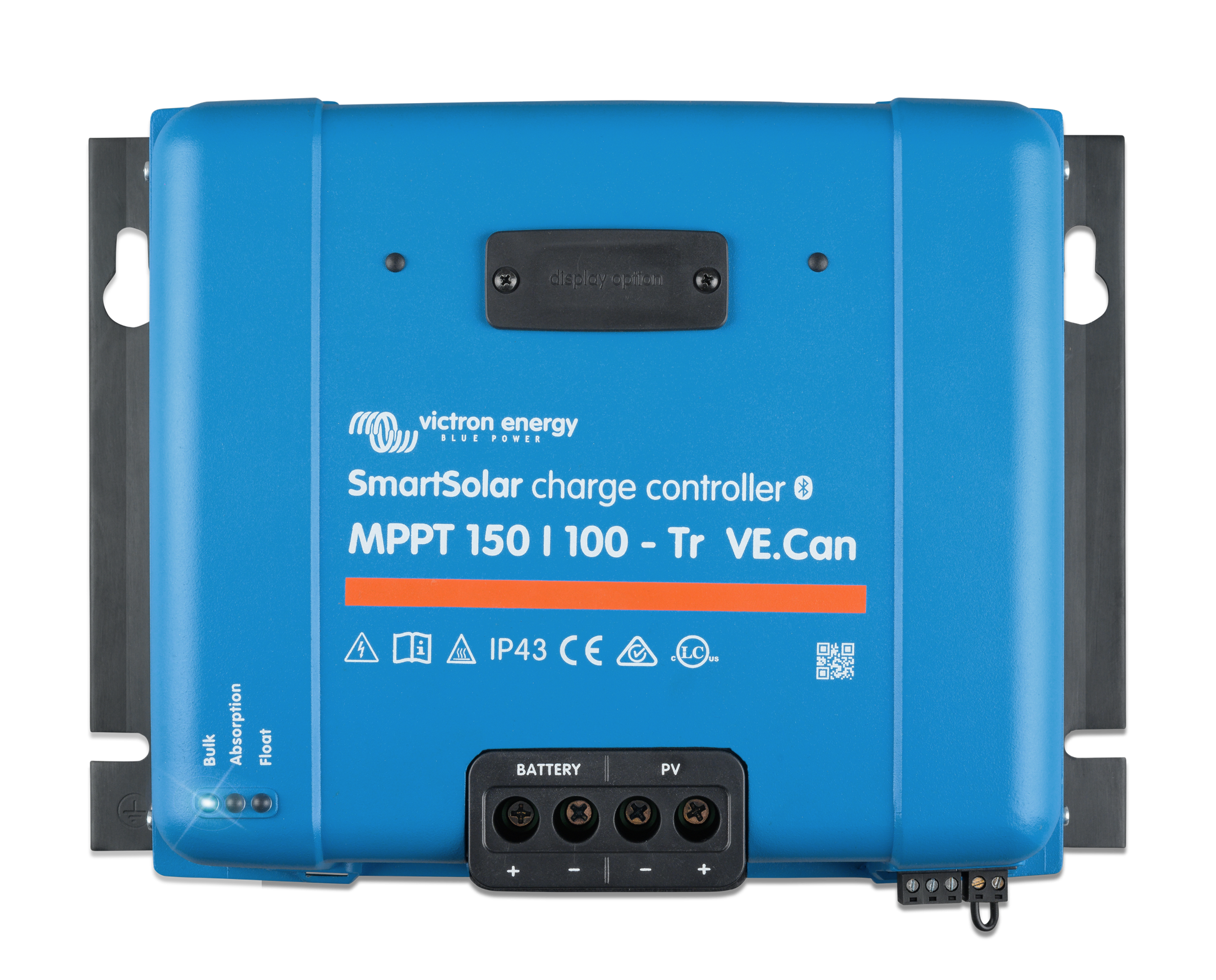

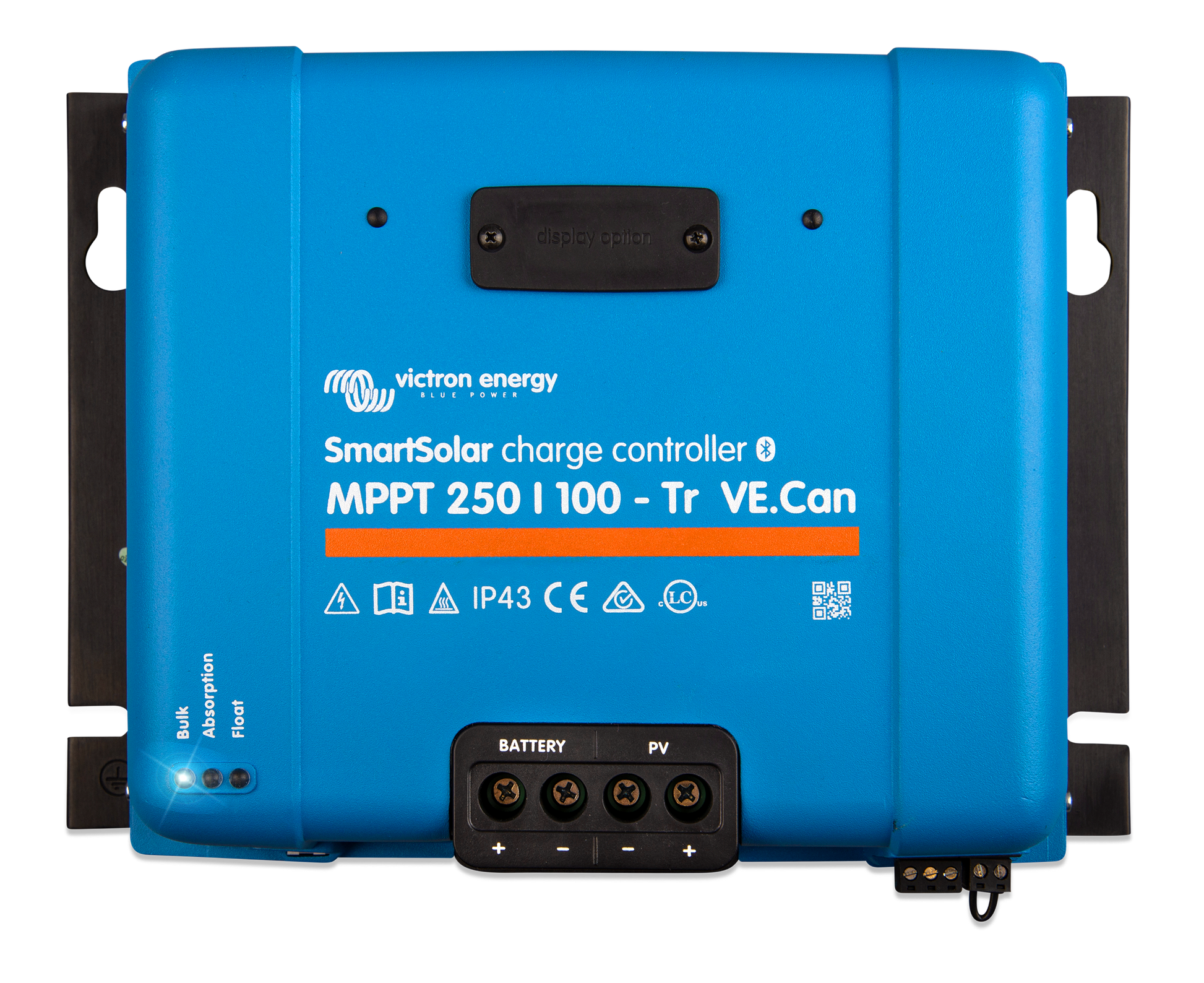

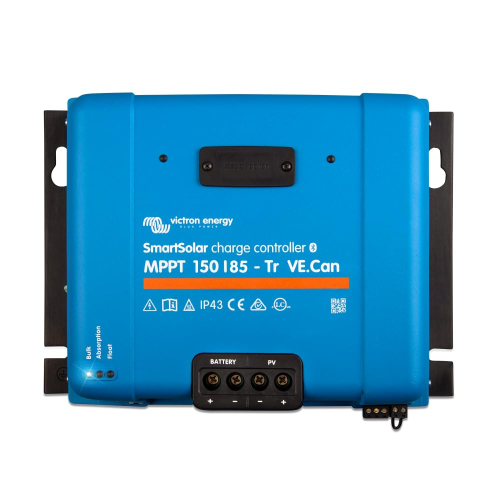

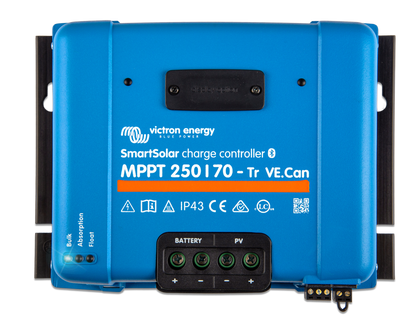

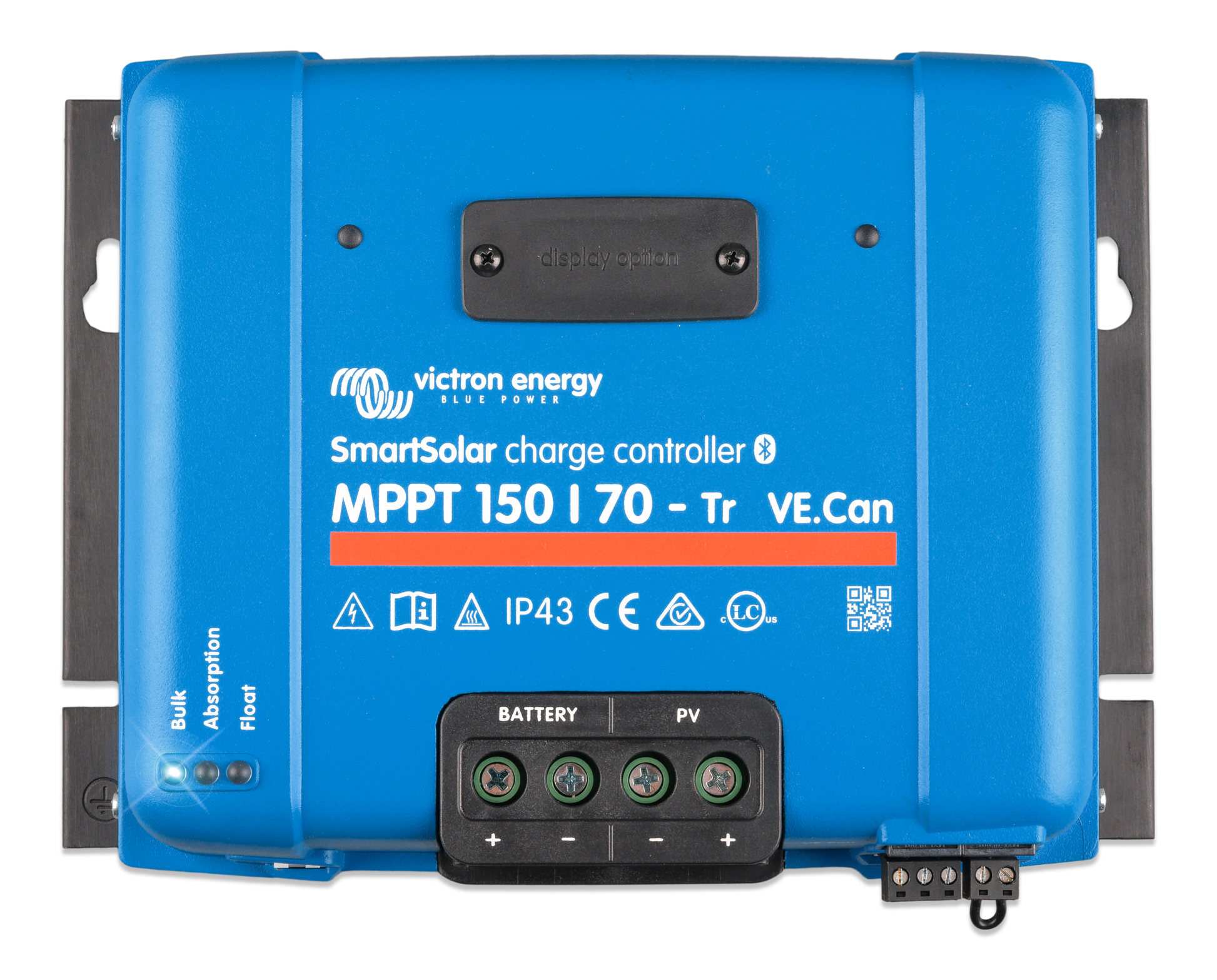

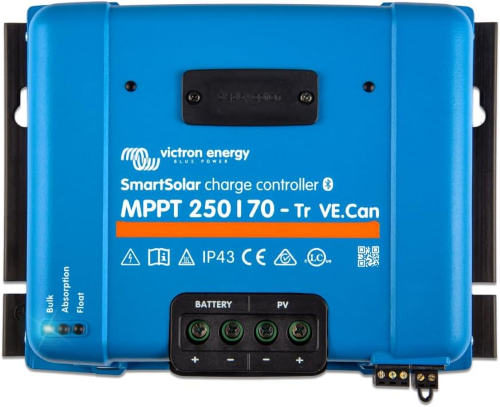

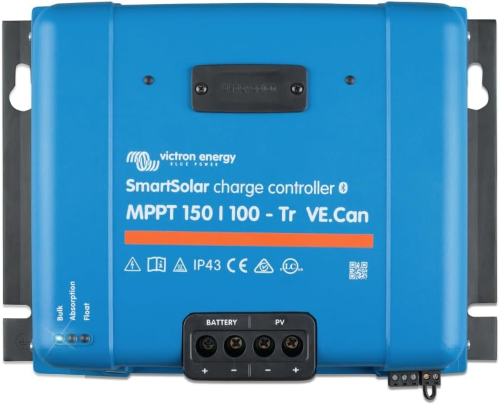

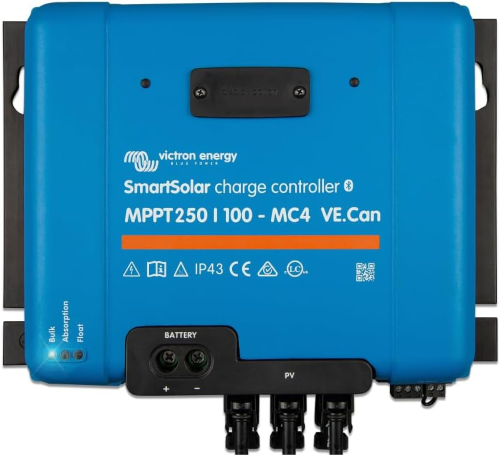

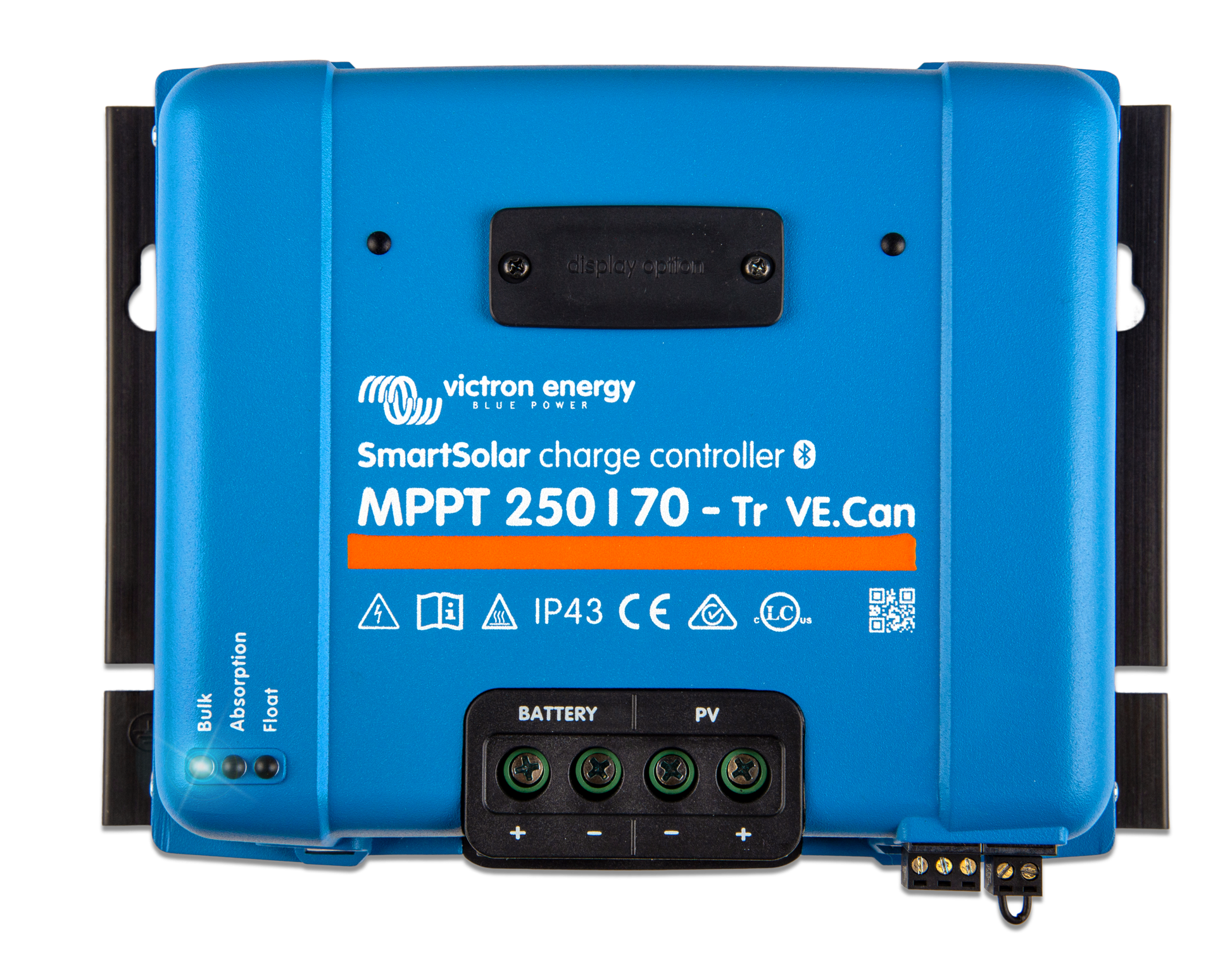

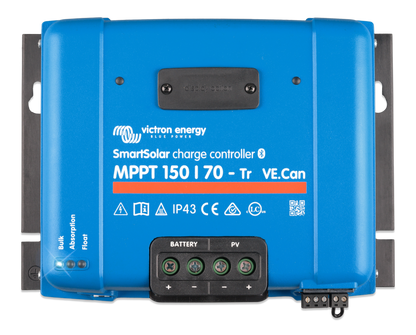

The Victron SmartSolar MPPT VE.Can series adds CAN bus networking to the SmartSolar platform, enabling synchronized parallel operation of up to 25 charge controllers on a single battery bank. Available in 150V and 250V PV input models with 70A, 85A, and 100A charge ratings, these controllers deliver up to 5,800W per unit on 48V systems.
Fan-cooled design maintains full output up to 40°C. VE.Can (RJ45), VE.Direct, and built-in Bluetooth provide multiple communication paths for system integration. The synchronized charge algorithm ensures even current distribution across parallel units, preventing battery imbalance in large systems.
Designed for multi-controller commercial installations where coordinated charging across large PV arrays is critical. Used in Alchemy industrial power systems with Lynx distribution and Cerbo GX monitoring.
