Talk to an EngineerTechnical Specifications
| Type | DC distribution busbar with cover |
|---|---|
| Max Current | 150A, 250A, or 600A (model dependent) |
| Max Voltage | 70 V |
| Configurations | 2P / 4P / 6P / 8P with 6–20 studs (model dependent) |
| Busbar Material | Tin-plated copper |
| Base Material | ABS / polycarbonate (UL 94 V-0 base) |
|---|---|
| Weight | 0.2 kg to 1.7 kg (model dependent) |
| Warranty | 5 years |
| Certifications | CE |

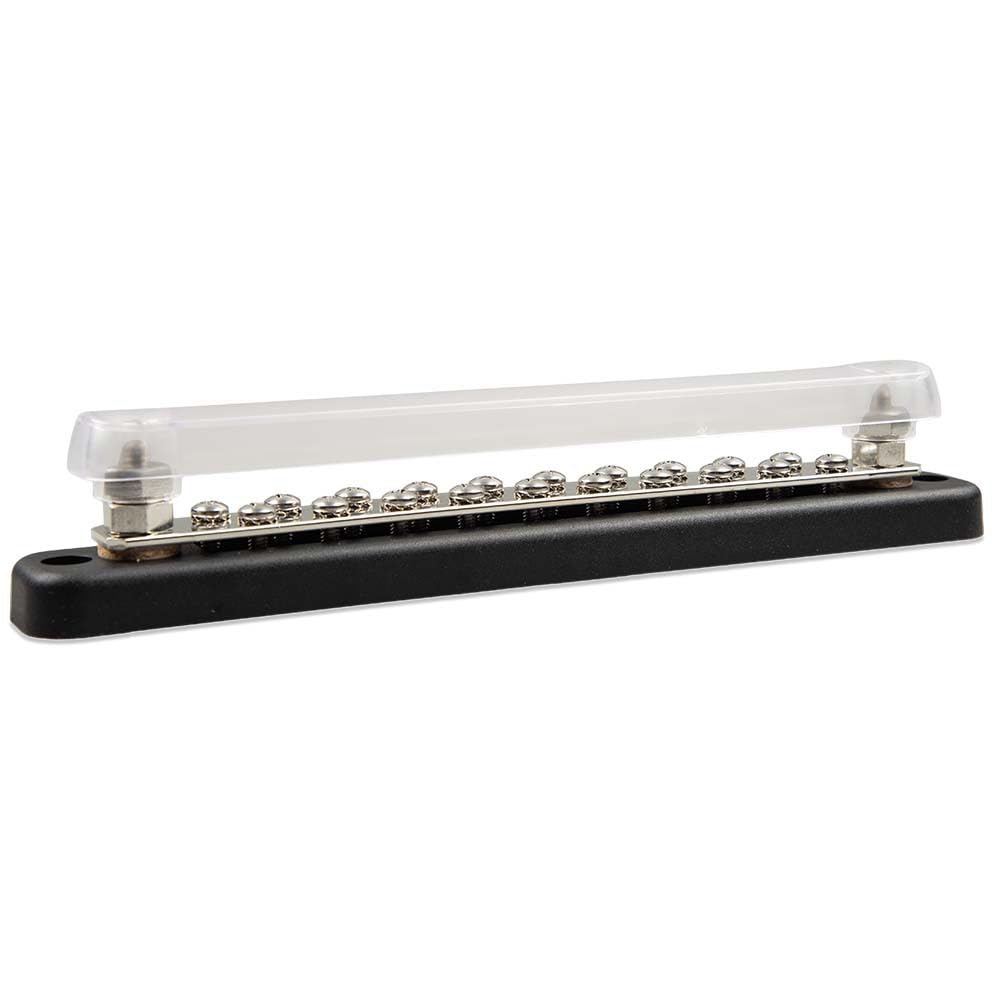

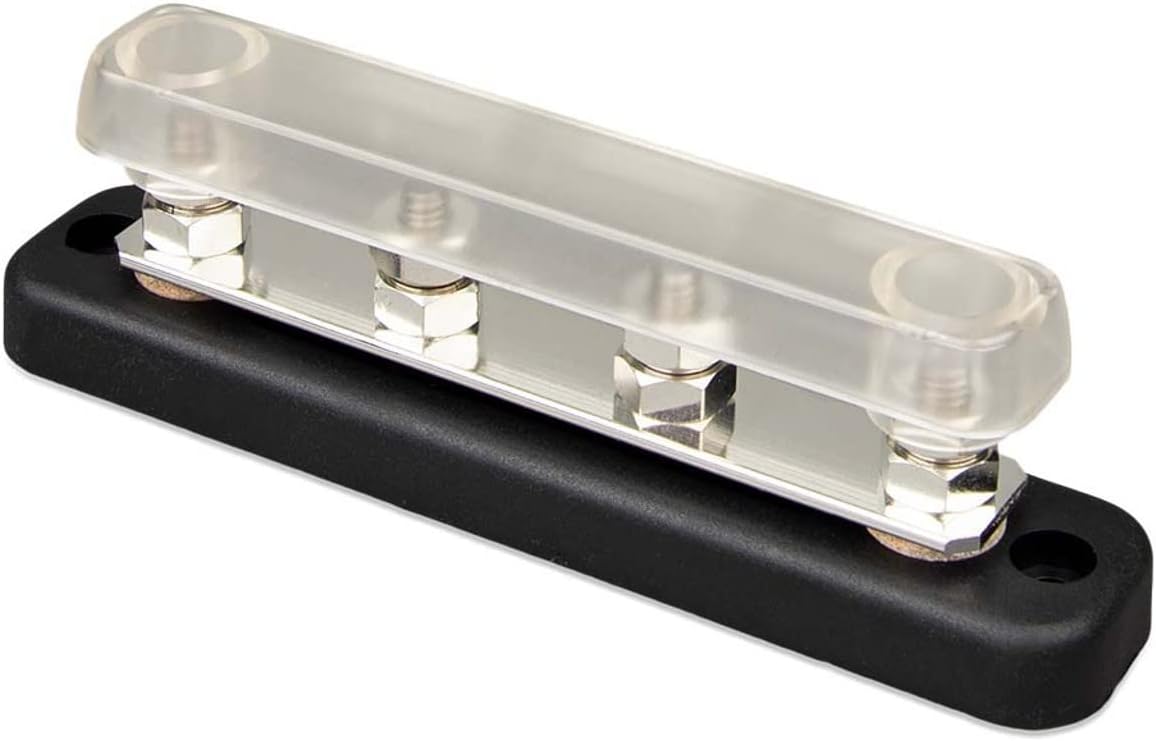

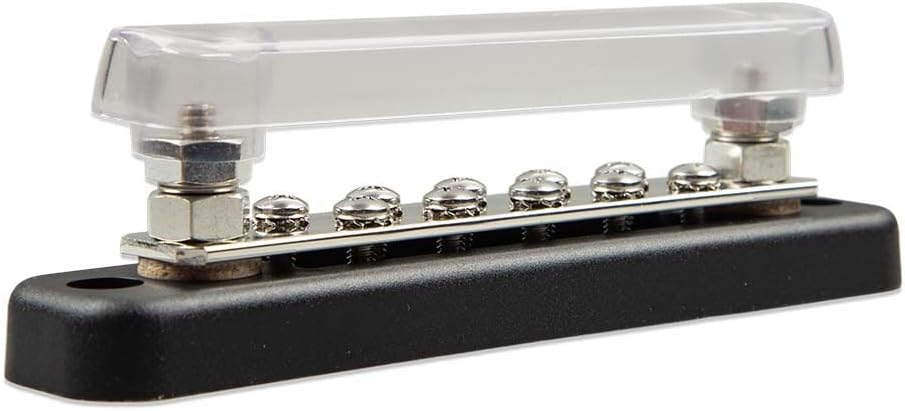

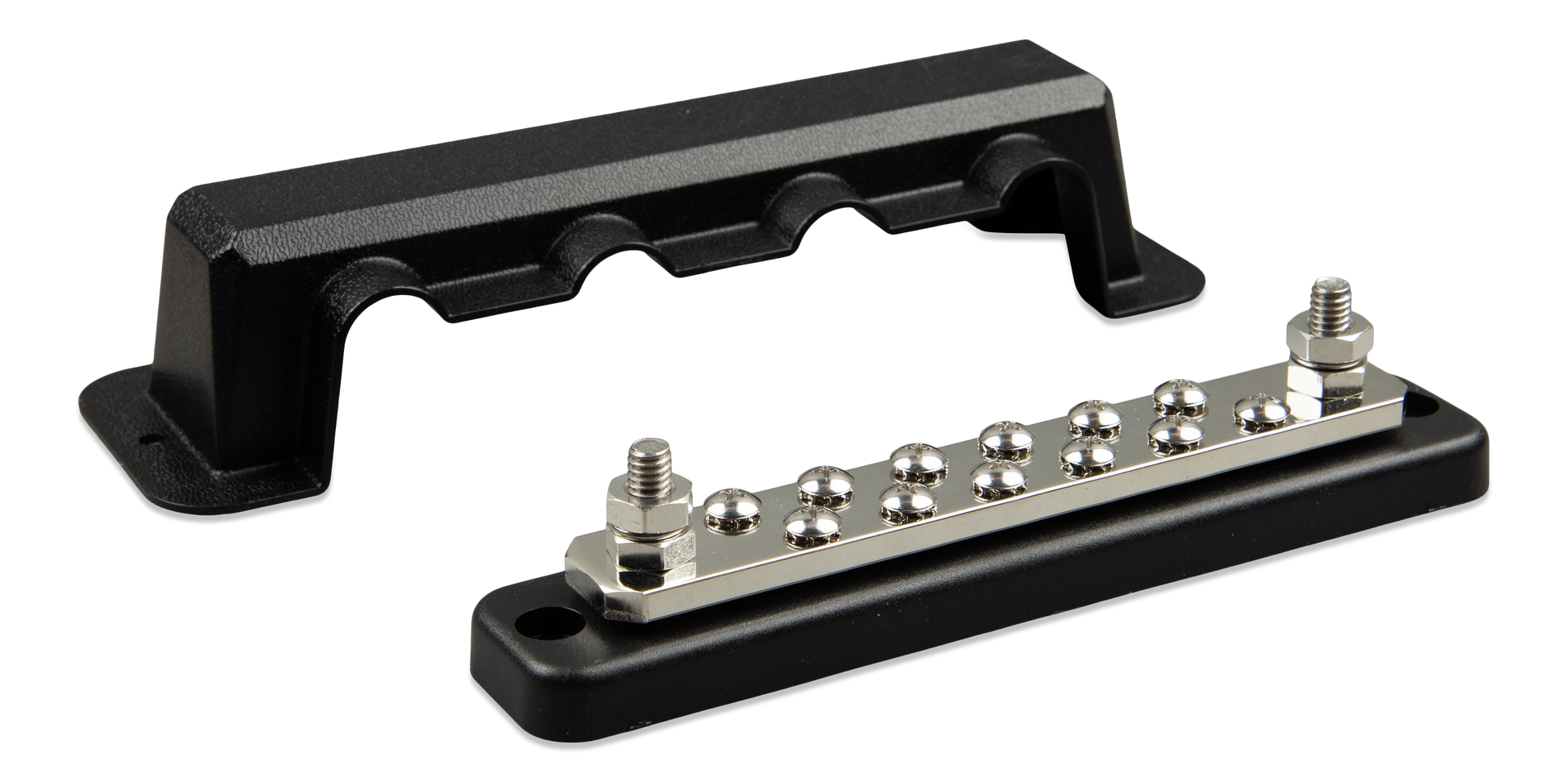

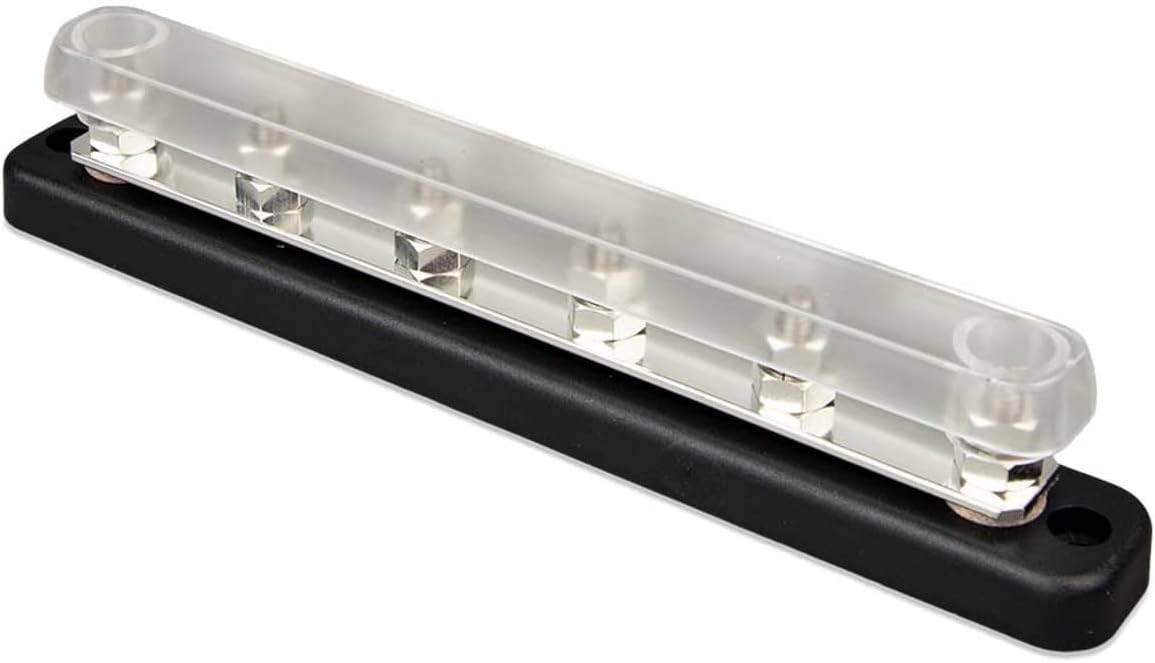

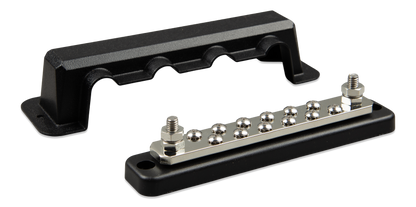

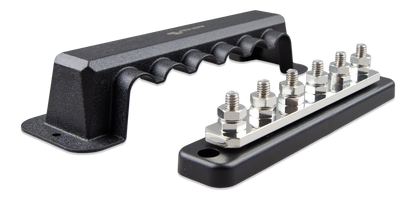

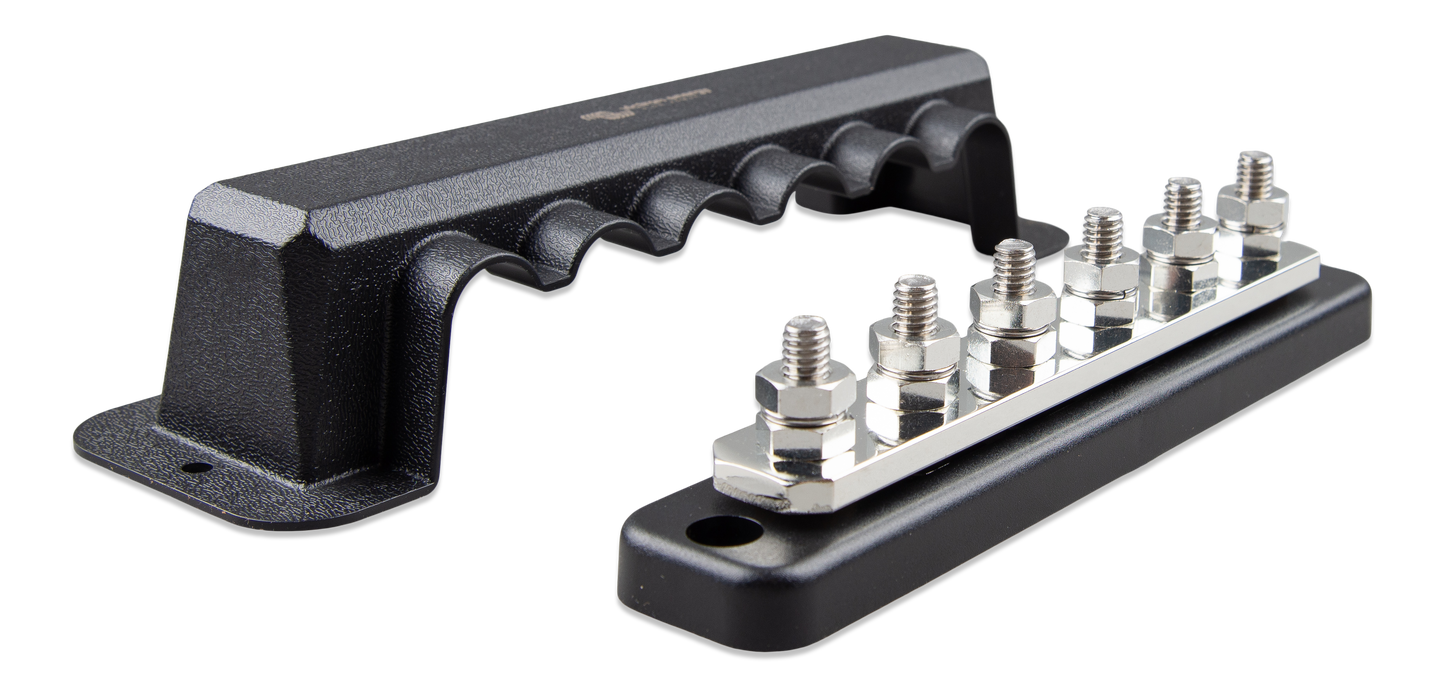

Insulated DC busbars with protective covers for clean power distribution.
Victron busbars consolidate multiple DC connections into a compact, insulated distribution point and include a protective cover for safety.
Available in 150A, 250A and 600A ratings with 2-pole, 4-pole, 6-pole and 8-pole configurations and varying screw counts.
Used in Alchemy industrial power systems for organized DC power distribution.
Common Applications
Shipping & Lead Time
Shipping & Lead Time
Ships from our Houston, TX warehouse. Most items ship within 1–3 business days.
Pickup available at 6501 Navigation Blvd, Suite E1, Houston, TX 77011. Usually ready in 2–4 days.
Freight shipping required for batteries and large enclosures. Contact us for a freight quote on orders over 150 lbs.
Warranty & Support
Warranty & Support
All Alchemy-branded products include a 2-year limited warranty covering defects in materials, assembly, and BMS performance under normal use.
Victron products carry the manufacturer’s standard warranty (typically 5 years).
For warranty claims or technical support, contact our engineering team.
