Talk to an EngineerTechnical Specifications
| Current Ratings | 125A, 325A, 500A, 800A |
|---|---|
| Voltage Rating | 80V DC |
| Interrupting Capacity | 2,700A |
| Fuse Type | Very fast-acting (Littelfuse CNNE series) |
| Terminal Size | M8 (5/16 in), silver-plated copper |
|---|---|
| Status Indicator | Visual inspection window |
| Compatibility | Lynx Shunt VE.Can M8 model |
| Certifications | UL Recognized (file E71611), RoHS compliant |
Very fast-acting DC fuse rated 80V / 125A-800A for the Lynx Shunt VE.Can M8 model.

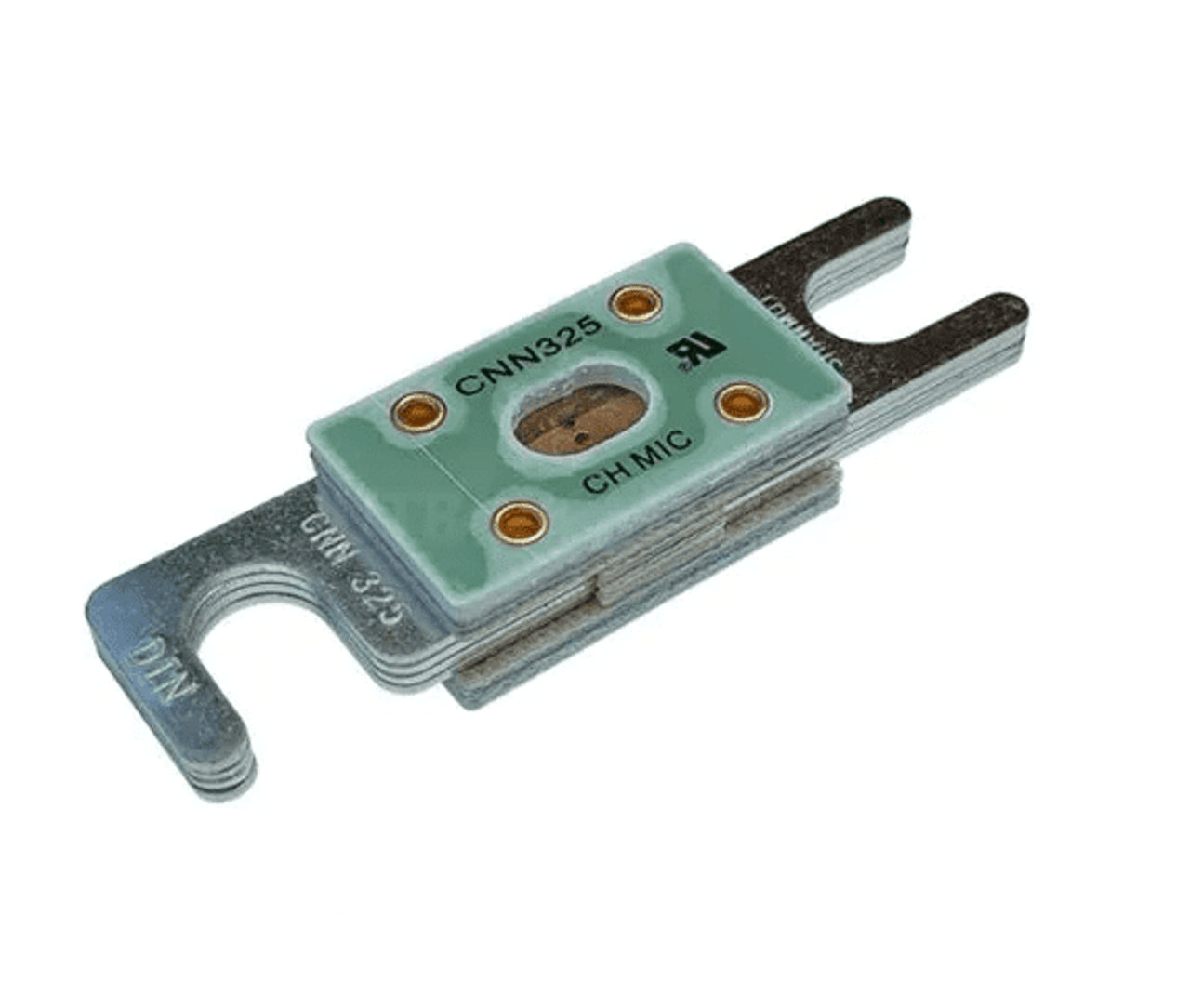

The Victron CNN fuse is a very fast-acting DC fuse (Littelfuse CNNE series) designed for high-current battery circuit protection. Available in 125A, 325A, 500A, and 800A ratings at 80V DC with a 2,700A interrupting capacity. Silver-plated copper M8 terminals ensure low-resistance connections. A visual inspection window allows quick fuse status verification without electrical testing.
Designed specifically for the Lynx Shunt VE.Can M8 model. UL Recognized (file E71611) and RoHS compliant.
Common Applications
Shipping & Lead Time
Shipping & Lead Time
Ships from our Houston, TX warehouse. Most items ship within 1–3 business days.
Pickup available at 6501 Navigation Blvd, Suite E1, Houston, TX 77011. Usually ready in 2–4 days.
Freight shipping required for batteries and large enclosures. Contact us for a freight quote on orders over 150 lbs.
Warranty & Support
Warranty & Support
All Alchemy-branded products include a 2-year limited warranty covering defects in materials, assembly, and BMS performance under normal use.
Victron products carry the manufacturer’s standard warranty (typically 5 years).
For warranty claims or technical support, contact our engineering team.
