Talk to an EngineerTechnical Specifications
| Type | Intelligent battery combiner (relay) |
|---|---|
| Nominal Voltage | 12V/24V auto (24V/48V on Cyrix-i 24/48) |
| Continuous Current | 120A to 400A (model dependent) |
| Cranking Current | 180A to 500A (model dependent) |
| Peak Current | up to 2,000A |
| Operation | Automatic voltage-sensing with trend detection |
|---|---|
| Protection Rating | IP54 |
| Weight | 0.1 kg to 0.9 kg (model dependent) |
| Warranty | 5 years |
| Certifications | CE |

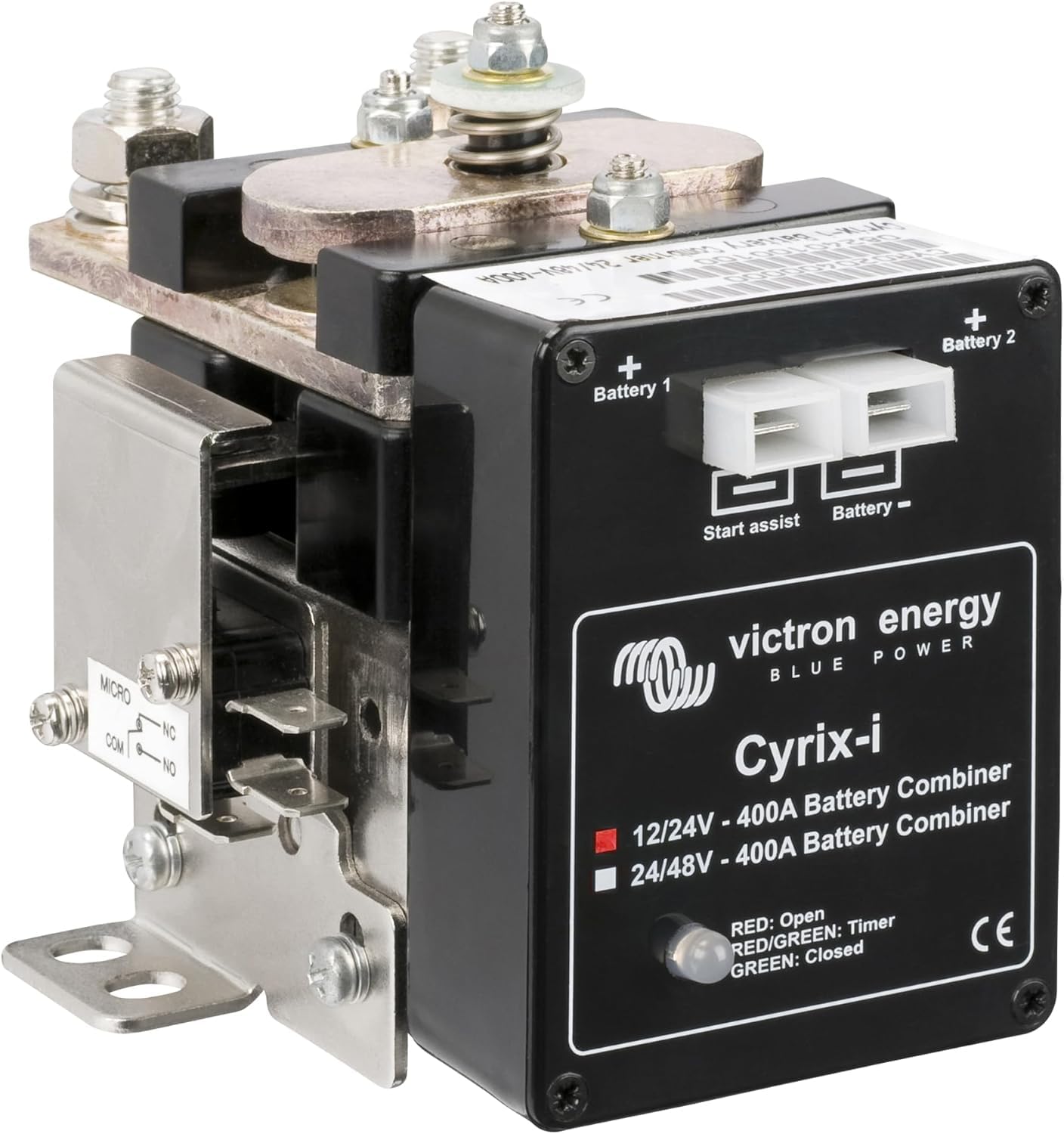

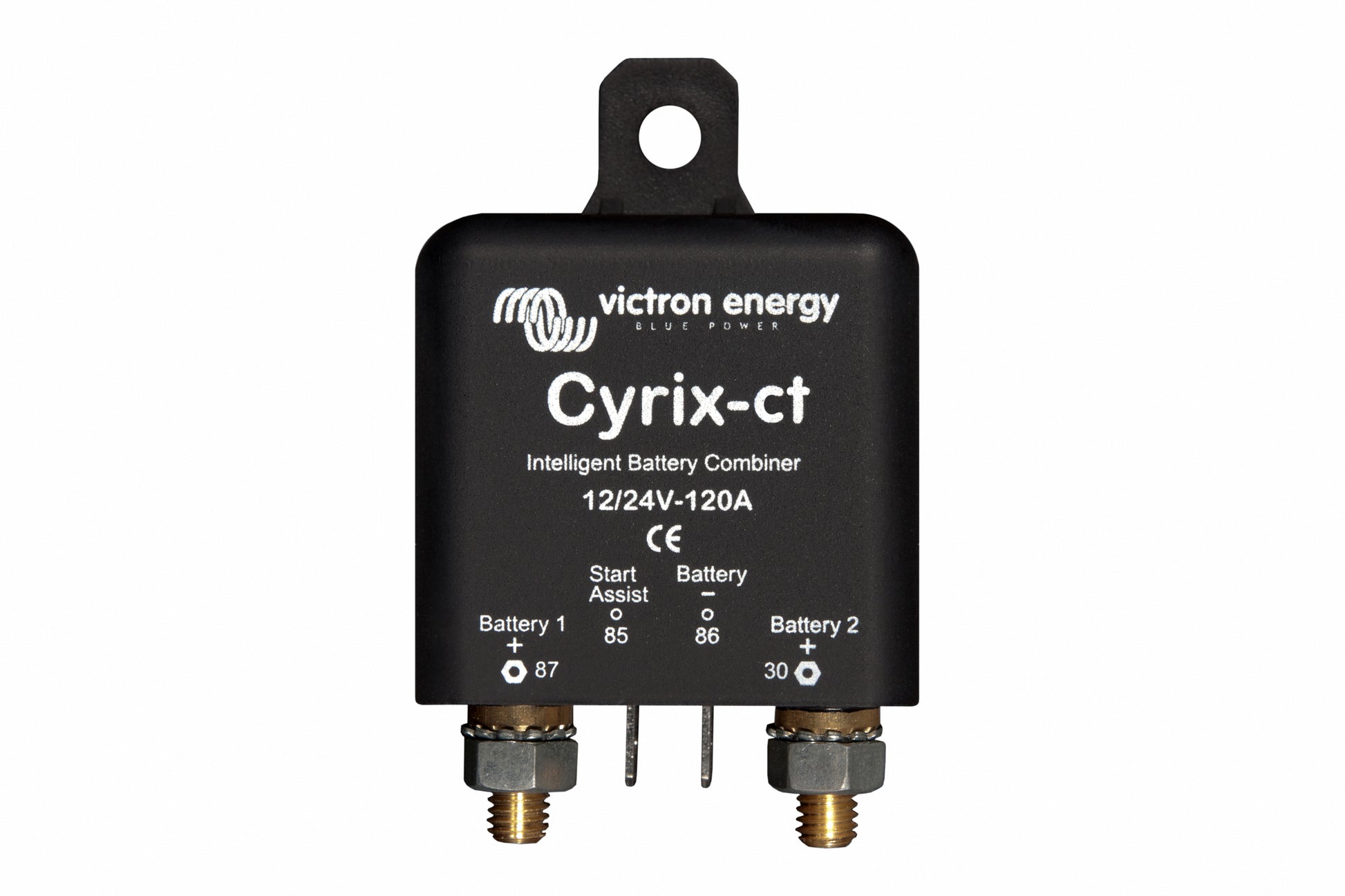

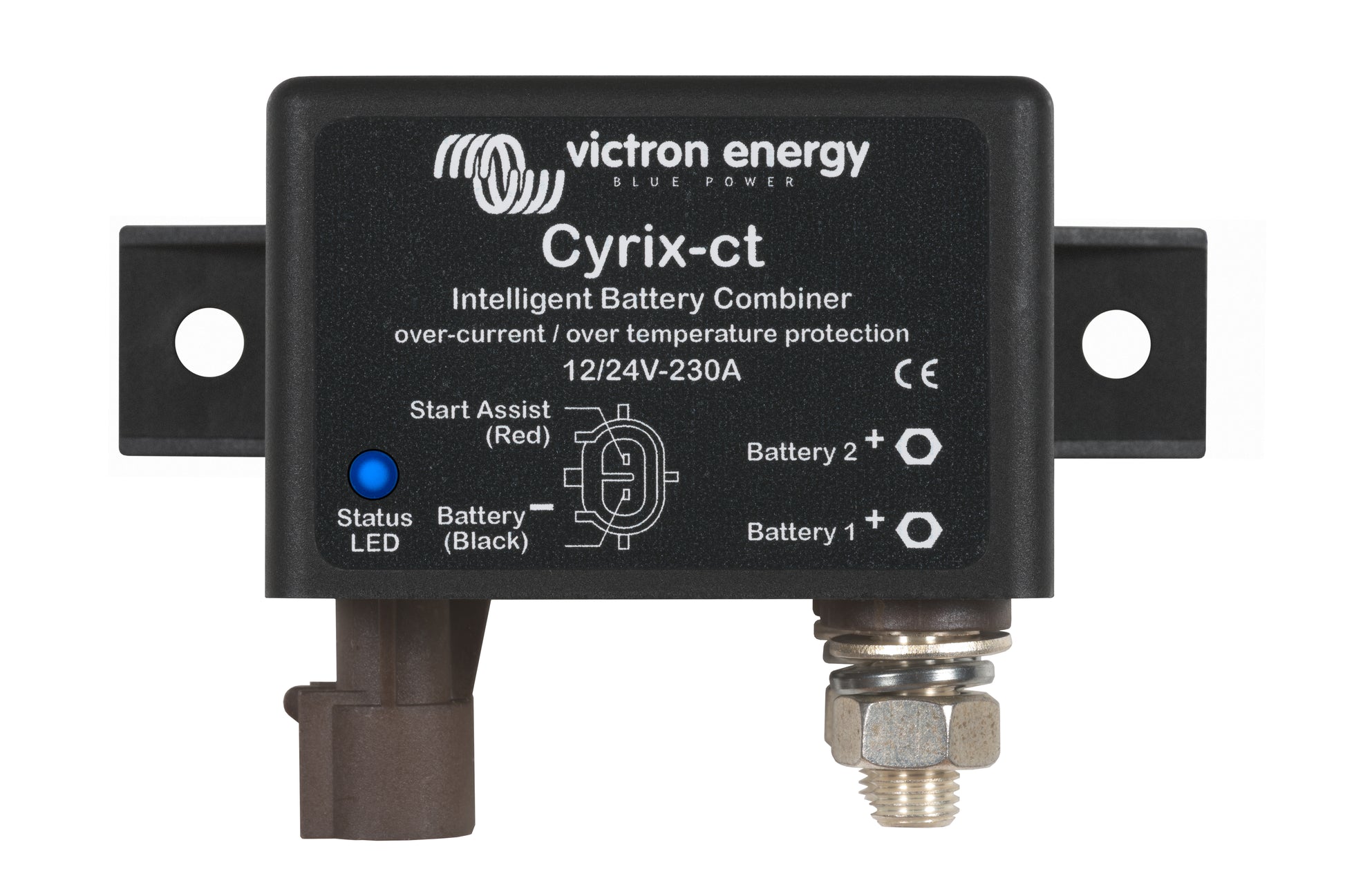

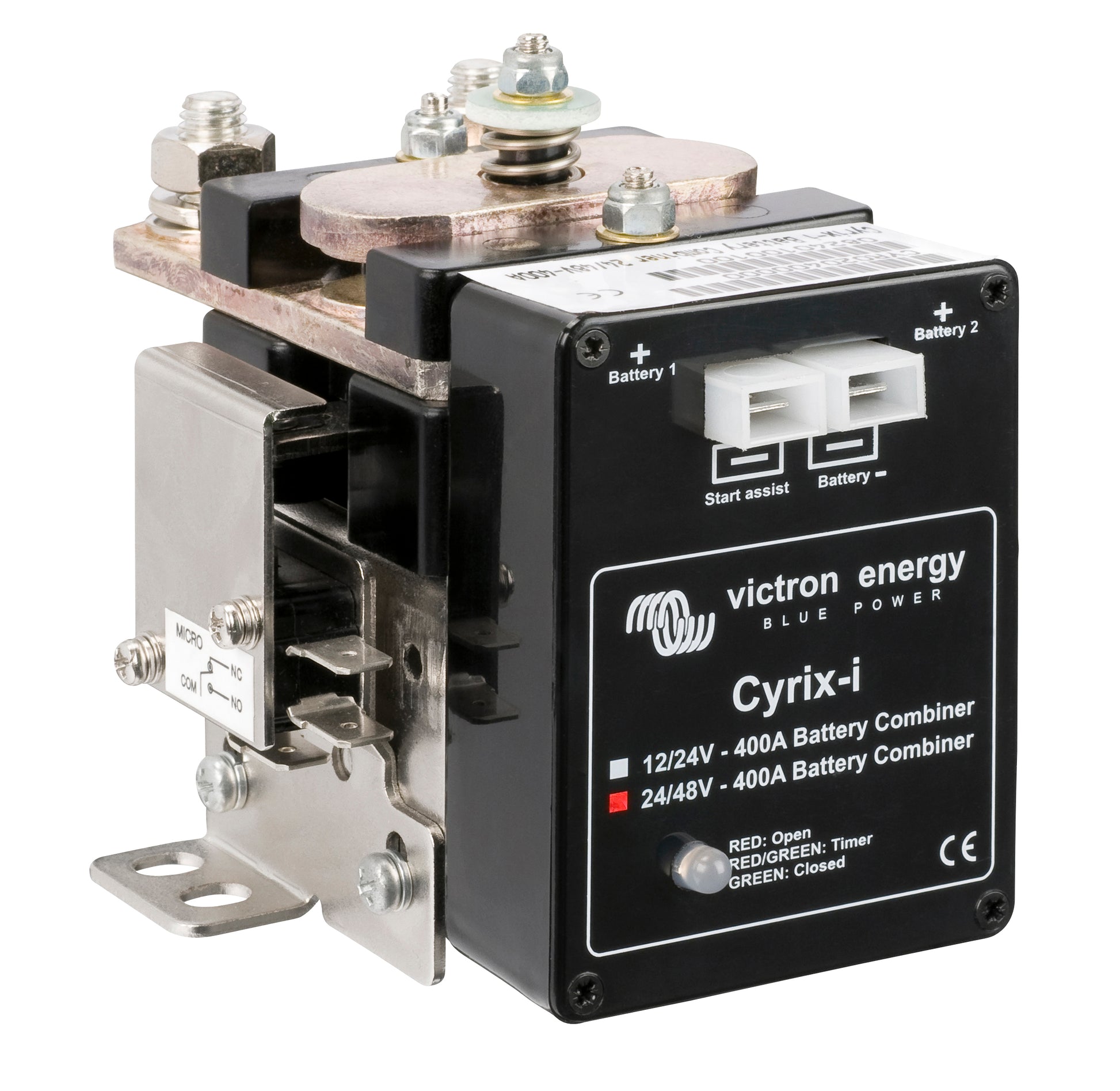

Victron Cyrix intelligent battery combiners for automatic parallel charging.
The Cyrix range are microprocessor-controlled battery combiners that automatically connect a starter and auxiliary battery in parallel when either reaches a preset charge voltage, then disconnect them under load or when voltage drops.
Fully sealed and available in 120A, 230A, and 400A ratings for 12/24V and 24/48V systems, they combine banks only when needed, with no manual switching or diode losses.
Used in Alchemy mobile and off-grid power systems for dual-battery charging, starter-battery isolation, and automatic bank management.
