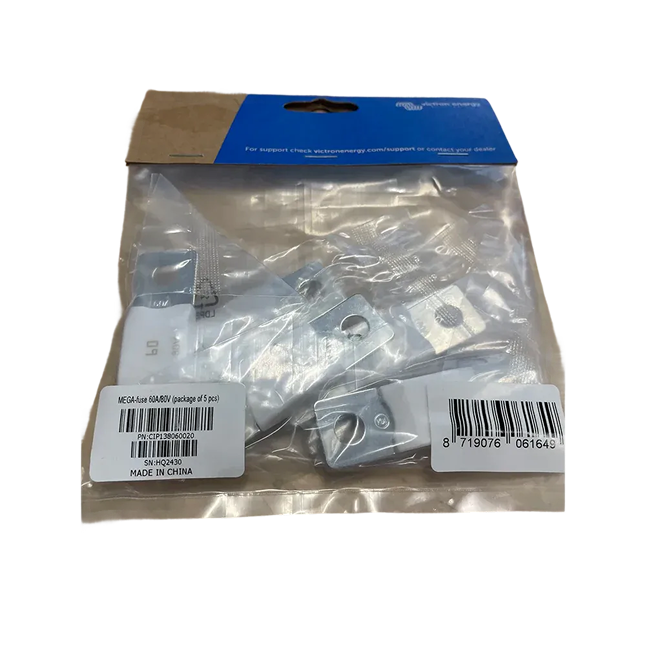

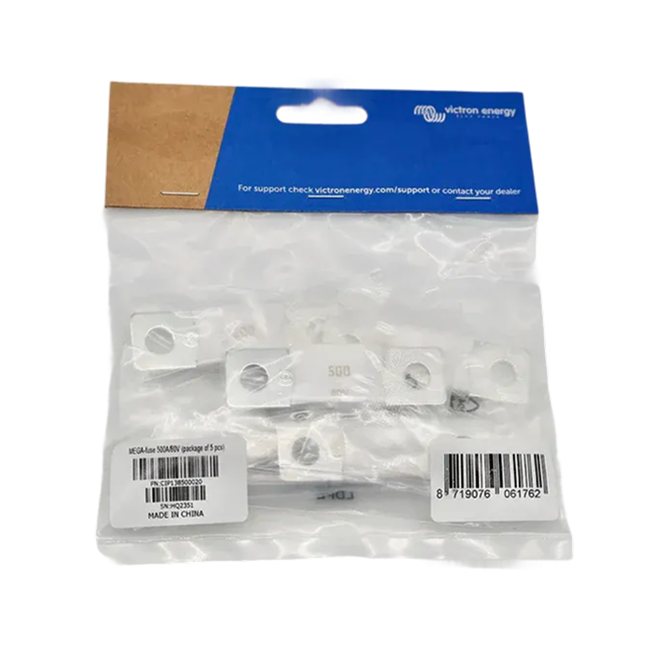

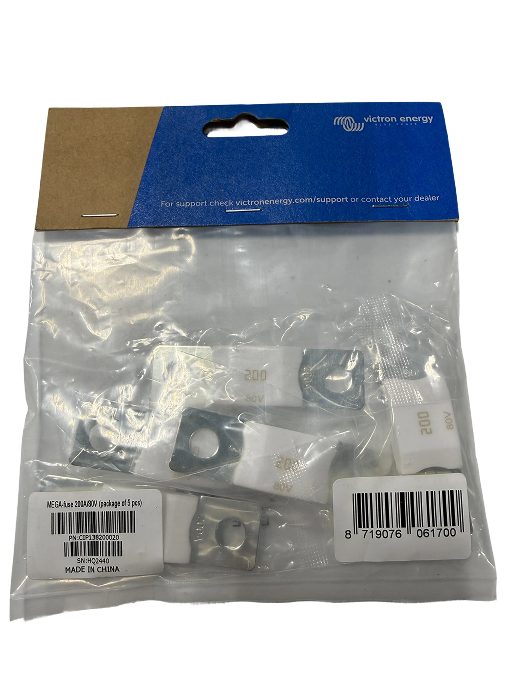

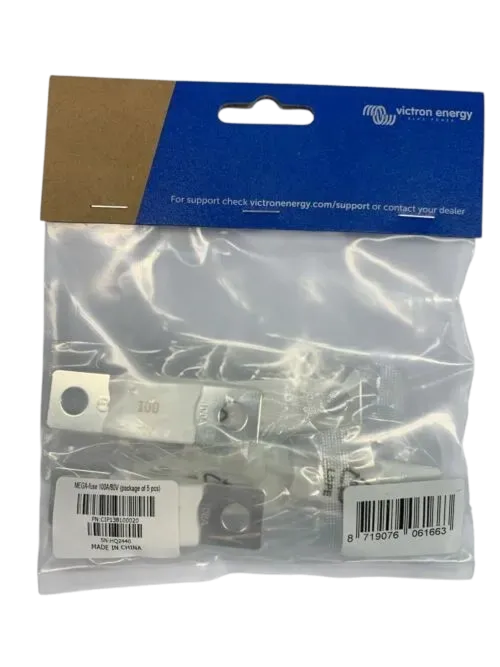

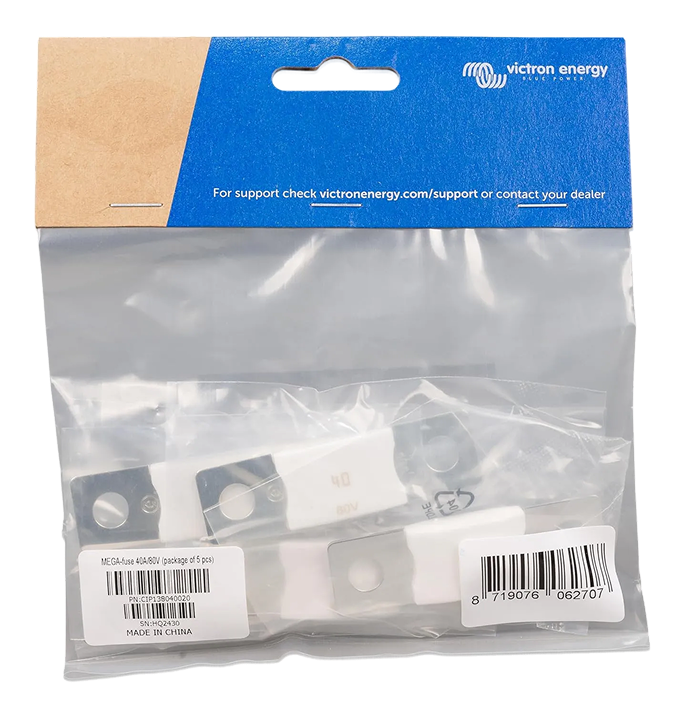

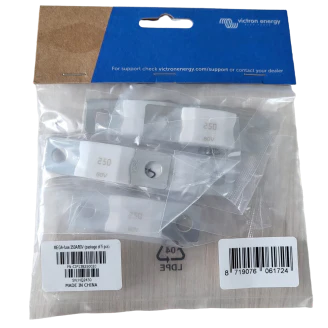

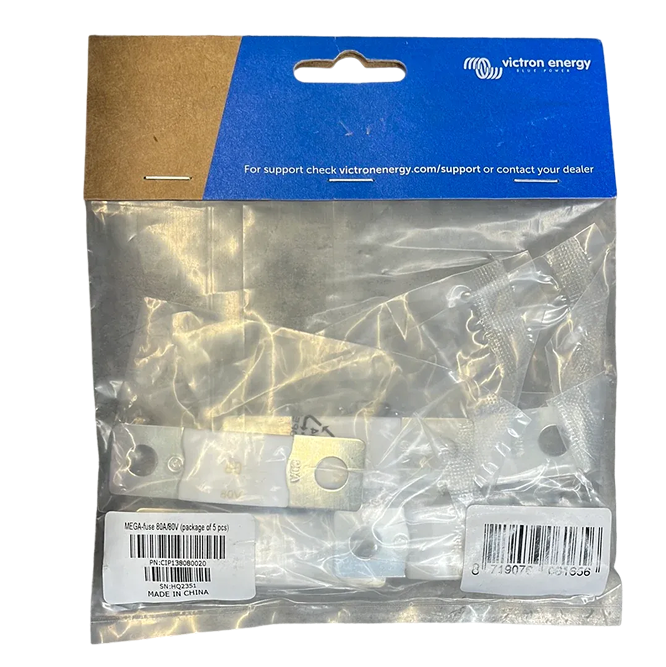

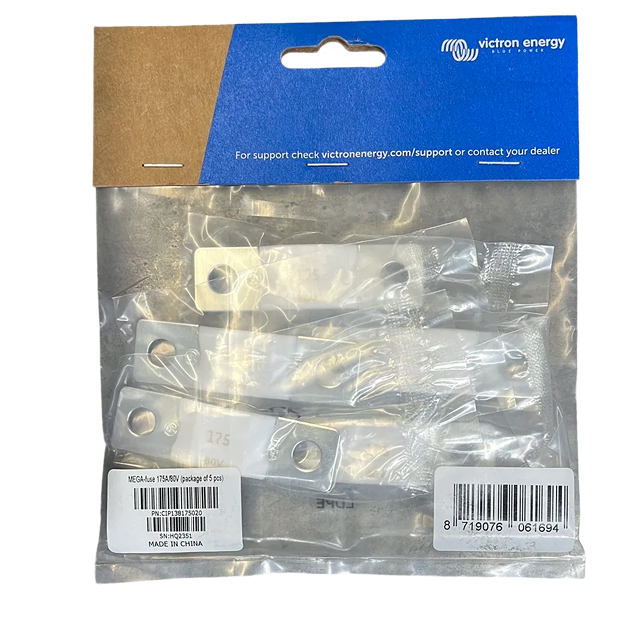

Victron MEGA Fuse (5 pack)

$46.75 USD

Sale Sold out

Shipping calculated at checkout.

Victron Energy

SKU:CIP138040020

CE NDAA RoHS

Ships from Houston, TX. In-stock items ship within 1-2 business days.

Authorized Victron Energy dealer. Full manufacturer warranty.

View full details

Need help designing a system?

Our engineers spec complete Victron power systems for your application: batteries, inverters, MPPT, and monitoring.

Talk to an Engineer

Technical Specifications

Current Ratings Available	60A through 500A (12 sizes available)
Voltage Rating	32V DC (12/24V systems) or 58V DC (48V systems)
Interrupting Rating	2,000-2,500A
Fuse Type	Slow-blow, bolt-down

Terminal Size	M8
Compatibility	Lynx Distributor (4 slots), Lynx Shunt VE.Can M10, MEGA fuse holders
Weight (per fuse)	~110 g
Dimensions	70 x 19 x 6.4 mm

Slow-blow bolt-down DC fuses for Lynx Distributors and high-current DC circuits. 60A-500A ratings, sold in 5-packs.

Victron MEGA fuses provide high-amperage circuit protection for battery banks, inverter feeds, charge controller circuits, and other heavy-load DC wiring. Available in 12 sizes from 60A to 500A with M8 bolt-down terminals. Rated 32V DC for 12/24V systems or 58V DC for 48V systems, with 2,000-2,500A interrupting capacity.

Designed for the Victron Lynx Distributor (4 fuse slots per unit), Lynx Shunt VE.Can M10 model, and standard MEGA fuse holders. Slow-blow characteristic prevents nuisance tripping from motor inrush currents and inverter startup surges while still protecting against sustained overcurrent faults. Sold in 5-packs.
